Technical Features
| CPU | Intel® Atom x7000RE series processors (Code Name : Amston Lake); Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W; Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W; Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W |
|---|---|
| Chipset | Intel ® SoC |
| RAM | 1 x 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz |
| LAN | 2 x Intel® I226V/IT (10/100/1000/2500Mbps) |

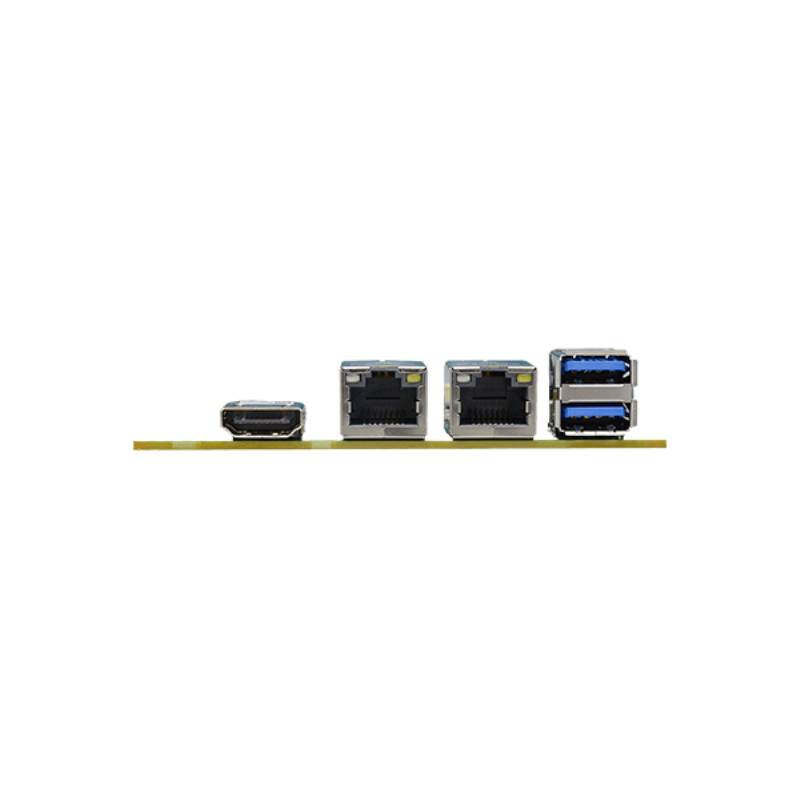

| I/O | 2 x USB 3.2 Gen2; 2 x USB 2.0 (1.00mm pitch, 1 x 8-pin header); 2 x RS-232/422/485 (1.00mm pitch, 2 x 9-pin header); 1 x HDMI resolution up to 4096×2160 @24Hz; 1 x LVDS/eDP (Opt.) dual channel 18/24-bit, resolution up to 1920×1200 @60Hz eDP: resolution up to 2560×1440 @ 60Hz (2 Lane); 1 x 8-bit DIO (1.00 pitch, 1 x 10-pin header); 1 x SMBus/I2C (Opt.) |
| Storage | – |
| Expansion | 1 x M.2 2230 E Key (PCIe 3.0 x1/USB 2.0), for Wi-Fi/BT; 1 x M.2 3042/2242 B Key (PCIe 3.0 x1/USB 3.2 Gen 1 x1/SATA 3.0) with 1 x Nano SIM slot for 4G/5G; 1 x M.2 2242 B key (PCIe 3.0 x2/USB 2.0/SATA 3.0), for storage |
| Operative range | -40° ÷ 85° C |
| Power | Single 12V (+/- 5%) DC |
| Notes | CE, FCC Class B, RoHS, UKCA Typically supports 10-Year CPU Life Cycle Until Q2’ 34 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process |
