2,5"

Products SBCs and Motherboards Embedded SBCs
 | 2,5

2,5"

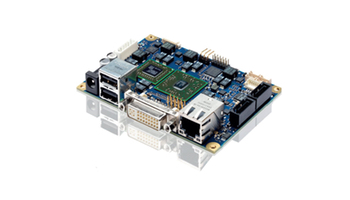

2,5" form factor, also known as Pico-ITX, Single Board Computers have smaller mechanical dimensions with respect to 3.5" SBCs, 100 x 72 mm only, making the integration in the final product even more easier.

8th Gen i3/i5/i7 Intel® Core

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
WL053
1 2 - 2 - 3 1 - - - 9-36V
WL051
2 2 - 2 - 3 1 - - - 12V

Intel® Atom Elkhart Lake

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
EPBC-1000
2 1 - 2 - 2 2 - - - 12V

Intel® Atom Apollo Lake

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
SOM-P101/SOM-P102
1 2 - 1 1 2 - - 1 12V
AL053
1 2 3 - - 1 - - 1 9-36V
AL051
2 2 2 - 1 1 - - 1 12V
AL05P
1 2 - 2 - 1 - - 1 PoE PD 48V Soon available
EPX-APLP
2 4 2 - - 2 1 - - - 12V

Intel® Atom Braswell

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
BW051
1 2 2 - - 2 - - 2 12V

NXP i.MX8

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
ND108T
2 1 2 - - - 1 - - 1 12V
M8M051
1 4 - 1 - 2 3 - - - 12V

Freescale i.MX6

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
FS053
2 4 - - - 2 - - 1 9-36V
FS051
1 5 - - - 3 - - 1 5V
