It is a great pleasure to present you the new EAC-5000-OOB, ideal for Vehicle computing and AMR applications.

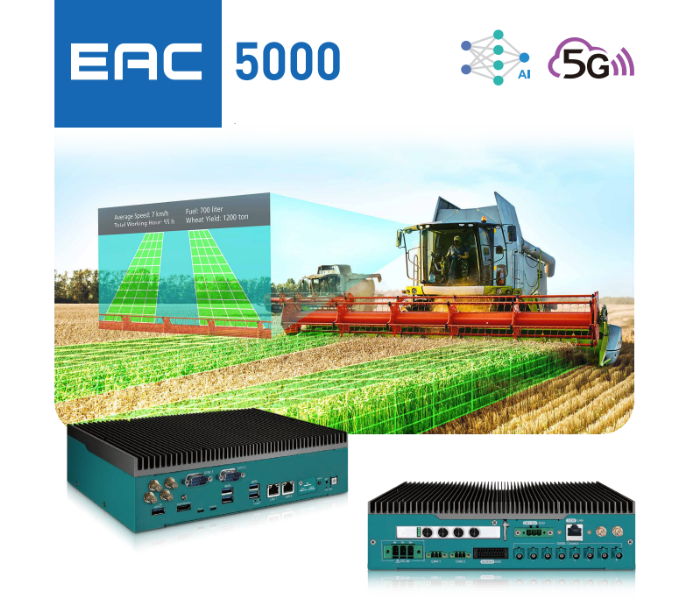

Vecow EAC-5000-OOB is powered by NVIDIA Jetson AGX Orin platform that features an Arm® Cortex®-A78AE CPU delivering up to 275 TOPS of AI performance and integrates an advanced NVIDIA Ampere architecture GPU with 64 Tensor Cores. It’s capable of delivering server-class performance for edge AI applications.
EAC-5000-OOB has integrated with OOB (Out-of-Band) remote management operation technology and brings powerful disaster recovery service onto the Edge AI applications.
As a hardware-based technology, the Out-of-Band management helps service providers effortlessly power ON/OFF devices remotely and bring unresponsive systems back to a working state.
Main features
- Advanced NVIDIA® Jetson AGX Orin™ platfrom delivers up to 275 TOPS AI performance
- The latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
- Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
- 1 PCIe Gen4 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
- 2 Isolated CAN Bus support Flexible Data-rate, 2 COM RS-232/422/485
- 2 GigE LAN, 5 USB 3.1, 1 Digital Display supports 8K60
- Support disaster recovery by Out-of-Band management
- DC 9V to 50V wide range power input, Ignition Power Control
Feature highlights
Power-efficient AI Productivity
- NVIDIA Jetson AGX Orin Platform, max 12-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 275 TOPS AI performance with power configurable between 15W and 60W
- The latest NVIDIA Ampere architecture GPU with max 2048 NVIDIA CUDA cores and 64 Tensor cores
- 2x NVIDIA Deep Learning Accelerate Engines
- LPDDR5x Memory, up to 64GB Up to 8X performance of NVIDIA Jetson AGX Xavier platform
Flexible Integration
- Supports GMSL Gen 2/Gen 1 automotive cameras via 8 FAKRA-Z connectors
- 2 GigE LAN, 2 COM RS-232/422/485, 2 External SIM Socket
- 5 USB 3.1, up to 10Gbps data transfer
- Multiple Compact M.2 Socket : M.2 Key B, M.2 Key E, M.2 Key M
- 1 PCIe Gen 4 x8 expansion slot supports optional multiple 10GigE LAN/PoE LAN/USB connections
- 8K60 Display, Video Encode, Video Decode
Mobile Availability
- Compact Size, Rugged Designs
- With power configurable between 15W and 60W, high power efficiency
- Multiple 5G/4G/LTE/WiFi/BT/GPS connection supports always-on wireless communication supporting seamless data delivery
- CAN Bus and FAKRA-Z for Autoware applications
- Software Ignition Control optimized for in-vehicle operation
- Anti-shock, Anti-vibration
Industrial-grade Reliability
- Fanless -20°C to 70°C operation
- DC 9V to 50V wide range power input
- 16-mode Ignition Power Control
- 2 Isolated CAN Bus, CAN FD supported
- 16 Isolated DIO : 8 DI, 8 DO
- Optional Rugged X-coded GigE LAN
- EN50155 and EN50121-3-2 compliant
- Military-grade MIL-STD-810G Compliant
