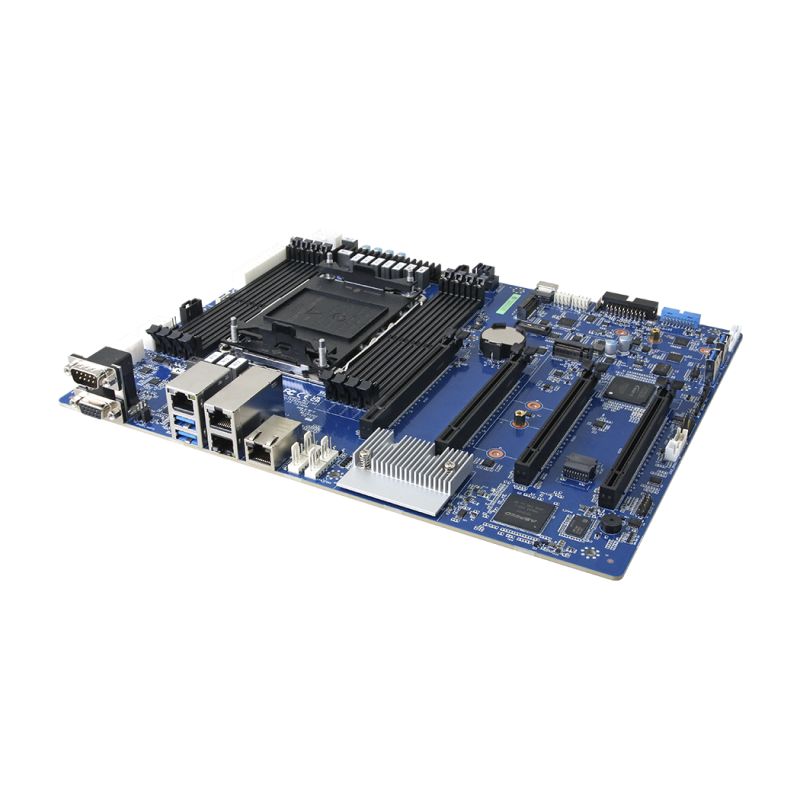

Technical Features
| CPU | Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W) |
|---|---|
| Chipset | |
| RAM | 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM up to 2TB |

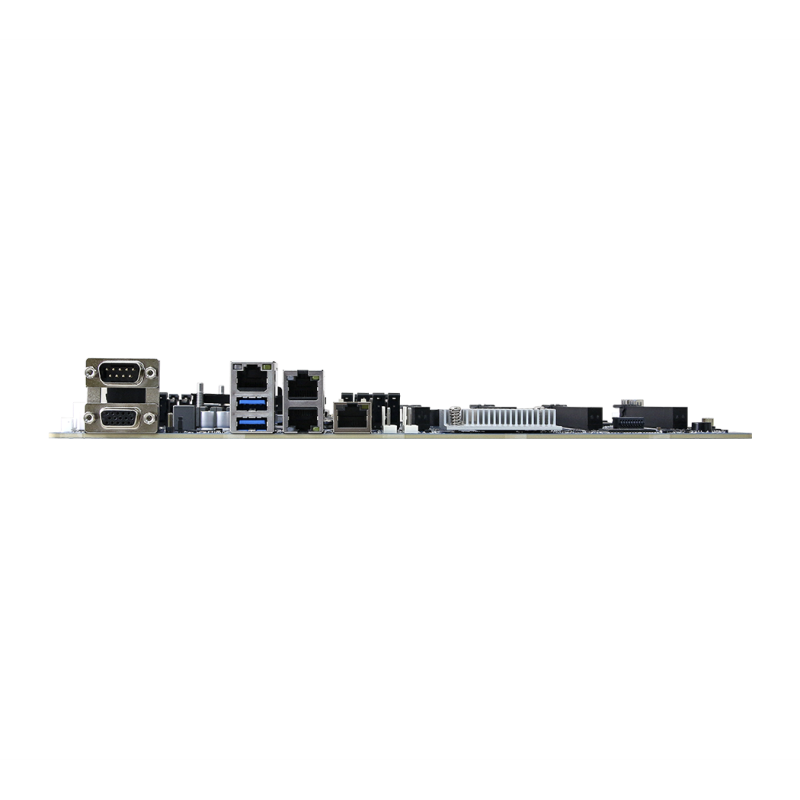

| LAN | 4 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 and 3 ports for 10GbE |
| I/O | 2 x USB 3.2 Gen1 ports; 4 x USB 3.2 Gen1 internal ports; 1 x RS232 port; 1 x VGA; 5 x SATA III (1 x Mini-SAS HD 4i (for 4 xSATA only) & 1 x 7pin SATA connector); 1 x Slim SAS 4i (SFF-8654) connector CMOS Battery |
| Storage | 2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110form factor |
| Expansion | 4 x PCIe Gen5 x16 slots Slot 1, PCIe Gen5 x16 Slot 2, NA Slot 3, PCIe Gen5 x16 Slot 4, NA Slot 5, PCIe Gen5 x16 Slot 6, NA Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU) |
| Operative range | 0° ÷ 55°C to support up to 350W TDP CPU 0° ÷ 55°C to support up to 270W TDP CPU |
| Power | ATX |
