Technical Features
| CPU | LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 125W) |
|---|---|
| Chipset | Intel® R680E |
| RAM | 4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU) |
| LAN | 2 x Intel® i225LM 2.5G |

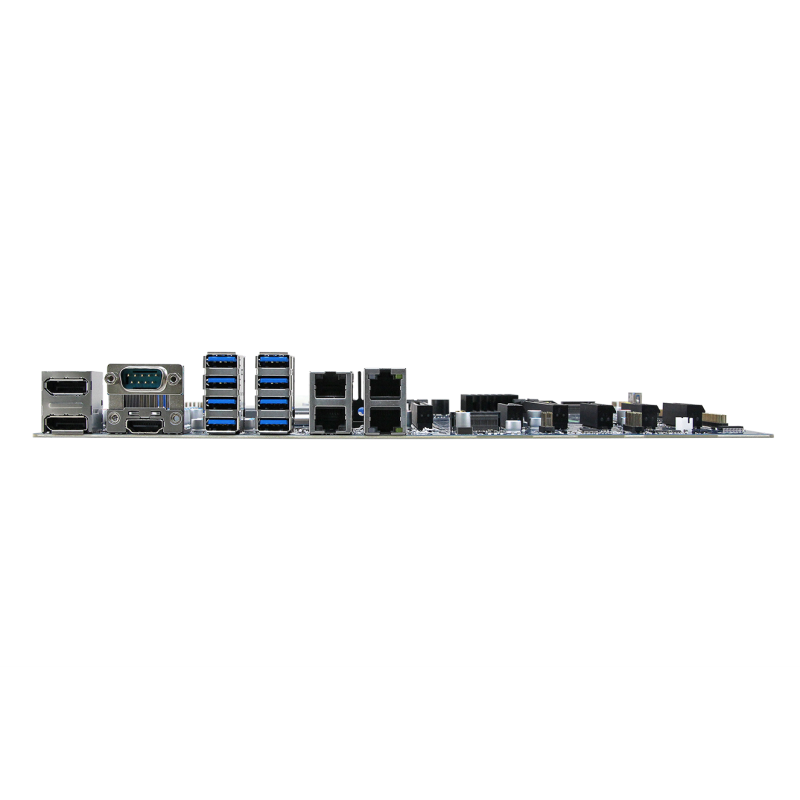

| I/O | 8 x USB 3.2 Gen2; 1 x USB 3.2 Gen1 Vertical Type A; 5 x USB 2.0; 1 x RS232 on rear I/O; 2 x RS232/422/485 by pin-header; 3 x RS232 by pin header; 2 x DP (DP1.4a): Max (Combined): 7680 x 4320@60Hz (DP++ Via dongle: 1920 x 1080@60 Hz); 1 x HDMI (HDMI 2.0b): Max Resolution 4K x 2K@60Hz (With HDR); 1 x 16-bit GPIO |
| Storage | 2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110; 4 x SATAIII0 – Support RAID 0, 1, 5, 10 |
| Expansion | 2 x PCIe x16 slots for 1 x PCIe x16 Gen5 default or 2 x PCIe x8 Gen5; 2 x PCIe x4 Gen4; 1 x PCIe x4 Gen3; 1 x PCIe x4 slot for 1 x PCIe x2 Gen3 |
| Operative range | 0÷55°C (32~131°F) |
| Power | AT/ATX (Default Setting: ATX) |
| Notes | CE, FCC Class, RoHS Compliant |
