Technical Features
| CPU | 3rd Gen Intel® Xeon® Scalable Processors |
|---|---|

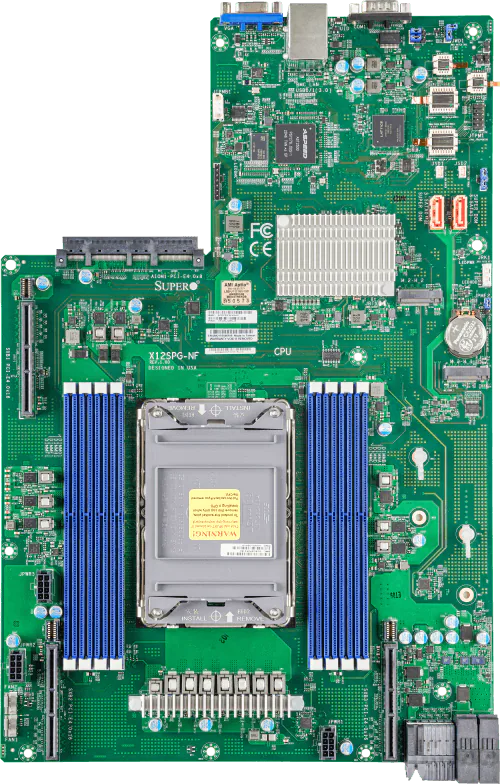

| Chipset | C621A Chipset |
| RAM | 8 DIMM slots Up to 4TB: 8x 256 GB DRAM; Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series |

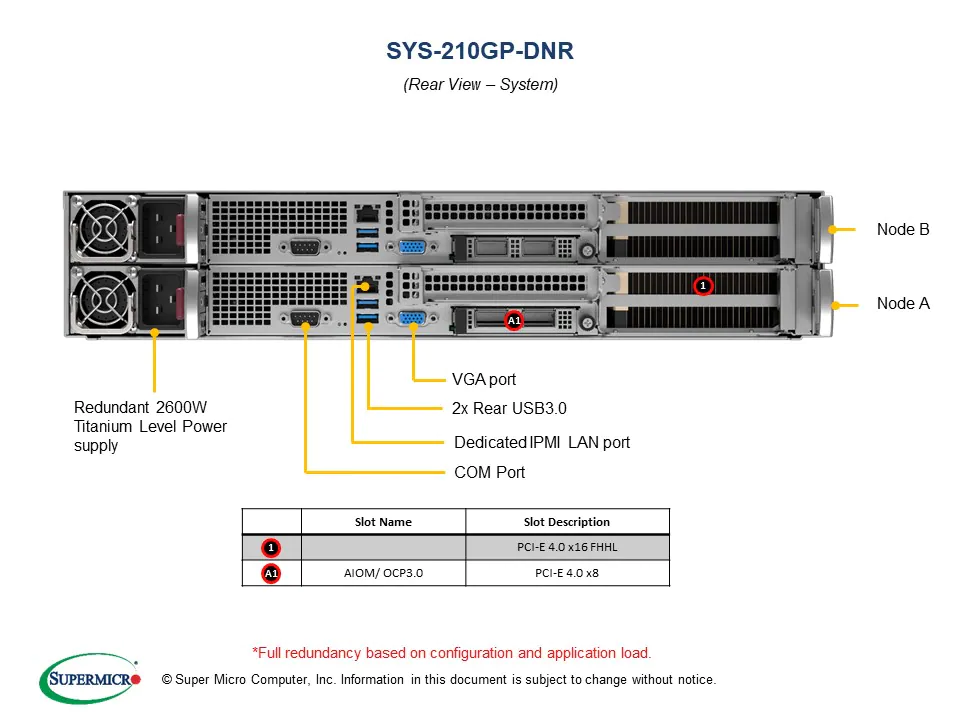

| LAN | 1 RJ45 Dedicated IPMI LAN port |
| I/O | 2 USB 3.2 Gen1 port(s) (2 rear), 1 COM Port(s) (1 rear) |

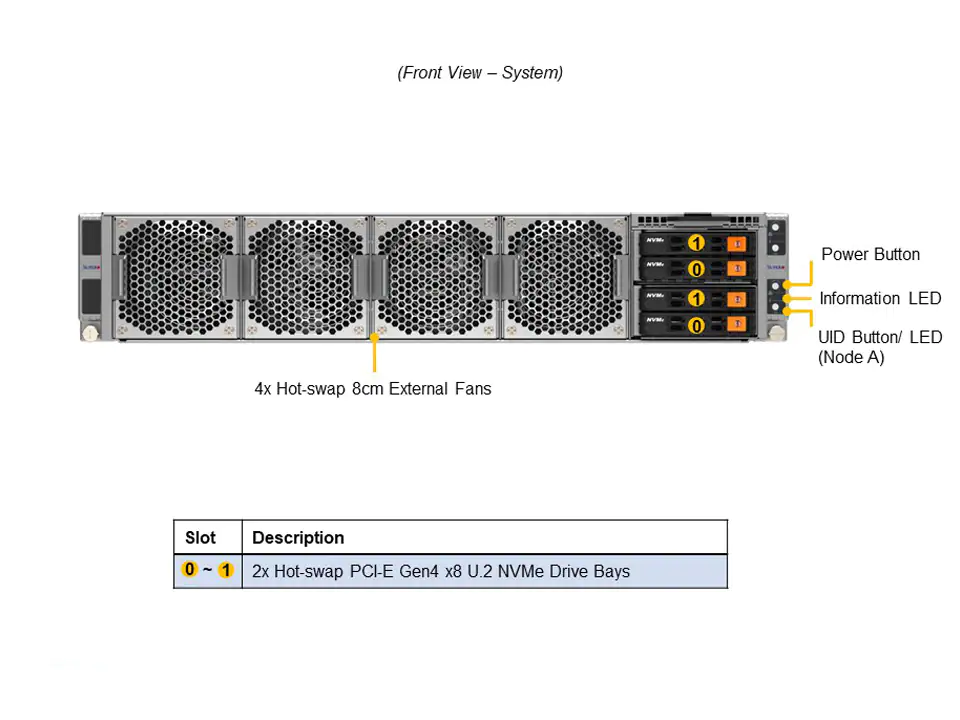

| Storage | 2 x 2.5″ hot-swap NVMe Support drive bays, 2 x 2.5″ NVMe dedicated, 2 x M.2 NVMe OR 2 x M.2 SATA3. |
| Expansion | 3 PCI-E 4.0 x16 FHFL DW slot(s) |
| Operative range | 10°C ~ 35°C (50°F ~ 95°F) |
| Power | 2600W Redundant Power Supplies |
| Notes | – |
