Server Industrial Server

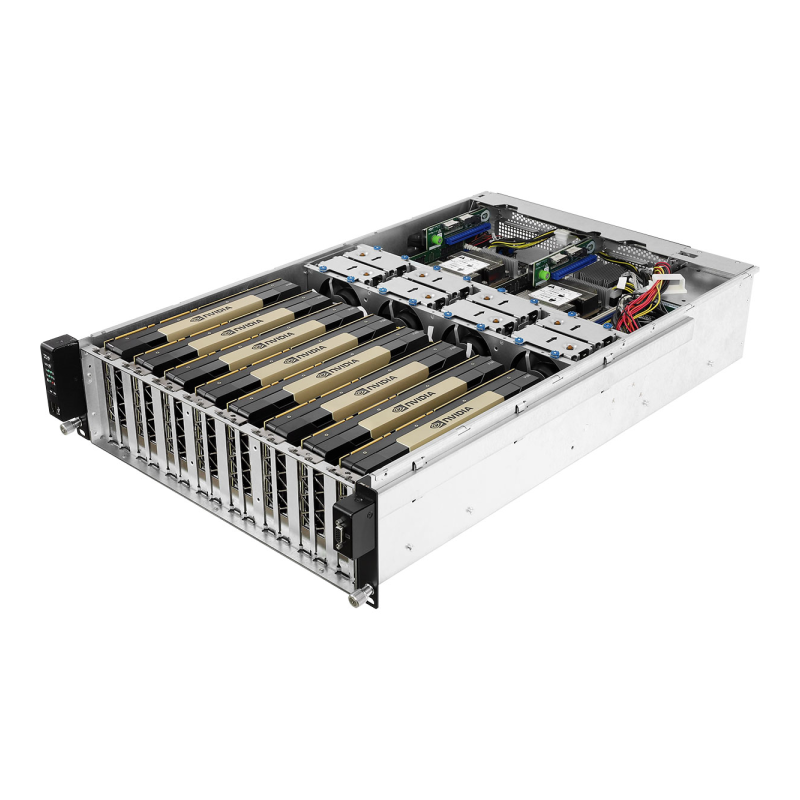

3U8G+/C621

Solution provider for Embedded and Industrial PC
General Features

– 3U Rackmount with 1200W Redundant PSU (3+1)
– Dual Socket P (Purley) Intel® Xeon® Scalable Processors
– Support 16 x DDR4 DIMM slot, 2666/2400 RDIMM, LR DIMM
– Supports 8 x GPGPU/MIC card or 8 x GPGPU/MIC
– Supports Intel i350 Dual GLAN
– Supports 6 x SATA3 6.0 Gb/s or 6 x SAS 12 Gb/s Hot Swap Bay
– Supports 2 x PCIE card

Technical Features

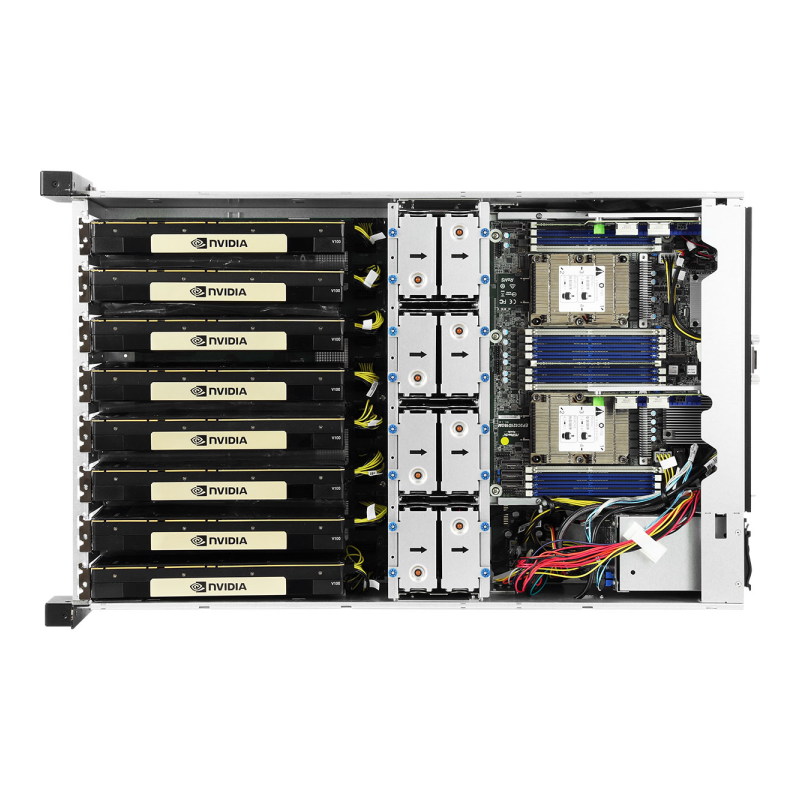

SYSTEM
Form Factor 3U Rackmount
Chassis Model 3U8G-/C621
Dimensions 722.3mm X 430mm X 170.35mm (L/W/H, ear)
Support MB SSI CEB, 12 x 10.56 inch (EP2C621D16GM)

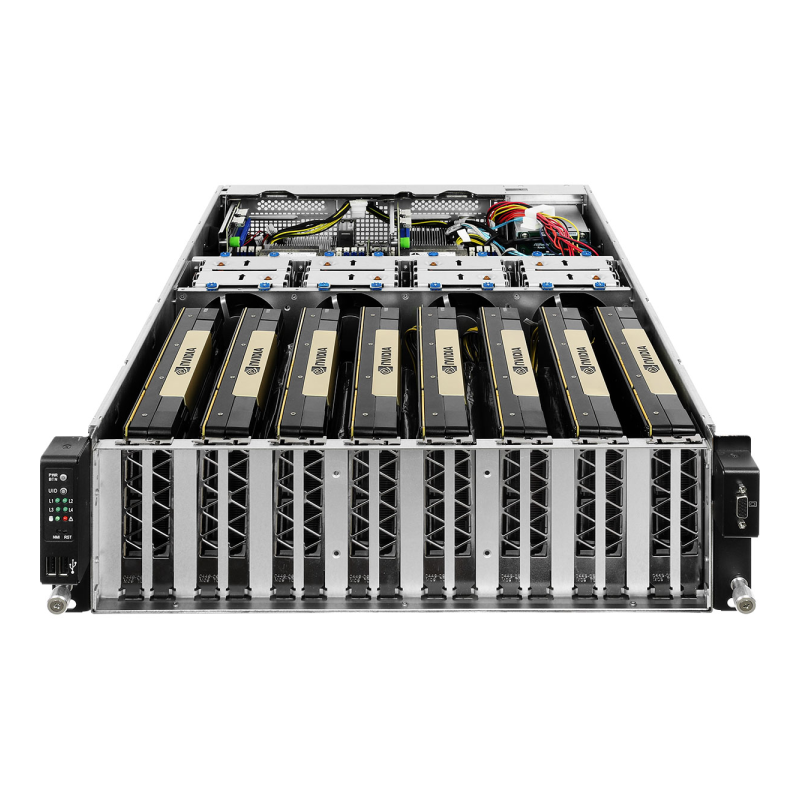

FRONT PANEL
Buttons Power button
UID button
Reset button
NMI button
LEDs 2 x LAN LEDs (L1, L2, LED)
2 x Front LEDs
HDD LED
System event LED
I/O Ports 2 x USB 2.0 ports
VGA port x1
MB TRAY
Slimline CONN 4 ( for 2 x Low Profile PCIE card (one x8, another x16)
USB 2.0 2
USB 3.0 2
Serial Port 1
VGA 1 x D-Sub
Lan Port 2 (GLAN by Intel® i350)+1 (IPMI) Lan port (RJ45)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
EXTERNAL BAY DRIVE
Front Side Drive Bay 6 Bay 2.5″ SATA HDD (6Gb/s) or 6 x SAS (12Gb/s)
POWER SUPPLY
Type 4 (3+1), Redundant
Output Watts 1200W, Platinum
SYSTEM FAN
Fan 80 x 38 mm x 8
Fail LED Abnormal(DC on): LED ON (Solid Red)
Normal: LED OFF (For the FAN in the center)
SYSTEM SWITCH BOARD
Switch IC PLX 8747
Supports GPU Card 8 x GPGPU card or 8 x GPGPU/MIC
GPGPU CARD
GPGPU Watts Max 300w /per card
Support GPGPU 8 x GPGPU card or 8 x GPGPU/MIC
MB PHISICAL STATUS
Form Factor SSI CEB
Dimensions 12” x 10.5” (30.5 cm x 26.7 cm)
PROCESSOR SYSTEM
CPU Supports Intel® Xeon® Scalable Processors
Socket Dual Socket P
Chipset C621
SYSTEM MEMORY
Capacity 16 DIMM slots
Type 6 Channel DDR4 memory technology 2666/2400/2133 R DIMM/LR DIMM
Voltage 1.2V
STORAGE
SATA Controller PCH: 8 x SATA3 + 1 x M.2
ETHERNET
Interface 1000 /100 /10 Mbps
LAN Controller 2 x RJ45 GLAN by Intel® i350
MANAGMENT
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
NMI
GRAPHICS
Controller ASPEED AST2500
VRAM DDR4 4GB

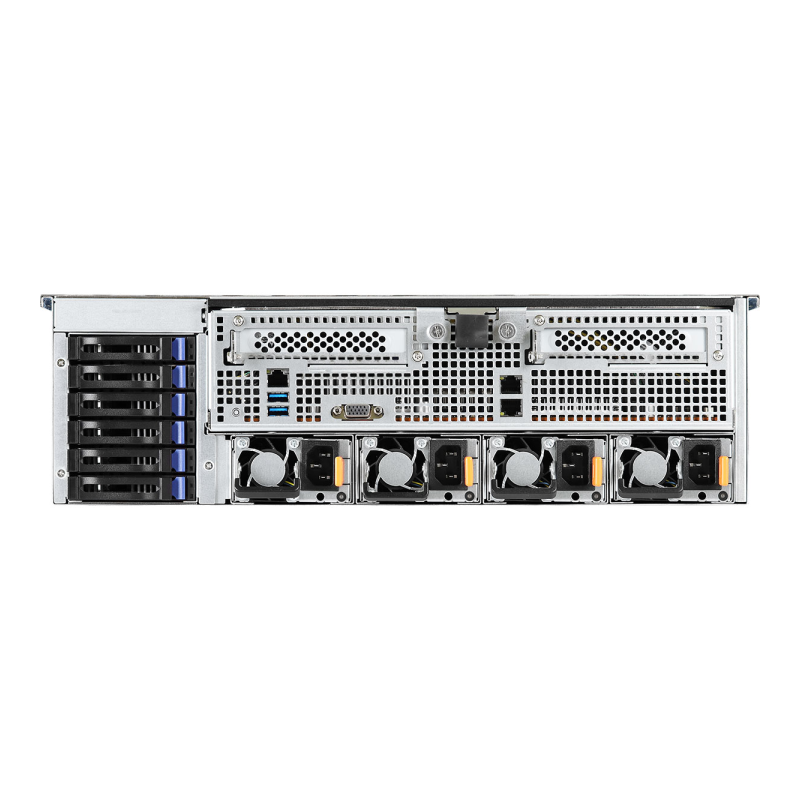

REAR PANEL I/O
VGA Port 1 x D-Sub
USB 3.1 Gen1 Port 2
Lan Port 1 (IPMI) Lan port (RJ45)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED 1
INTERNAL CONNECTOR
M.2 1 (up to 2280)
Auxiliary Panel Header 1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header 1
IPMB Header 1
VGA Header 1
Fan Header 2x CPU Fan, 2x system Fan (6-pin)
ATX Power 1 (24-pin) + 2 (8-pin)
Front panel 1
SYSTEM BIOS
BIOS Type 256Mb AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8 Support
ASRock Rack Instant Flash
HARDWARE MONITOR
Temperature CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50_ PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
ENVIROMENT
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
