Technical Features
CPU Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz
Chipset
RAM SO-DIMM, DDR4, max. up to 16GB
LAN 4 x RJ45, LAN 1~3 ports Support PoE 802.3 AF (Single port max. up to 15.4W, total less than 45W); LAN 4 support standard 10/100/1000 Mbps

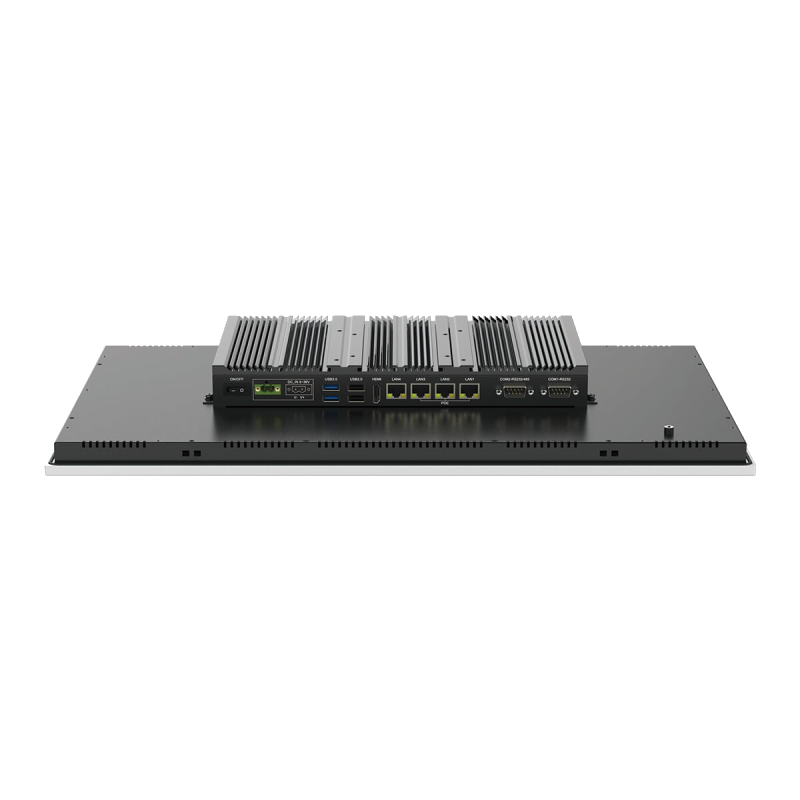

I/O 2 x USB3.0, 2 x USB2.0, 2 x RS232
Storage 1 x M.2 M-key 2242/2280 SATA SSD
Expansion 1 x M.2 2230 E-key slot for Wi-Fi, 1 x Mini-PCIe slot

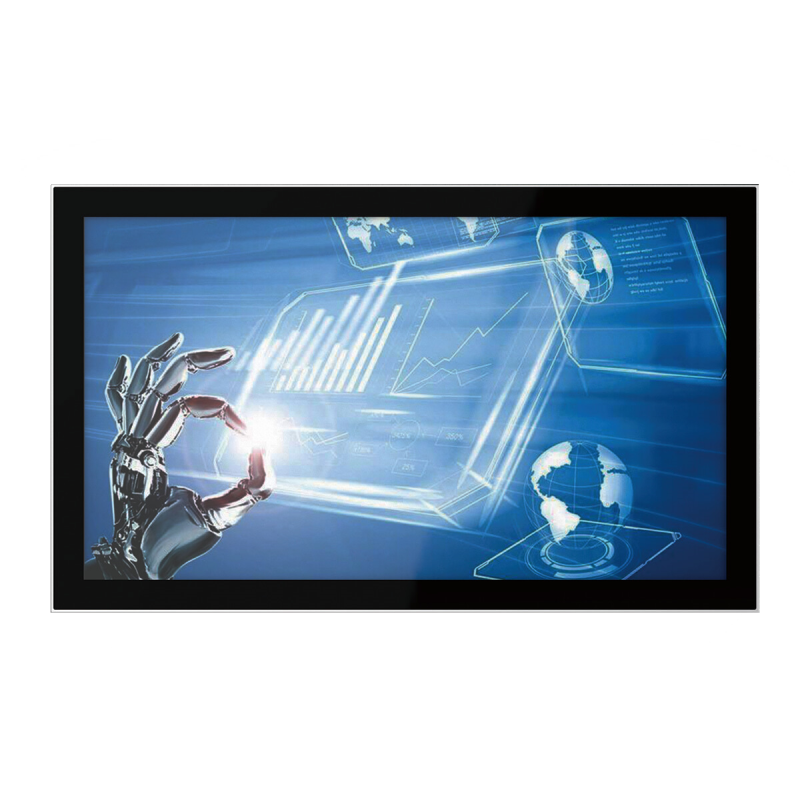

Display Size and Form Factor 21.5″, –
Resolution 1920 x 1080 px
Brightness 250 cd/m2
Touch PCAP

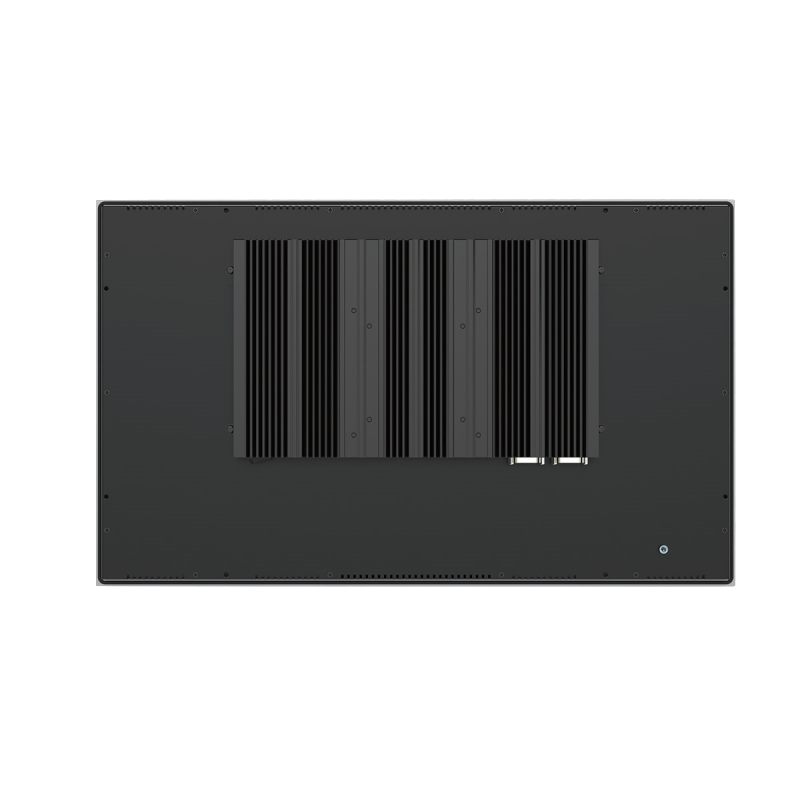

Mechanicals IP65 Front Panel,VESA 75/100, Panel Mount
Operating Temperature 0 ~ +60℃
Power DC 9~36V
Notes CE/FCC Class A
