Technical Features
CPU 3rd Gen Intel® Xeon® Scalable processors
Chipset Intel® C621A
RAM 32 DIMM Slots, Up to 8TB: 32x 256 GB DRAM; Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM, 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM

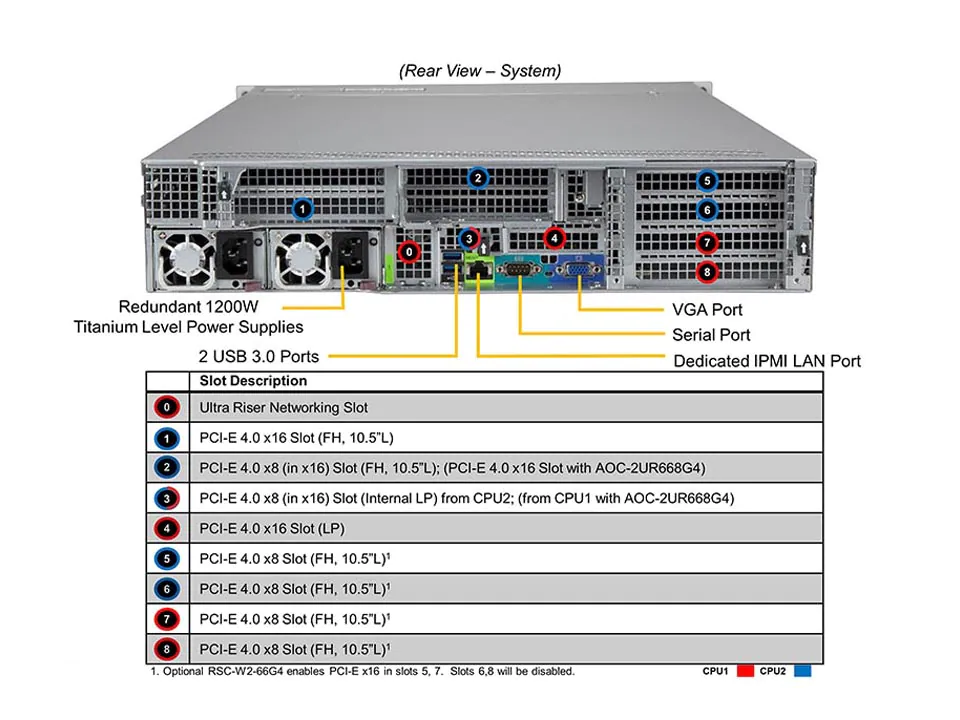

LAN 1 X RJ45 Dedicated BMC LAN port
I/O 2 X USB 3.0 port(s) (2 rear); 1 VGA port(s); 1 X COM Port(s) (1 rear)
Storage 12 X 3.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
Expansion 6 X PCI-E 4.0 x8; 2 X PCIe 4.0 x16
Operative range 10°C ~ 35°C
Power 1200W redundant Titanium level power supplies;
