Fanless Box PCs
High-Performance Systems

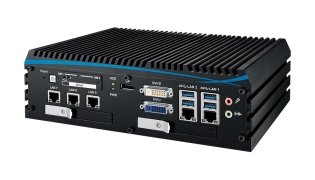

High-Performance Systems are workstation-class fanless PCs characterized by high computing performance, made available by Intel® Xeon ™ and Core ™ architectures, and a wide range of I/O ports.
The system can be configured in order to embed up to nine GigE network ports (up to 4 PoE+ ports, 2 SFPs) and two hot swap disks.
All systems in this category can be used in extended temperature range applications.
The system can be configured in order to embed up to nine GigE network ports (up to 4 PoE+ ports, 2 SFPs) and two hot swap disks.
All systems in this category can be used in extended temperature range applications.
| Model | CPU | Chipset | LAN | USB 2.0 | USB 3.0 | USB 3.1 | M.2 | COM | PCI | PCIe | Mini PCIe | DIO | Power | Note | DM | ||
|
ECX-1000-9R
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 9 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray; 4 PoE+ | |||
|
ECX-1000-9GD
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 9 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 4 PoE+ | |||
|
ECX-1000-PoER
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 6 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray; 4 PoE+ | |||
|
ECX-1000-PoE
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 6 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 4 PoE+ | |||
|
ECX-1000-6FR
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 6 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray; 2SFP | |||
|
ECX-1000-6F
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 6 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 SFP | |||
|
ECX-1000-4R
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 4 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray | |||
|
ECX-1000-4G
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 4 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | ||||
|
ECX-1000-2R
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 2 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray | |||
|
ECX-1000-2G
|
8/9th Gen Intel® Xeon®/i3/i5/i7 Intel® Core | Intel® C246 | 2 | 1 | - | 6 | 1 | 4 | - | - | 2 | 16 | 6-36V |
| Model | CPU | Chipset | LAN | USB 2.0 | USB 3.0 | USB 3.1 | M.2 | COM | PCI | PCIe | Mini PCIe | DIO | Power | Note | DM | ||
|
SPC-5600
|
8/9th Gen i3/i5/i7 Intel® Core | Intel® H310 | 4 | 2 | - | 4 | - | 4 | - | - | 2 | - | 12V |
| Model | CPU | Chipset | LAN | USB 2.0 | USB 3.0 | USB 3.1 | M.2 | COM | PCI | PCIe | Mini PCIe | DIO | Power | Note | DM | ||
|
ECS-9280C
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 10 | 1 | 8 | - | 2 | 4 | - | - | 3 | 32 | 6-36V | 2-port CAN 2.0 A/B | |||
|
ECS-9280
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 10 | 1 | 8 | - | 2 | 4 | - | - | 3 | 32 | 6-36V | 8 PoE+ LAN | |||
|
ECS-9244MXC
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 10 | 1 | 8 | - | 2 | 4 | - | - | 3 | 32 | 6-36V | 4 LAN X-coded M12 PoE+ | |||
|
ECS-9244MC
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 10 | 1 | 8 | - | 2 | 4 | - | - | 3 | 32 | 6-36V | 2-port CAN 2.0 A/B | |||
|
ECS-9055R
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 8 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | 2 Front-access 2.5" SSD/ HDD Tray | |||
|
ECS-9055
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 8 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | ||||
|
ECS-9000-9R
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 9 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | 2 Front-access 2.5" SSD/ HDD Tray+ LAN 3 to 6 PoE | |||
|
ECS-9000-6FR
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 6 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | 2 Front-access 2.5" SSD/ HDD Tray + with 2 SFP | |||
|
ECS-9000-4R
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 4 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray | |||
|
ECS-9000-4G
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 4 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | ||||
|
ECS-9000-2R
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 2 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V | 2 Front-access 2.5" SSD/HDD Tray | |||
|
ECS-9000-2G
|
6/7th Gen i3/i5/i7 Intel® Core | Intel® C236 | 2 | 1 | 6 | - | 1 | 4 | - | - | 3 | 16 | 6-36V |
| Model | CPU | Chipset | LAN | USB 2.0 | USB 3.0 | USB 3.1 | M.2 | COM | PCI | PCIe | Mini PCIe | DIO | Power | Note | DM | ||
|
ECS-7000-9R
|
3rd Gen i3/i5/i7 Intel® Core | Intel® QM77 | 9 | 2 | 4 | - | - | 4 | - | - | 2 | - | 6-36V | 2 x Hot Swappable HDD | |||
|
ECS-7000-4G
|
3rd Gen i3/i5/i7 Intel® Core | Intel® QM77 | 4 | 2 | 4 | - | - | 4 | - | - | 2 | - | 6-36V |
