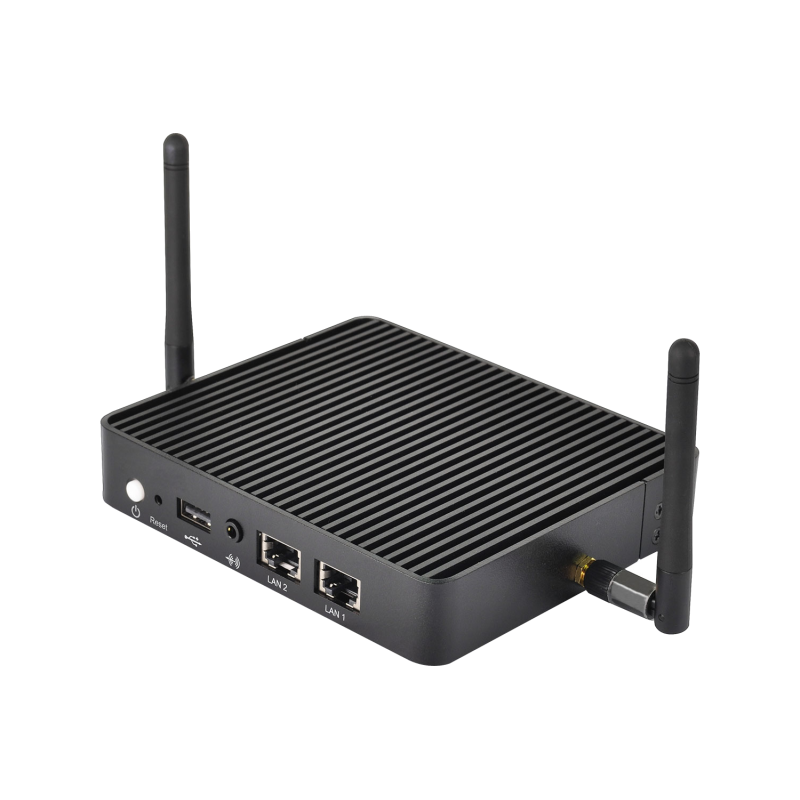

uBOX-110

Fanless PC Box

Intel® Atom™Baytrail, 1 DDR3L 1066/1333 SO-DIMM up to 4G/8G, 2 x LAN, 1 x USB 3.0 ports, 1 x USB2.0, 1 x Micro USB2.0, 1 x mini PCIe (half size) /1 x mSATA



General Features

– Intel® Atom™ Baytrail
– 1 DDR3L 1066/1333 SO-DIMM up to 4G/8G
– 2 x LAN, 1 x USB 3.0 ports, 1 x USB2.0, 1 x Micro USB2.0, 1 x mini PCIe (half size) /1 x mSATA

Technical Features
Processor System
CPU Intel® Atom™Baytrail D/M/I SoC processor up to 2GHz
Memory 1 x DDR3L-1066/1333 SO-DIMM up to 4G/8G
Chipset N/A
Graphic Intel Gen7
LAN Chipset Intel i210
Watch Dog 256 Segments,0,1,2,…255sec/min

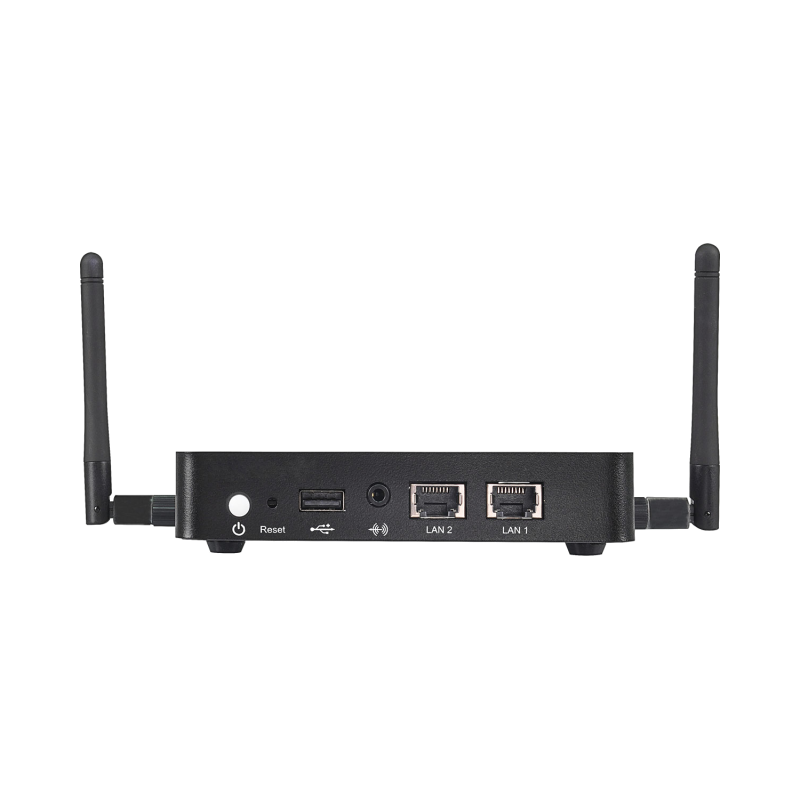

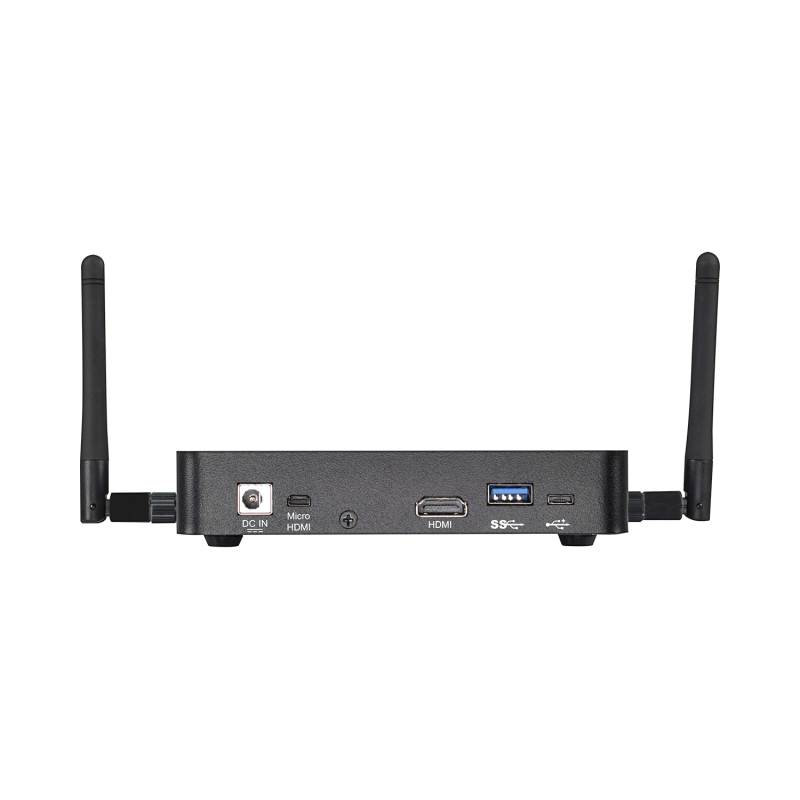

Rear I/O
Serial Port N/A
USB 1 USB 3.0 ports / 1 x USB2.0 / 1 x Micro USB2.0
LAN 2 RJ45 Port for Gbe
Vedio output 1 x HDMI. 1 x Mini HDMI
Audio Line out / Mic-in
Expansion 1 x mini PCIe (half size) /1 x mSATA
Storage
Type mSATA (Full size)
OS Support Window 7 / 8.0 / 8.1, Linux ( kernel 3.x )
Certifications CE, FCC, Class A
Environmental
Operating Temp 0°C~50°C
Storage Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Top cover -aluminum extrusion/ Base- metal
Dimension W*D*H : 135*116*25.4mm
Weight 0.5kg
Mounting Vesa mount (included)
