Embedded PC In Vehicle

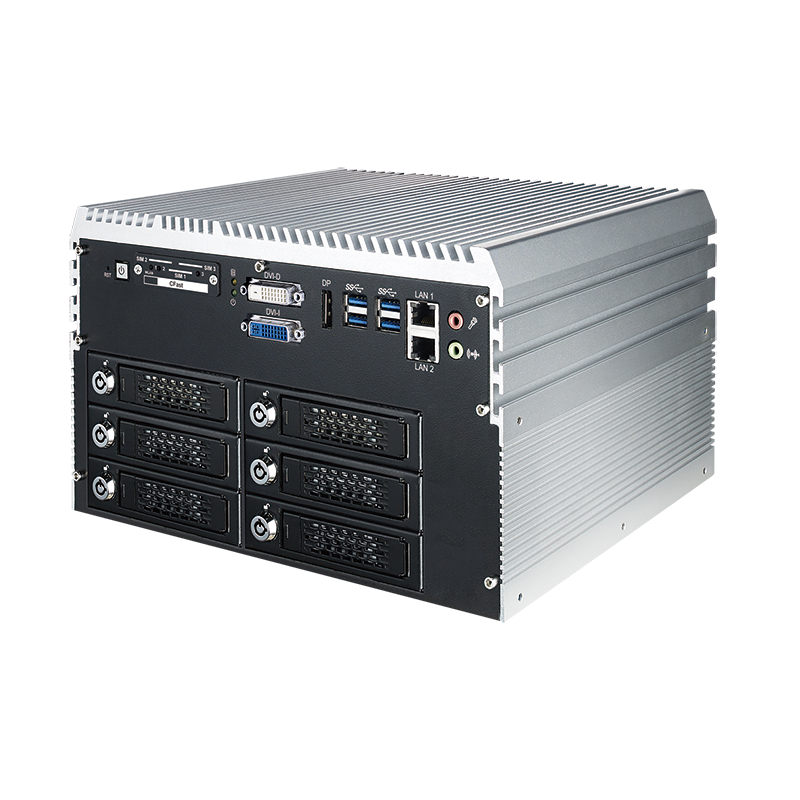

IVH-9204MX IVY

Solution provider for Embedded and Industrial PC

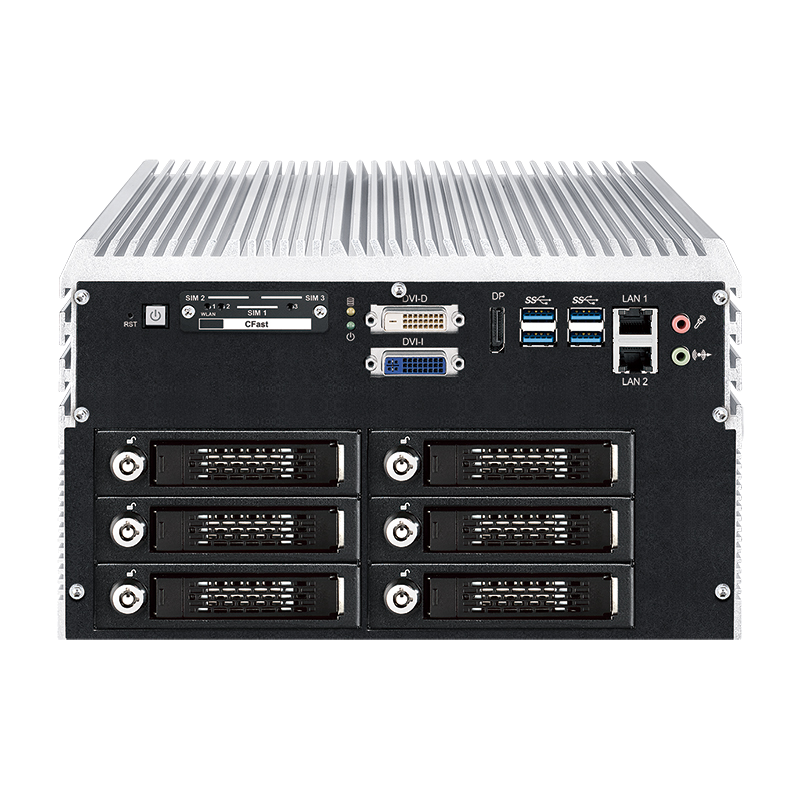

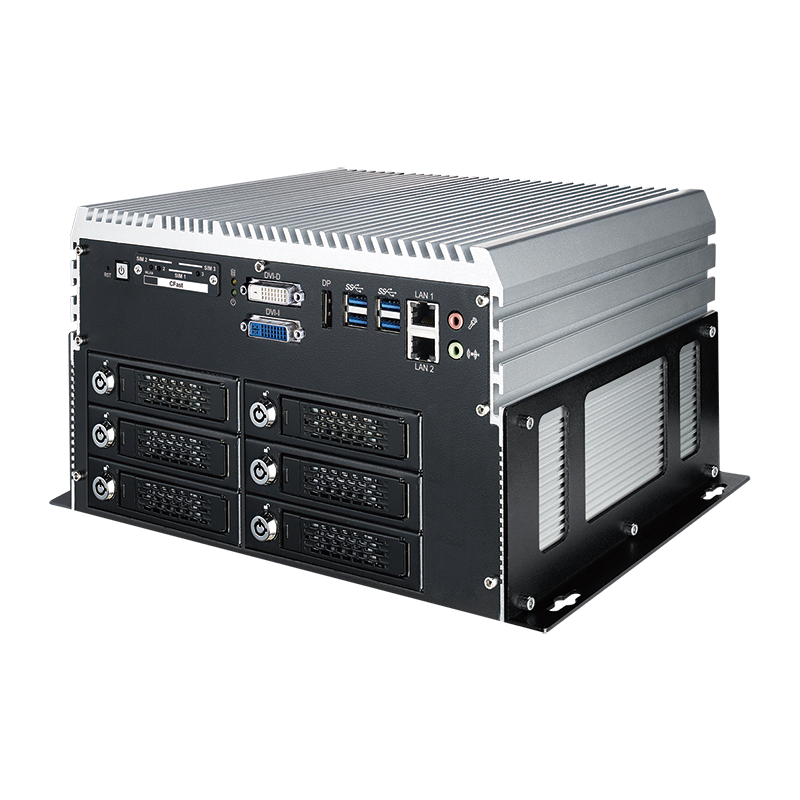

General Features
  • LGA 1151 Socket supports workstation-grade Intel®Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake/Skylake) with Intel®C236 Chipset
  • 6 Independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+
  • 16V to 160V DC Power Input with 4242V DC Isolation, up to 500V Surge Protection
  • 6 front-access 7mm to 15mm height SSD/HDD Tray, up to 24TB
  • 2 DDR4 2400MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
  • Fanless design for railway in-vehicle applications, fully compliant with EN50155
  • -40°C to 70°C Extended Operating Temperature
  • 32 Isolated DIO, 8 USB 3.0, 4 COM, 2 Mini PCIe, 6 SATA
  • Triple independent displays : DVI-I, DVI-D and DisplayPort, up to 4K resolution
  • Configurable Ignition Power Control, UPS supported
  • 3 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
  • EN50155, EN50121-3-2 and EN45545-2 compliant
Technical Features
SYSTEM
Processor Quad Core Intel® Xeon® /Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2400/2133 MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
OS Windows 10, Windows 8.1, Windows 7, Linux

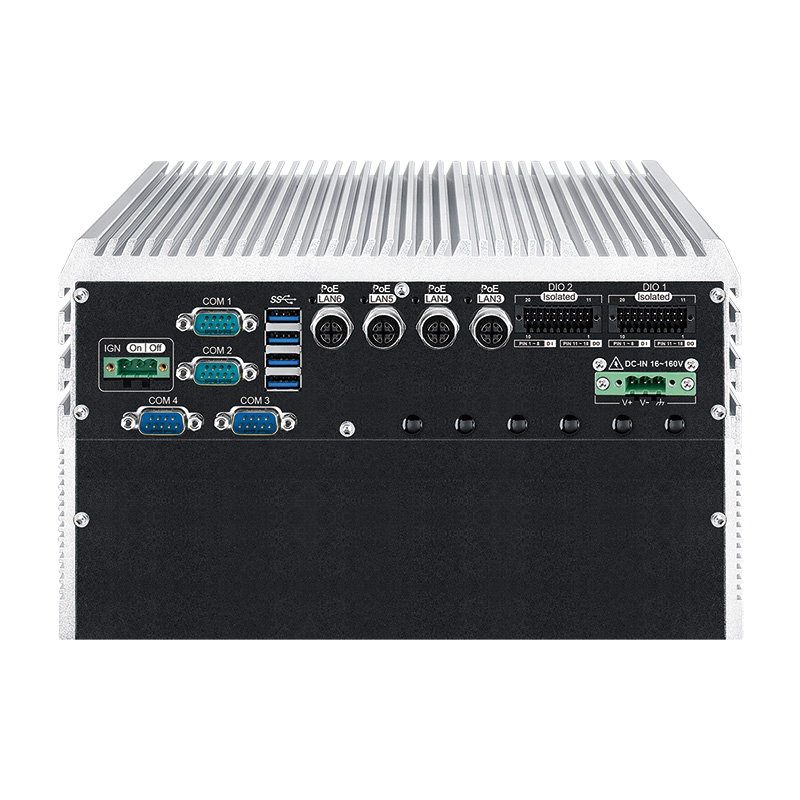

I/O INTERFACE
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB – 8 USB 3.0 (External)
– 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless, PoE
SIM Card 3 External SIM Card Socket
EXPANSION
Mini PCIe 2 Full-size Mini PCIe sockets for PCIe/USB/External SIM Card/mSATA
GRAPHICS
Graphics Processor Intel®HD Graphics 630/530
Interface Triple independent displays :
– 1 DVI-I : Up to 1920 x 1200 @60Hz
– 1 DVI-D : Up to 1920 x 1200 @60Hz
– 1 DisplayPort : Up to 4096 x 2304 @60Hz
STORAGE
SATA 6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device – 1 CFast Socket, Push-in/Push-out Ejector
– 6 Front-access 2.5″ SSD/HDD Tray (15mm in height)
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
ETHERNET
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE (X-CODED M12)
LAN 3 to LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel®
(X-coded M12) by Intel® I210 with Power On/Off Control
POWER
Power Input 16V to 160V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Isolation 4242V DC
Surge Protection 0.5KV DC 8/20us Surge
UPS (UPM-100) Optional supports 3 stackable 18650 LFO batteries (1.1mA/h)
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
ENVIRONMENT
Operating Temp. 35W TDP CPU : -40°C to 65°C (-40°F to 149°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
Shock – IEC 60068-2-27, IEC 61373
– SSD : 50G @ wallmount, Half-sine, 11ms
Vibration – IEC 60068-2-64, IEC 61373
– SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Certification CE, FCC, EN50155, EN50121-3-2, EN45545-2

Contact us for more information about In Vehicle IVH-9204MX IVY
