Embedded PC In Vehicle

IVH-9000-2R

Solution provider for Embedded and Industrial PC

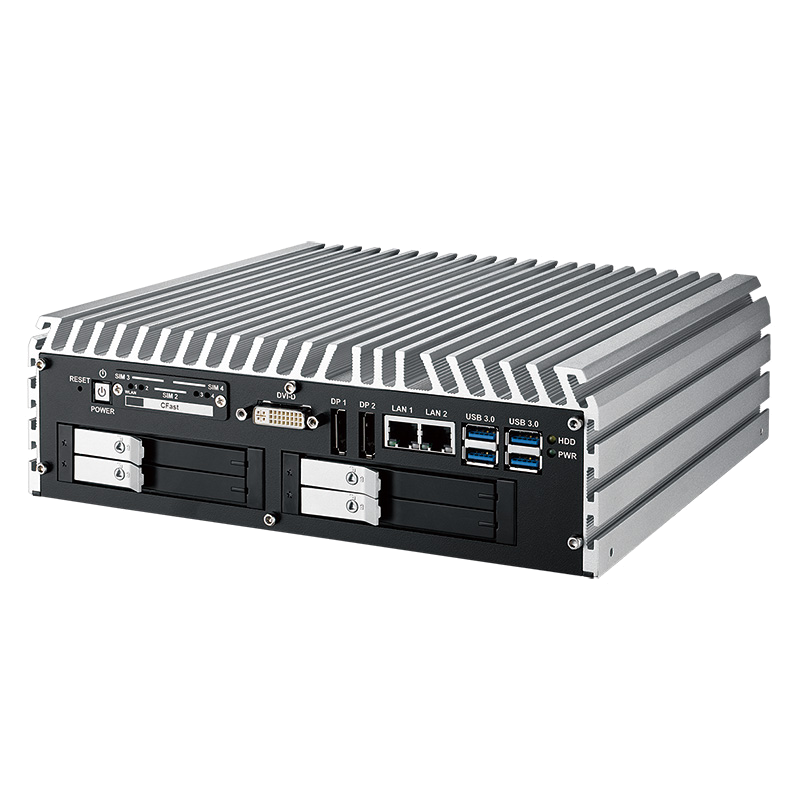

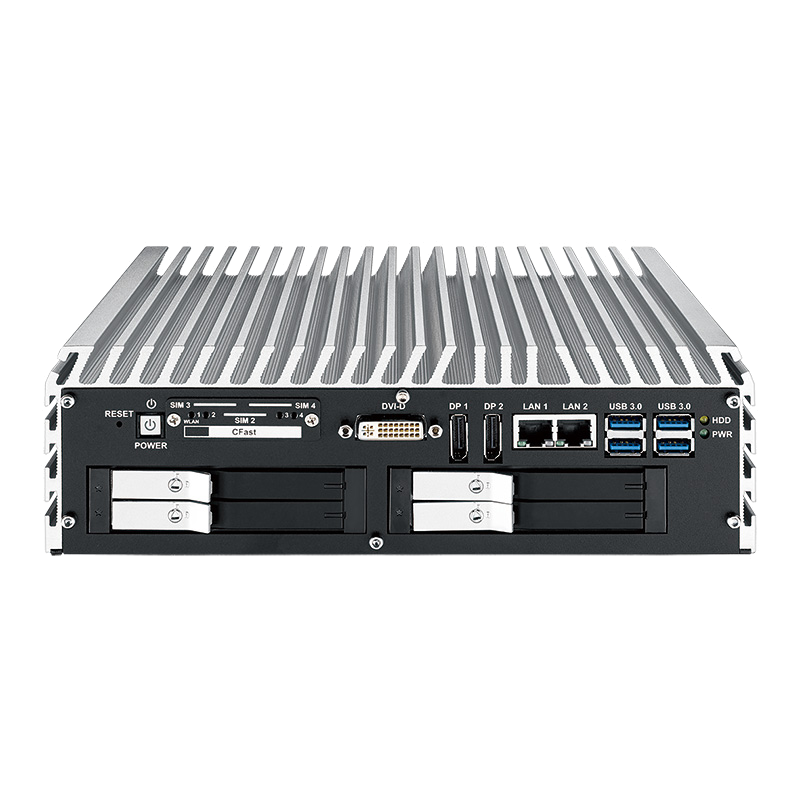

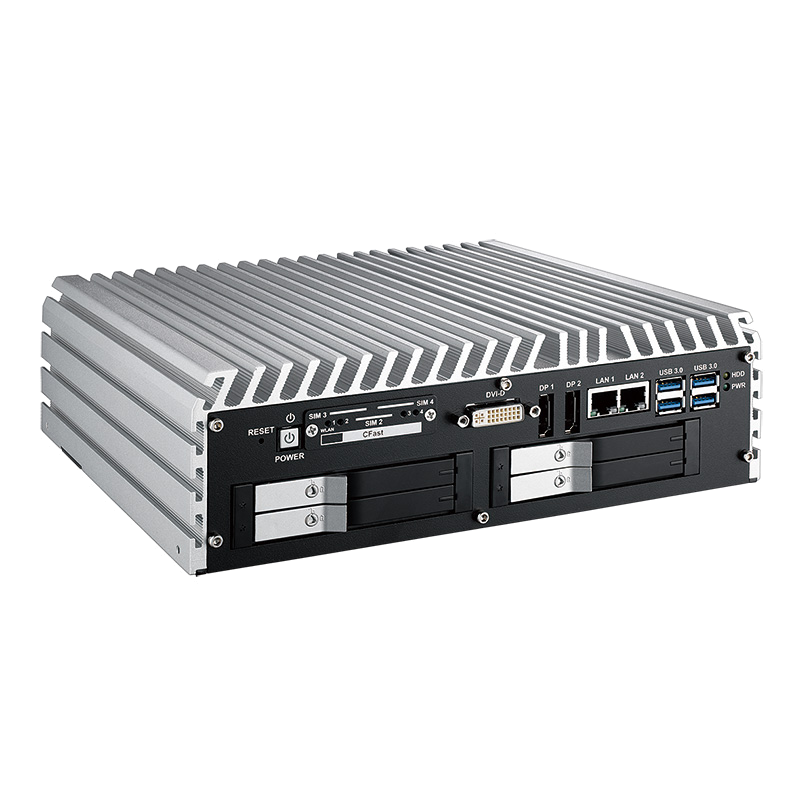

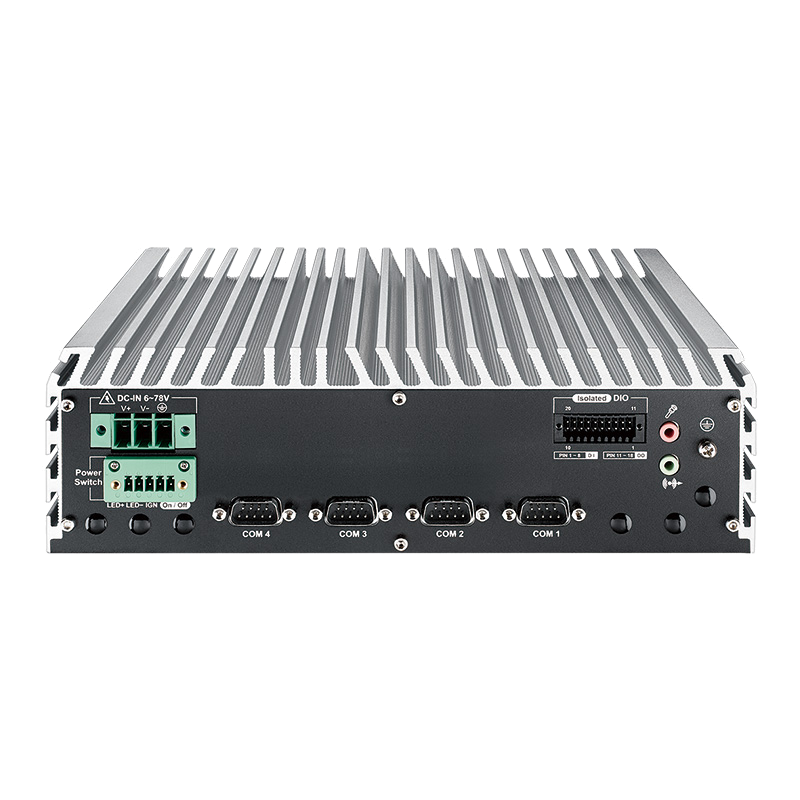

IVH-9000-2R

Fanless PC Box

Intel® Xeon®/Core™, Intel® CM236, 2 DDR4 2133MHz SO-DIMM, up to 32GB, 2 LAN, 4 x COM, 5 x USB, 4 Mini PCIe



General Features

– Intel® Xeon®/Core™
– Intel® CM236
– 2 DDR4 2133MHz SO-DIMM, up to 32GB
– 2 LAN, 4 COM, 4 USB 3.0, 1 USB 2.0, 4 Mini PCIe

Technical Features
System
Processor Intel® Xeon® E3-1505M v5/ Core™ i7-6820EQ/ i5-6440EQ
Processor (Skylake-H)
Chipset Intel® CM236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
(ECC Function enable depends on processor support)
I/O Interface
Serial 4 COM RS-232/ 422/ 485 w/ auto flow control
(ESD protection: Air gap ±15kV, Contact ±8kV )
USB 4 USB 3.0 (External)
1 USB 2.0 (Internal)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO
LED Power, HDD, Wireless, PoE
SIM Card 4 SIM Card Socket (3 External, 1 Internal)
Expansion
Mini PCIe 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
3 Mini PCIe for PCIe/ USB/ External SIM Card
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Processor Intel® HD Graphics P530/ 530
Display Memory Shared Memory, up to 1.7GB
Interface DVI-D : Up to 1920 x 1200 @ 60Hz
DisplayPort 1 : Up to 4096 x 2304 @ 60Hz
DisplayPort 2 : Up to 4096 x 2304 @ 60Hz
Storage
SATA 6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 CFast Socket, Push-in/ Push-out Ejector
4 Front-access 2.5″ SSD/ HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 Gigabit LAN supports iAMT
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input 6V to 78V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 5-pin Terminal Block : On, Off, IGN, LED+, LED
Surge Protection Up to 200V/1ms Transient Power
UPS Supported (Optional)
Others
TPM Optional Infineon SLB9665 supports TPM 2.0,
LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling
control when CPU overheats.
GPS Onboard GPS Module supports Accelerometer,
Gyroscope and Odometer (Optional)
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (WxLxH) 260mm x 215mm x 79mm (10.2″ x 8.5″ x 3.1″)
Weight 4.2 kg (9.26 lb)
Mounting Wallmount by mounting bracket
2U Rackmount (Optional)
Environment
Operating Temp. -25°C to 70°C (-13°F to 158°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 70°C
Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN 50155, EN 50121-3-2
Ordering Informations
IVH-9000-2R505M IVH-9000, Quad Core Intel® Xeon® E3-1505M v5, 2 GbE LAN, 4 SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO
IVH-9000-2R820Q IVH-9000, Quad Core Intel® Core™ i7-6820EQ, 2 GbE LAN, 4 SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO
IVH-9000-2R440Q IVH-9000, Quad Core Intel® Core™ i5-6440EQ, 2 GbE LAN, 4 SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO

Contact us for more information about In Vehicle IVH-9000-2R
