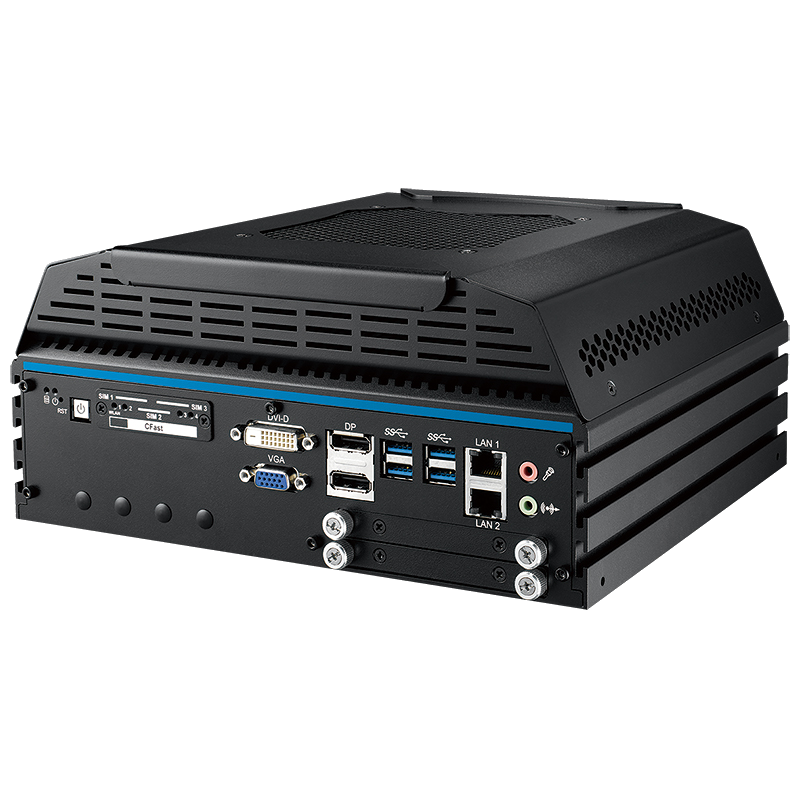

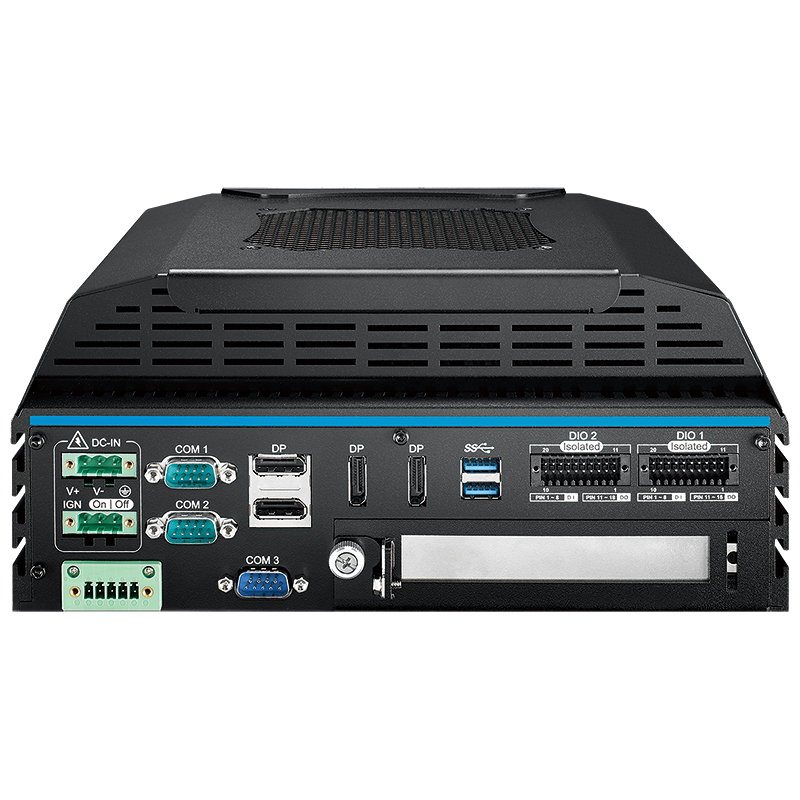

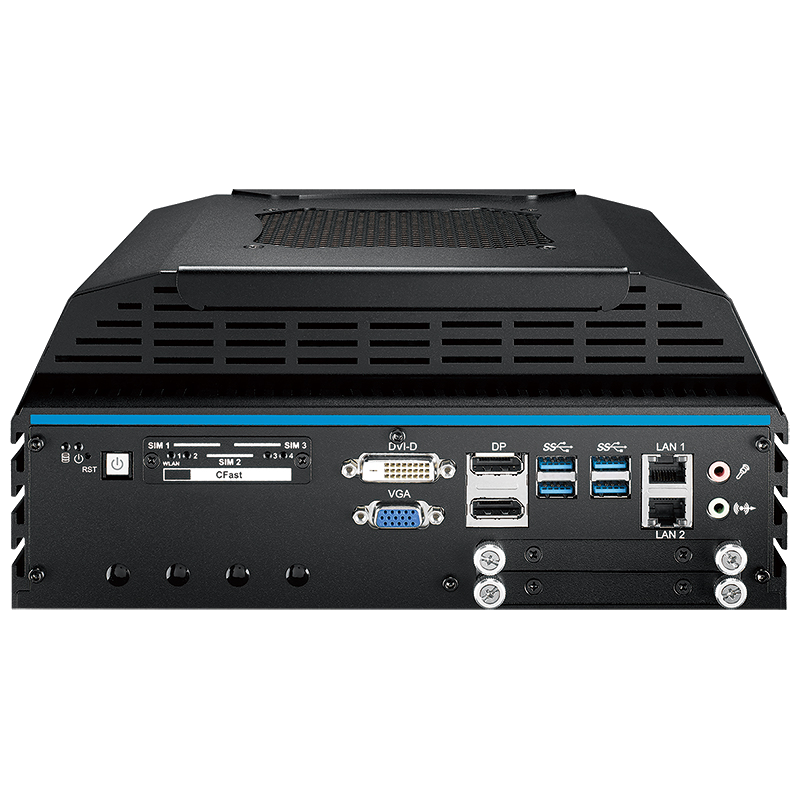

Fanless PC Box

Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S), Intel® C236, 2 DDR4 2133MHz SO-DIMM, up to 32GB , 2 LAN, 6 USB 3.0, 1 USB 2.0, 3 COM, 1 PCi o 1 PCIe, 3 mini PCIe

General Features

-Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
-Intel® C236
-2 DDR4 2133MHz SO-DIMM, up to 32GB
-2 LAN
-6 USB 3.0
-1 USB 2.0
-3 COM
-1 PCI o 1 PCIe
-3 mini PCIe

Technical Features
Processor Quad Core Intel®
Chipset Intel® C236
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
OS Windows 10, Windows 8.1, Windows 7, Linux
I/O Interface
Serial 3 COM RS-232/422/485 (ESD 8KV)
USB – 6 USB 3.0 (External)
– 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card 3 External SIM Card Socket
Mini PCIe: 3 Mini PCIe Socket :
– 3 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 1 PCI/PCIe x4 Slot
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics Processor
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device – 1 CFast Socket, Push-in/Push-out Ejector
– 2 Front-access 2.5″SSD/HDD Tray
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
LAN Intel®
LAN Intel®
Power Input EVS-1100 MXM1050, MXM1060 : 10V to 36V, DC-in
EVS-1100 MXM1070 : 16V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Dimensions (W) 260mm x (L) 215mm x (H) 115mm (10.2″ x 8.5″ x 4.5″)
Weight 4.9 kg (10.8 lb)
Mounting Wallmount by mounting bracket
Din Rail Mount
2U Rackmount (Optional)
Operating Tem. -25°C to 60°C (-13°F to 140°F)
Storage Tem. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 60°C
Shock – IEC 60068-2-27
– SSD : 50G @ wallmount, Half-sine, 11ms
Vibration – IEC 60068-2-64
– SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

Contact us for more information about GPU Computing Systems EVS-1100
