General Features
CPU 10th Gen Intel® Comet Lake LGA1200 Socket Processor
Chipset Intel® Q470E
RAM DDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64GB (Non-ECC)
LAN 2 x GigE RJ45

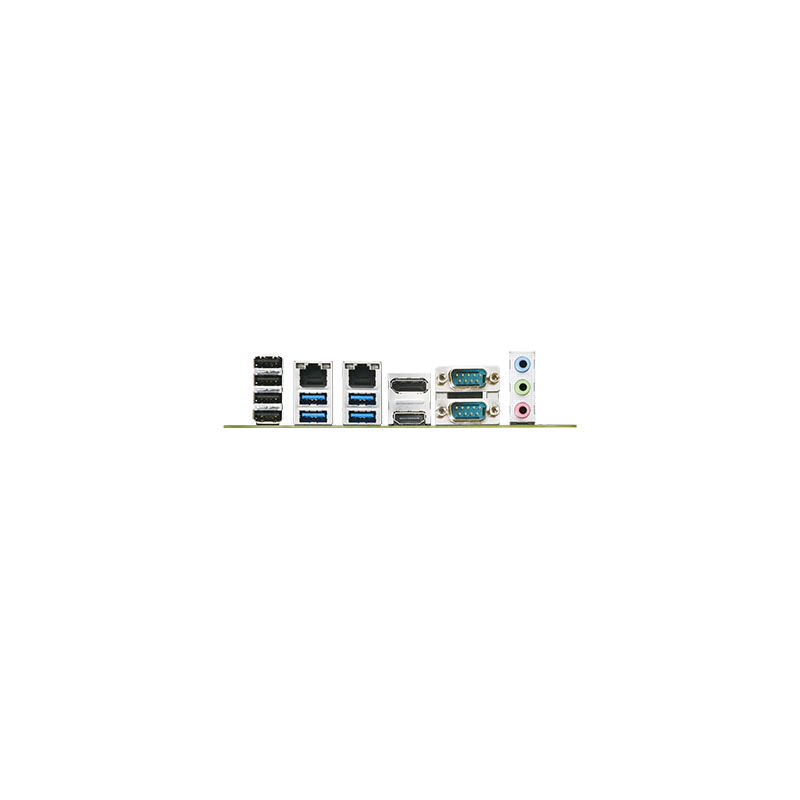

I/O 4 x USB 3.2, 1 x USB 3.1, 6 x USB 2.0, 1 x RS-232/422/485, 1 x RS-232,
Storage 2 x SATA (6 Gb/s), 1 x M.2 Key M
Expansion 1 x PCIe x16, 1 x M.2 Key E 1 x mPCIe
Operative range 0°C to 60°C
Power ATX, 12V DC Power Input
