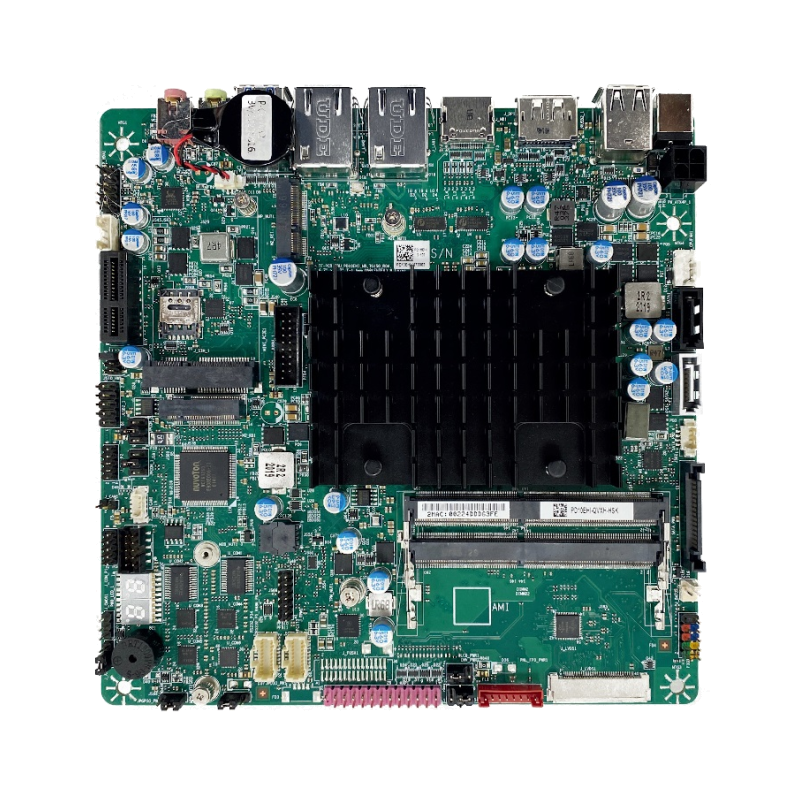

General Features
CPU Intel® Elkhart Lake Celeron J6413, Pentium N6415, Celeron N6211, Celeron N6210, and Atom x6413E
RAM DDR4 3200, 2 x 260-pin SO-DIMM, Max. 32 GB (Non-ECC)
LAN 2 x GigE RJ45

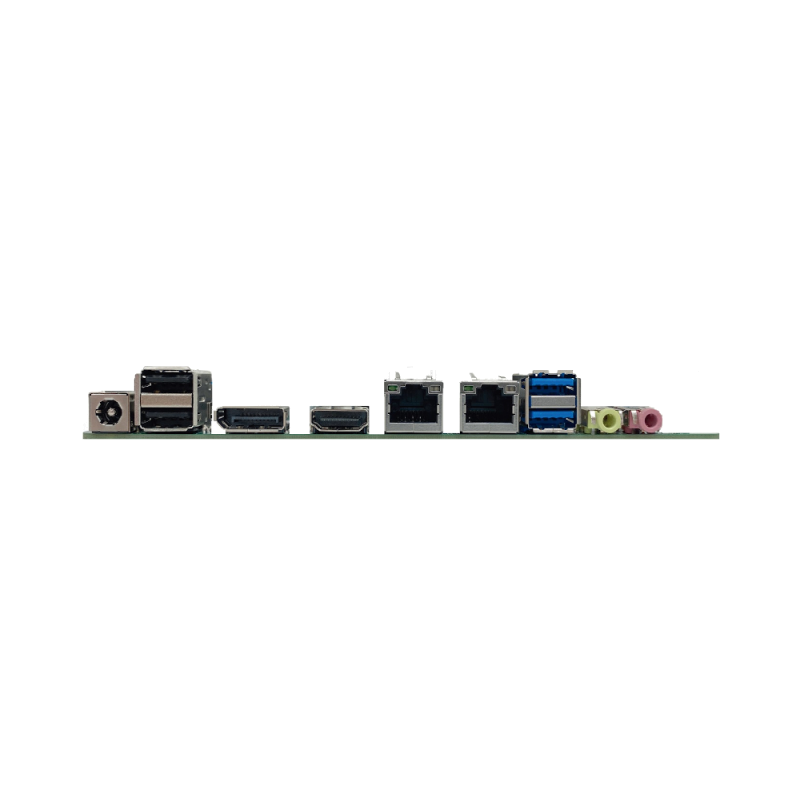

I/O 2 x USB 3.1, 4 x USB 2.0, 1 x RS-232/422/485, 5 x RS-232
Storage 1 x SATA (6 Gb/s), 1 x M.2 Key B
Expansion 1 x M.2 Key B, 1 x M.2 Key E
Operative range -40°C to 70°C
Power 12V DC Input
