General Features
CPU Intel® Skylake LGA 1151 for i7/i5/i3, 65W/35W processor
Chipset Intel® Q170
RAM 2 x 256-pin , DDR4 / 2133 MHz up to 16GB, ECC support
LAN 2 x GigE RJ45

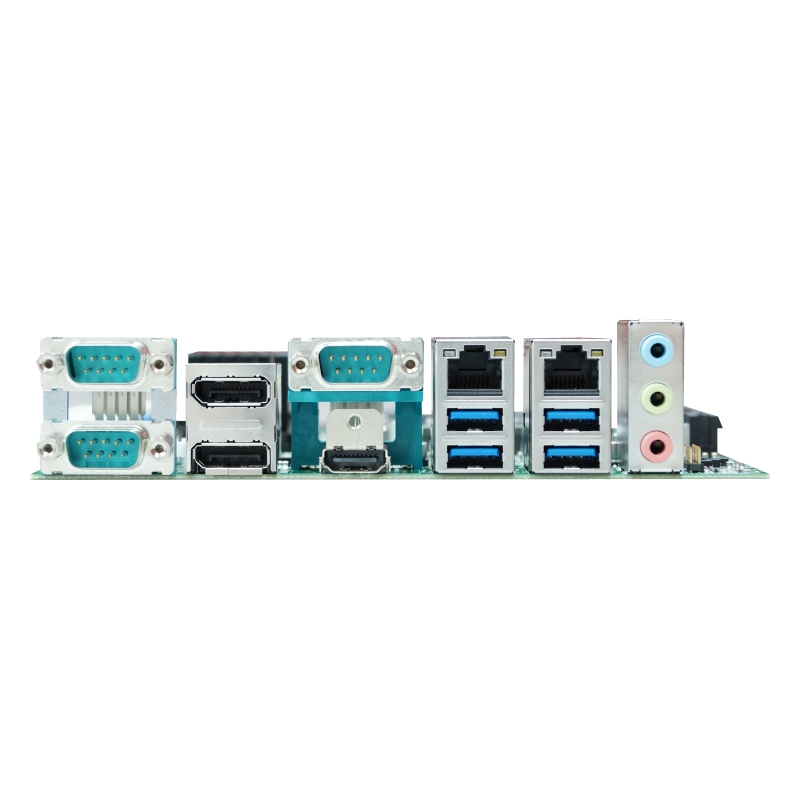

I/O 4 x USB 3.0, 4 x USB 2.0, 1 x RS-232/422/485, 5 x RS-232, 1 x 8-bit GPIO
Storage 4 x SATA (6 Gb/s), 1 x M.2 Key B+M
Expansion 1 x PCIe x16, 1 x mPCIe
Operative range 0°C – 60°C
Power 12V DC
