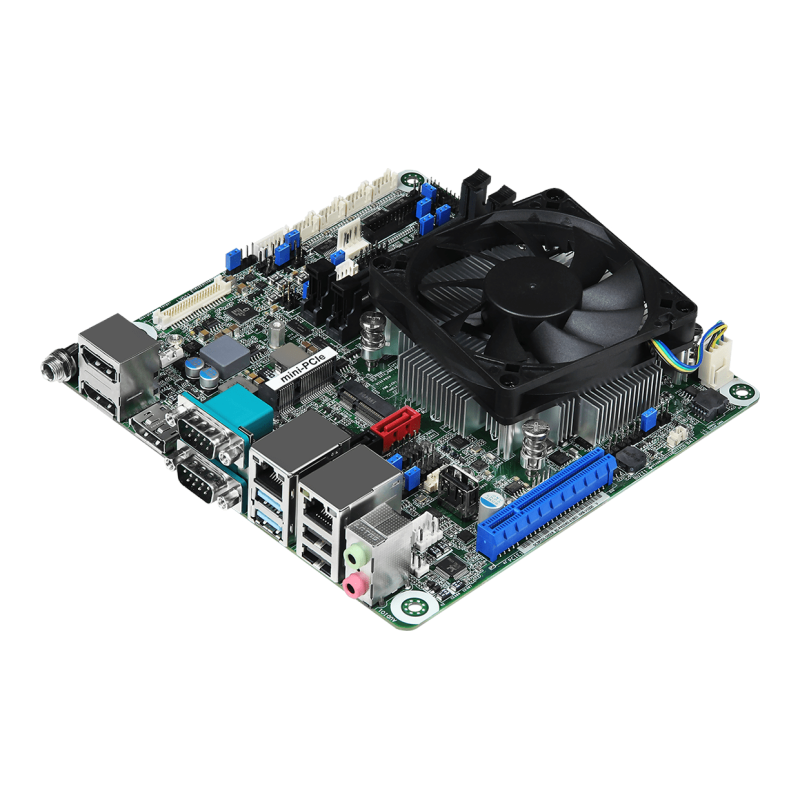

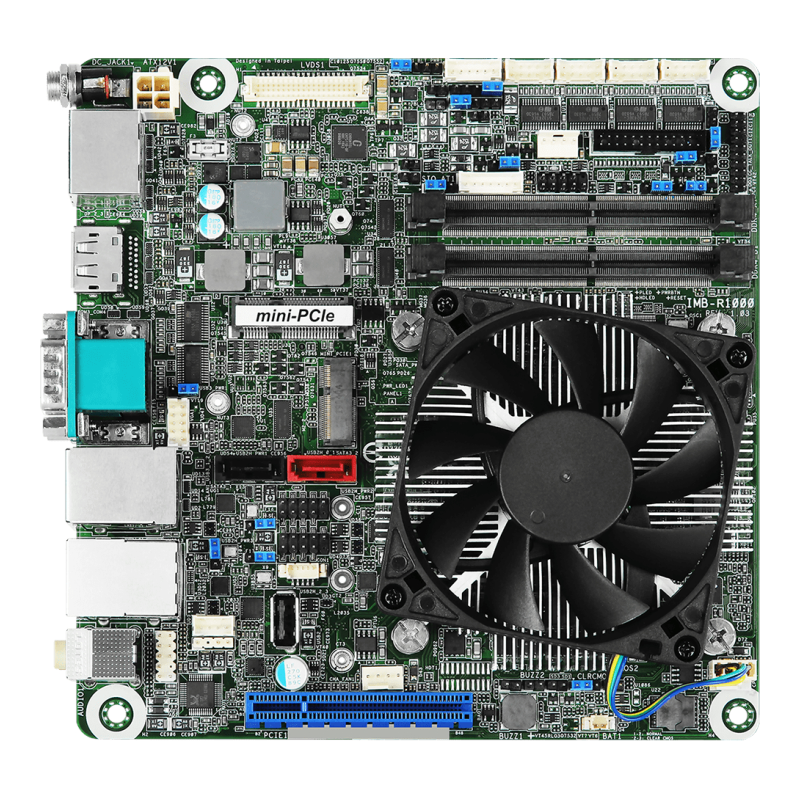

General Features
CPU AMD Ryzen Embedded V1000 series
RAM Supports Dual Channel DDR4 SO DIMM, up to 32GB
LAN 2 x Realtek LAN

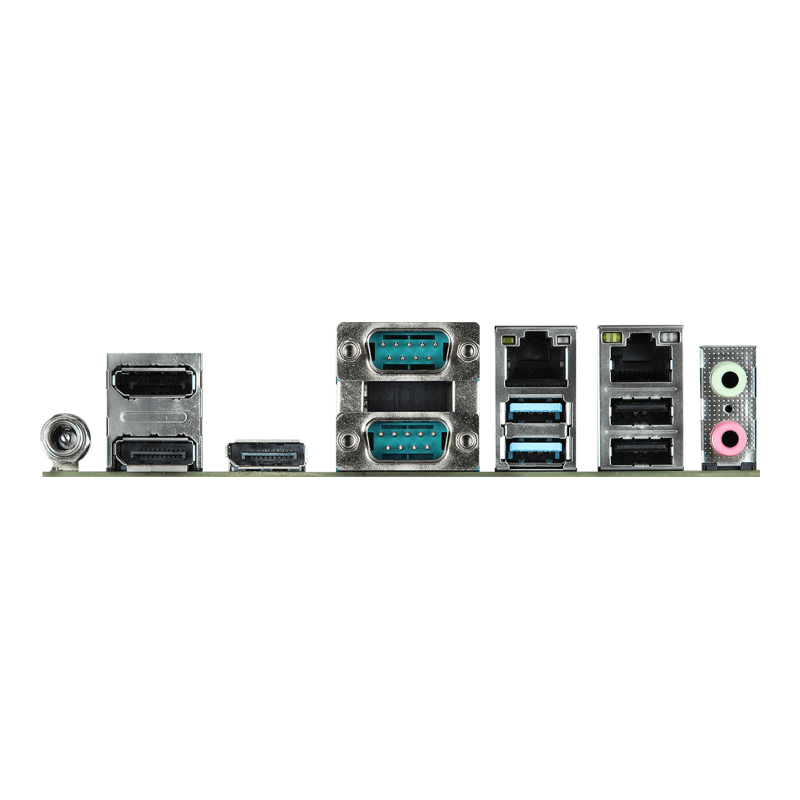

I/O 4 x Displayport, 1 x eDP, 1 x Dual Channel 24-bit LVDS, 1 x VGA, 2 x USB3.1 (Gen2), 8 xUSB2.0, 6 x COM
Storage 2 x SATA3
Expansion 1 x PCIe x8, 1 x mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
Operative range 0ºC – 60ºC
Power 12V/19~28V (DC-iN & 4-pin ATX PWR Con)
