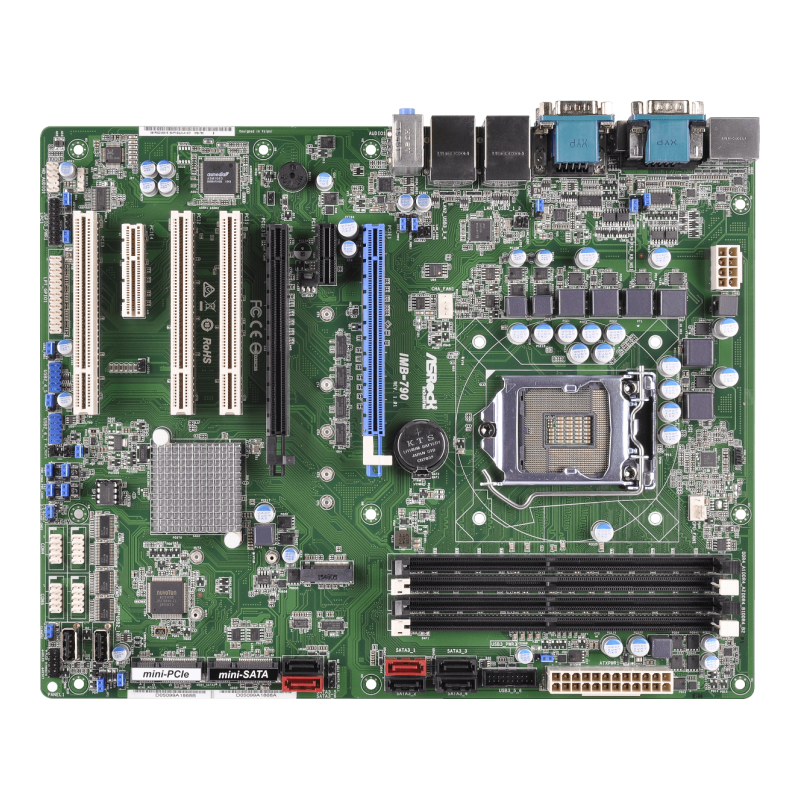

IMB-790

INDUSTRIAL SBC

6th Generation Intel® CoreTM Processors, LGA 1151 Socket, Q170 Chipset, Supports Dual Channel DDR4 2133MHz, 4 x Long-DIMM, up to 64GB system memory, 1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x8, 3 x PCI, 1 x PCIe x4 slot, 1 x Mini-PCIe, 1 x M.2 (Key M), 2 Gigabit LAN, 6 xUSB 3.0, 6 x USB 2.0, 6 COM,



General Features

– 6th Generation Intel® CoreTM Processors, LGA 1151 Socket
– Q170 Chipset
– Supports Dual Channel DDR4 2133MHz, 4 x Long-DIMM, up to 64GB system memory
– 1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x8, 3 x PCI, 1 x PCIe x4 slot, 1 x Mini-PCIe, 1 x M.2 (Key M).
– 2 Gigabit LAN, 6 xUSB 3.0, 6 x USB 2.0, 6 COM.

Technical Features
Processor System
Dimension ATX (12-in x 9.6-in)
CPU Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S)
Core Number (By CPU, Max 4)
Max Speed (By CPU)
L2 Cache (By CPU)
Chipset Intel® Q170
BIOS UEFI
Expansion Slot
PCIe 1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x8, 3 x PCI, 1 x PCIe x4 slot
(PCIe x8 shared PCIe x16)
Mini PCIe 1 (half/full size, supports PCIe x1 and USB device)
M.2 1
mSATA 1 (full size, shared SATA and USB device
Memory
Technology Dual Channel DDR4 2133MHz
Max. 64GB
Socket 4 x Long-DIMM
Graphics
Controller Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4
VRAM Shared Memory
VGA Supports max resolution up to 1920 x 1200
LVDS No
eDP No
HDMI No
DVI No
DisplayPort Supports max resolution up to 4096 x 2160@60Hz
Multi Display Yes (Triple Display)
Ethernet
Interface 10/100/1000 Mbps
Controller 1 x Intel I210, 1 x Intel I219LM
Connector 2 x RJ45
SATA
Max Data Transfer Rate
 SATA3 (6.0Gb/s)

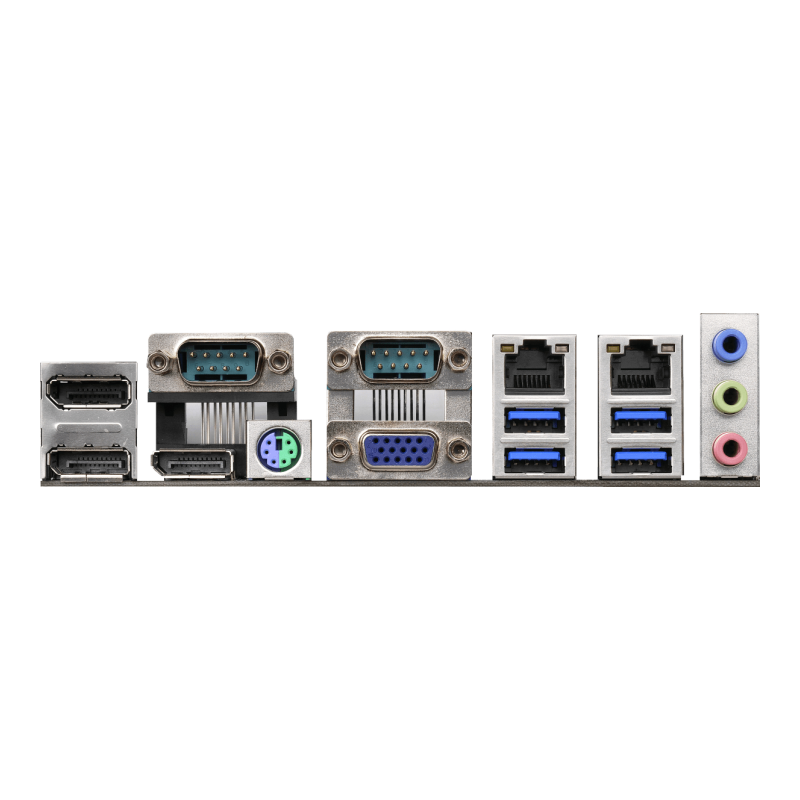

Rear I/O
VGA 1
DVI 0
HDMI 0
DisplayPort 3
Ethernet 2
USB 4 x USB 3.0
Audio 3 (Mic-in, Line-in, Line-out)
Serial 2 x COM (RS-232/422/485)
PS/2 1 x PS/2 combo
Internal Connector
USB 2 x USB 3.0 (1 x USB3.0 header)
6 x USB 2.0 (2 x 2.54 pitch header, 2 x USB2.0 Type-A vertical con)
LVDS/inverter 0/0
eDP 0
VGA 0
Serial 4 x COM (supports RS-232 only)
SATA 6 (one shared with mSATA)
mPCIe 1
Parallel 1
mSATA 1
IrDA 0
GPIO 8 x GPI + 8 x GPO
SATA PWR Output Con 0
Speaker Header 1
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR ATX PWR Con (24+8-pin)
Power On AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Operating Temperature 0ºC – 60ºC
