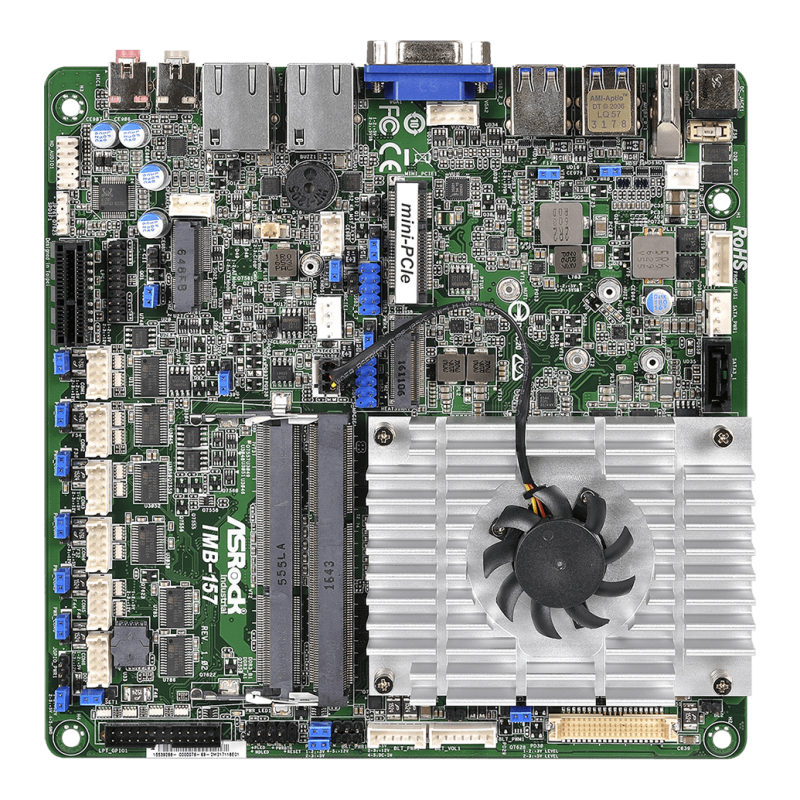

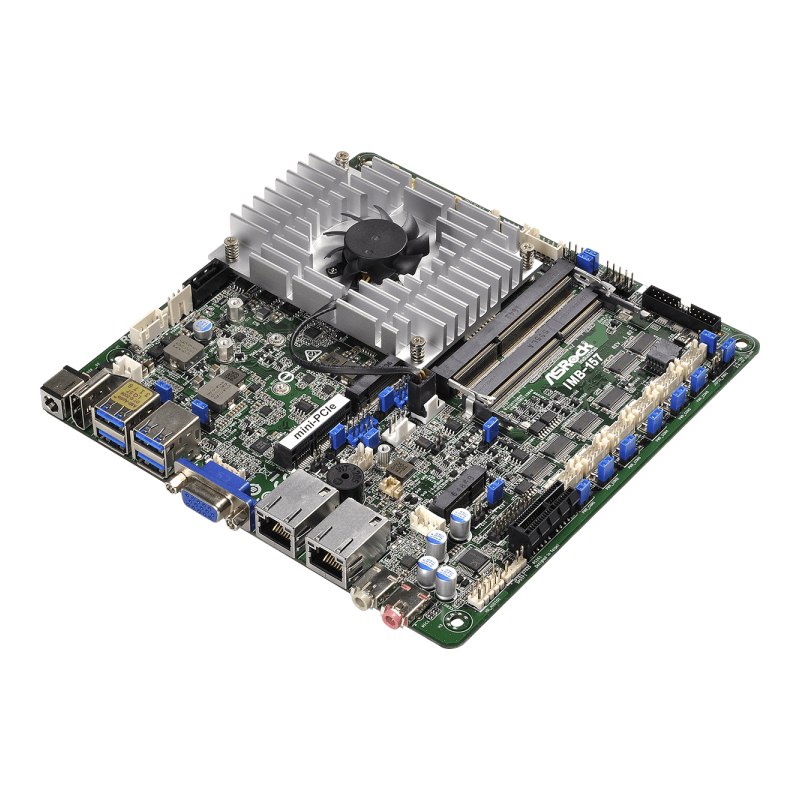

IMB-157
-Intel® Apollo Lake,2 x DDR3 1867MHZ up to 16GB,2 x lan, 4 x USB3.0, 4 x USB2.0, 6 x com, 1 x PCI-e X16+1 X1, 1 x Full-Size Mini-PCIe+ 1 x Half-Size
General Features
- Intel® Apollo Lake
- 2 x DDR3 1867MHZ up to 16GB
- 2 x lan, 4 x USB3.0, 4 x USB2.0, 6 x com, 1 x PCI-e X16+1 X1, 1 x Full-Size Mini-PCIe+ 1 x Half-Size
Technical Features
| Dimension | Mini-ITX (6.7-in x 6.7-in) |
| CPU | BGA1296 for Intel® Apollo Lake SoC |
| Core Number | (By CPU, Max 4) |
| Max Speed | (By CPU) |
| L2 Cache | (By CPU) |
| Chipset | N/A |
| BIOS | UEFI |
| Expansion Slot | |
| PCIe | 1 x PCIe x1 slot |
| Mini PCIe | 1 (full/half size) with PCIe x1 and USB 2.0 (Shared) |
| M.2 | 1 x M.2 (KEY M, 2242/2260) with SATA III signal for SSD |
| 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 (Shared) for Wireless | |
| mSATA | 0 |
| Memory | |
| Technology | Dual Channel DDR3L 1867MHz |
| Max. | 16GB |
| Socket | 2 x SO-DIMM |
| Graphics | |
| Controller | Intel® HD Graphics |
| VRAM | Shared Memory |
| VGA | Supports max resolution up to 1920 x 1200 |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| eDP | Supports max resolution up to 4096 x 2160@60Hz |
| HDMI | Supports max resolution up to 4096 x 2160@24Hz |
| DVI | No |
| DisplayPort | No |
| Multi Display | Yes (Triple Display) |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | 2 x Realtek RTL8111G |
| Connector | 2 x RJ45 |
| SATA | |
| Max Data Transfer Rate SATA3 (6.0Gb/s) | |

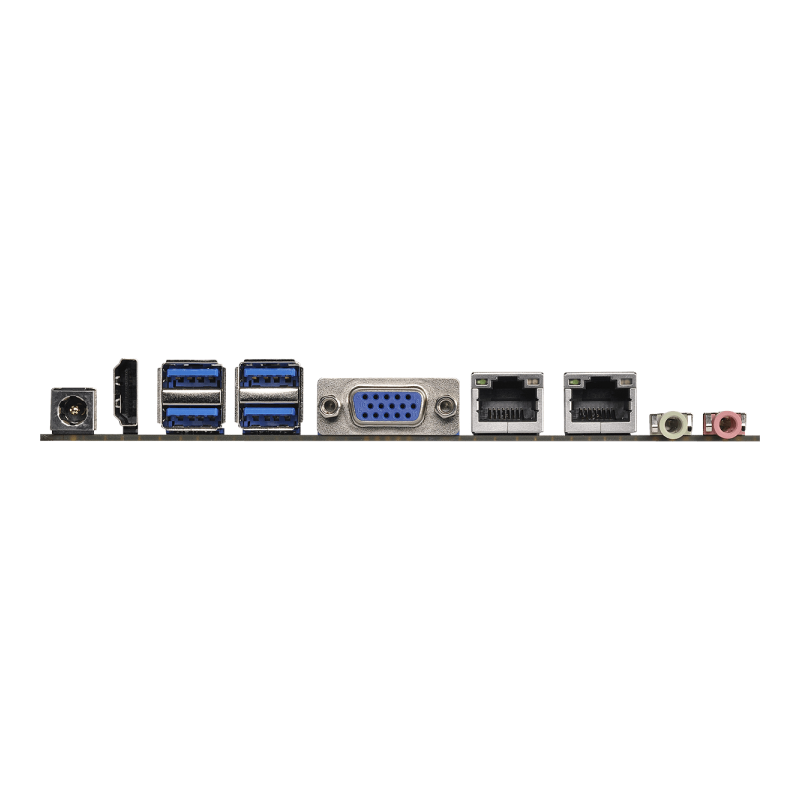

| Rear I/O | |
| VGA | 1 |
| DVI | 0 |
| HDMI | 1 |
| DisplayPort | 0 |
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| Serial | 0 |
| PS/2 | 0 |
| Internal Connector | |
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
| LVDS/inverter | 1_1 |
| eDP | 1 |
| VGA | 1 |
| Serial | 6 x COM (COM1and COM2 with RS232/422/485 support |
| SATA | 1 |
| mPCIe | 1 |
| Parallel | 1 (shared with GPIO) |
| mSATA | 0 |
| IrDA | 0 |
| GPIO | 8 x GPI + 8 x GPO (shared with LPT header) |
| SATA PWR Output Con | 1 |
| Speaker Header | 1 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec/min |
| Power Requirements | |
| Input PWR | +12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con) |
| Power On | AT/ATX Supported |
| AT : Directly PWR on as power input ready | |
| ATX : Press button to PWR on after power input ready | |
| Environment | |
| Operating Temperature 0ºC – 60ºC |
