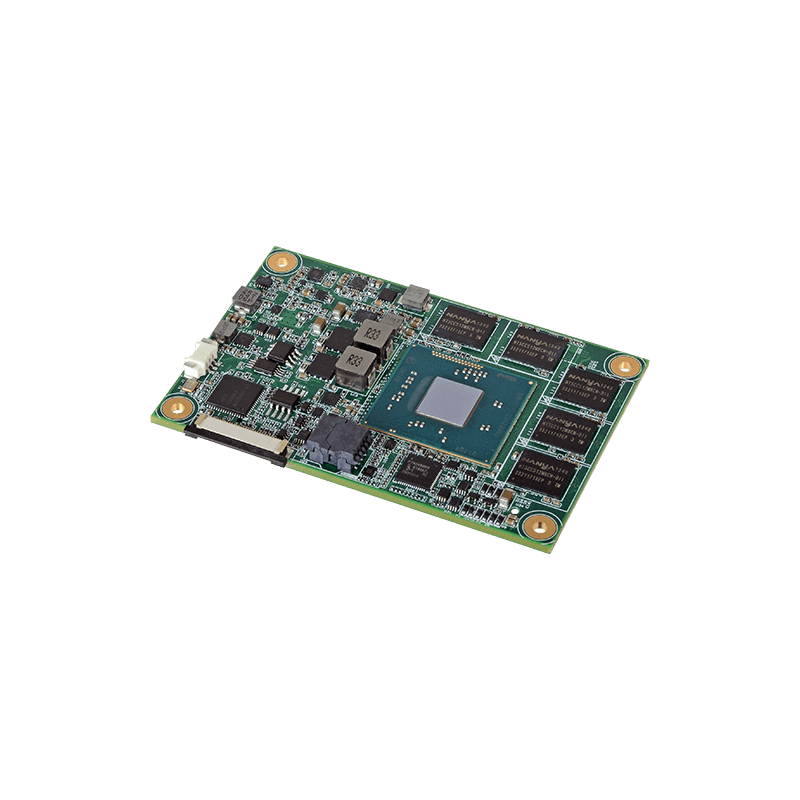

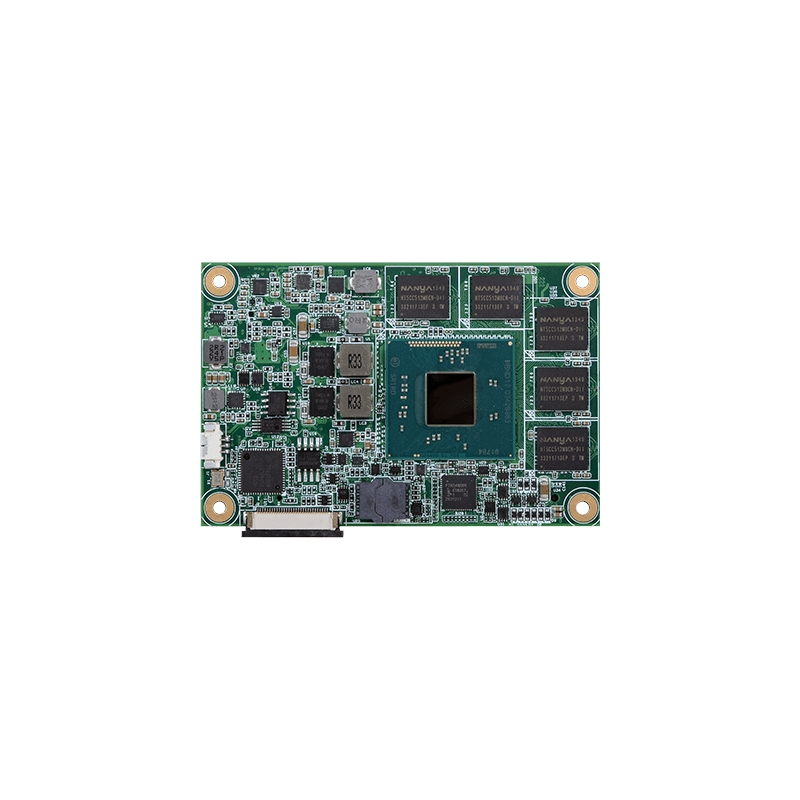

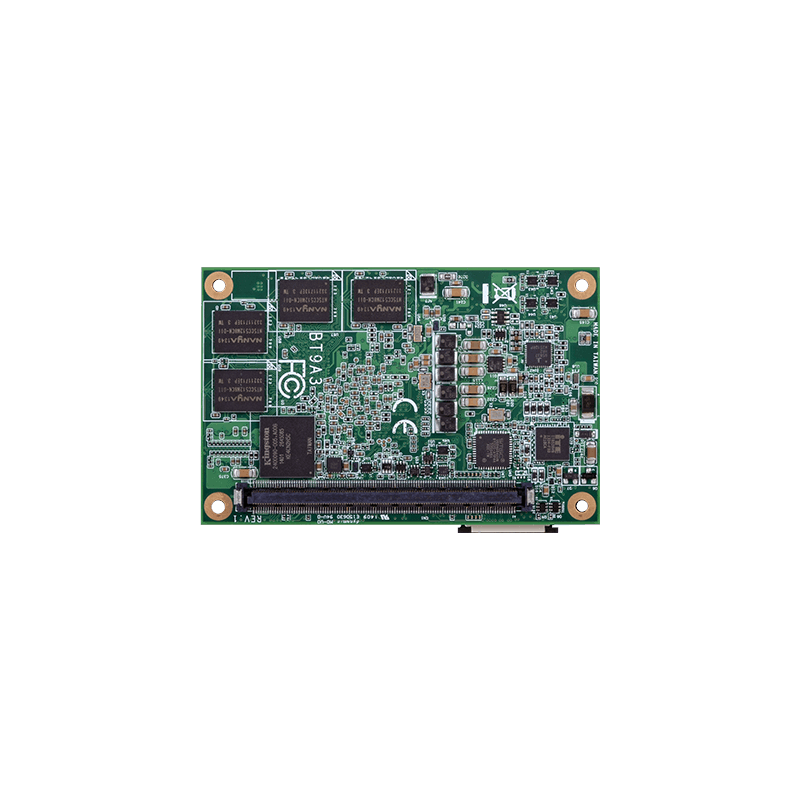

Download Datasheet BT9A3
For requests regarding drivers, documentation and application notes, contact technical support,
Request Information
General Features
CPU Intel® Atom™/Intel® Celeron® processors
RAM Single Channel, LPDDR3 Memory Down up to 4GB
LAN 1 x GigE LAN
I/O 1 x USB 3.0, 8 x USB 2.0, 1 x 8-bit GPIO
Storage 2 x SATA (3 Gb/s), eMMC (Option)
Expansion 3 x PCIe x1
Operative range Depends On Operative Condition
Power ATX/AT
