Download Datasheet AL701
For requests regarding drivers, documentation and application notes, contact technical support,
Request Information
General Features

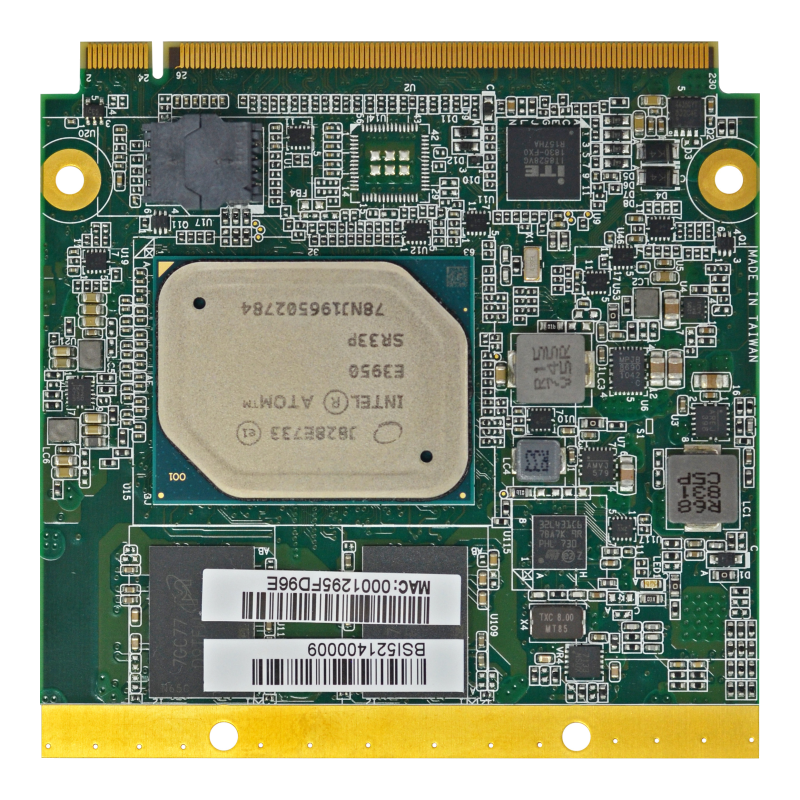

CPU Intel Atom® Processor E3900 Series
RAM Dual Channel, LPDDR4 Memory Down up to 8GB
LAN 2 x GigE LAN
I/O 1 x USB 3.0, 8 x USB 2.0, 1 x 4-bit GPIO (3 x USB 3.0, 4 x USB 2.0 Option)
Storage 2 x SATA (6 Gb/s), 1 x eMMC up to 32 GB
Expansion 4 x PCIe x1
Operative range 0°C to 60°C, -40 to 85°C (Option)
Power 5V DC
