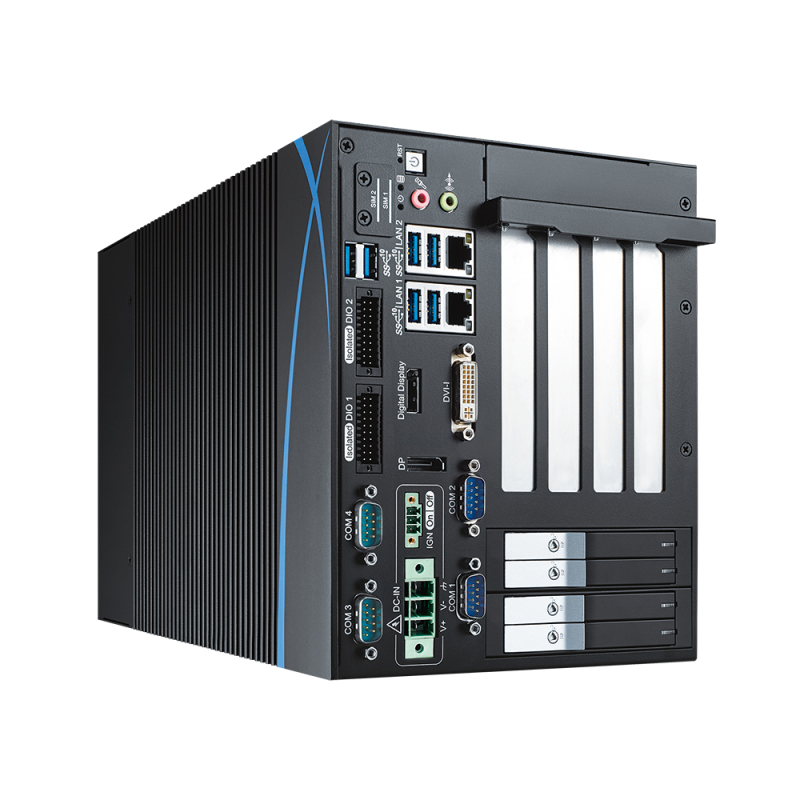

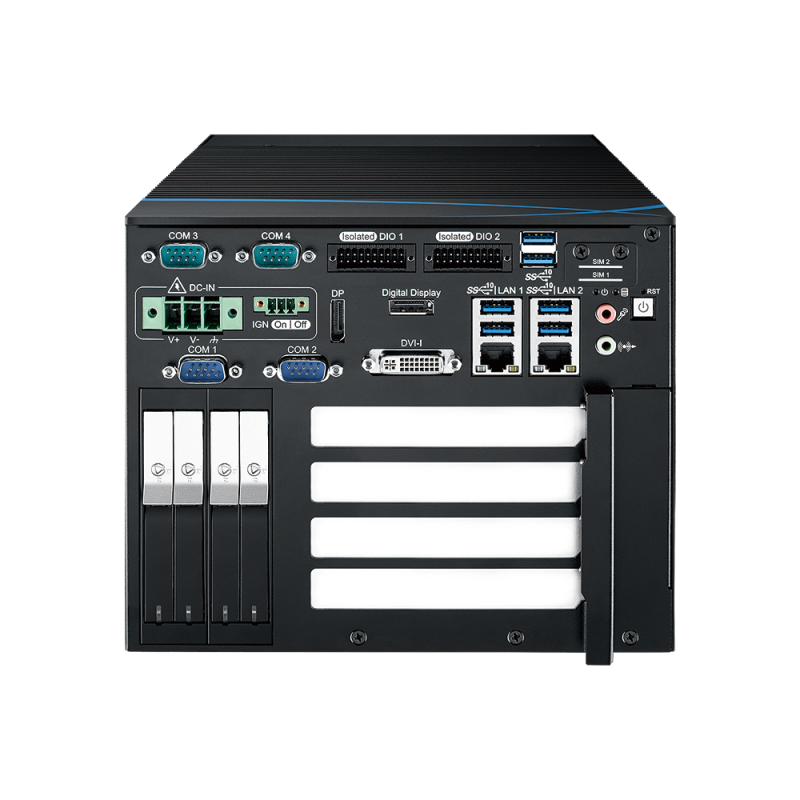

RCX-1430FR
General Features
– 6 Cores 8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee
Lake-S) with workstation-grade Intel® C246 Chipset
– 4 DDR4 2666MHz Memory, up to 128GB (ECC/Non-ECC)
– 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
– Rugged & Fanless design, -40°C to 75°C Operating Temperature
– 2 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
– 4 Front-access 2.5″ SSD Tray, RAID 0, 1, 5, 10 supported
– 3 PCIe Slot : 1 PCIe x16, 1 PCIe x4, 1 PCIe x1
– Supports max 300W Power Budget for independent graphics operation
– 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
– 2 M.2 Socket : 1 M.2 Key M, 1 M.2 Key E
– 6V to 36V DC Power Input with 80V Surge Protection
– Configurable Ignition Power Control
Technical Features
| SYSTEM | |
| Processor | 6 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (Coffee Lake-S) |
| Chipset | Intel® C246 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC) |
| I/O INTERFACE | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB | 6 USB 3.1 Gen 2 (External) |
| 1 USB 2.0 (Internal) | |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, Wireless |
| SIM Card | 2 External SIM Card Socket |
| EXPANSION | |
| Mini PCIe | 2 Full-size for PCIe/USB/External SIM Card/mSATA |
| M.2 | 1 M.2 Key E Socket |
| PCIe | 1 PCIe x16, 1 PCIe x4, 1 PCIe x1 |
| GRAPHICS | |
| Graphics Processor | Intel® UHD Graphics P630/630 |
| Interface | 1 DVI-I : Up to 1920 x 1200 @ 60Hz |
| 2 DisplayPort : Up to 4096 x 2304 @ 60Hz | |
| STORAGE | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 2 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device | 4 Front-access 2.5″ SSD/HDD Tray |
| 1 M.2 Key M Socket (Internal) | |
| AUDIO | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| ETHERNET | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel® I210 GigE LAN |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| SOFTWARE SUPPORT | |
| OS | Windows 10, Linux |
| MECHANICAL | |
| Dimensions | 330.0mm x 210.0mm x 172.0mm (12.99″ x 8.27″ x 6.77″) |
| Weight | 5.3 kg (11.7 lb) |
| Mounting | Wallmount by mounting bracket |
| ENVIRONMENT | |
| Operating Temperature | 35W TDP CPU : -40°C to 75°C (-40°F to 158°F) |
| 65W TDP CPU : -40°C to 55°C (-4°F to 131°F) | |
| 80W TDP CPU : -40°C to 45°C (-4°F to 113°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 75°C |
| Shock | IEC 60068-2-27 |
| SSD : 50G @ wallmount, Half-sine, 11ms | |
| Vibration | IEC 60068-2-64 |
| SSD : 5Grms, 5Hz to 500Hz, 3 Axis | |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
