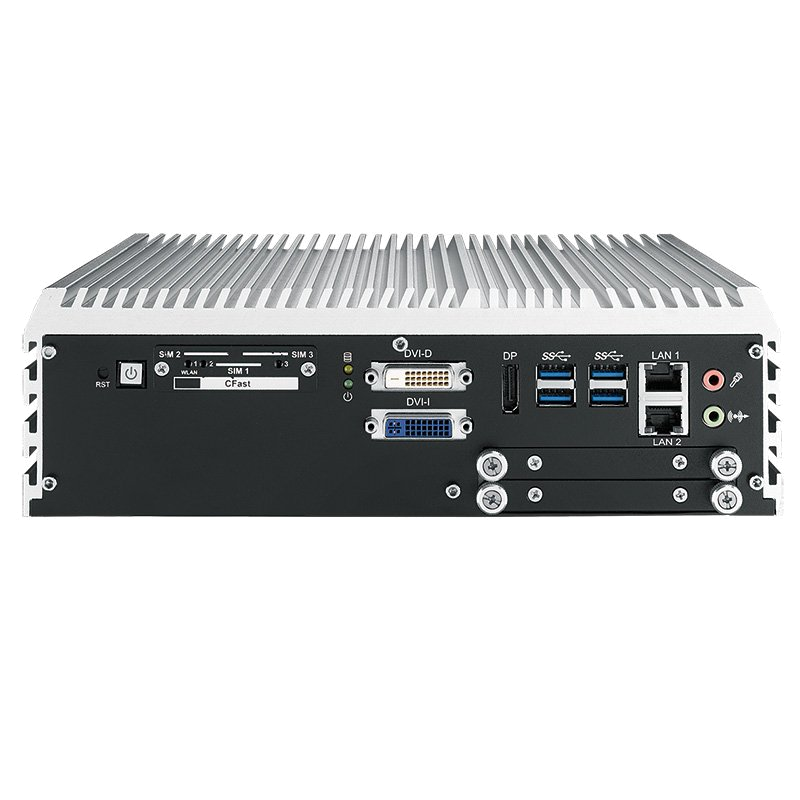

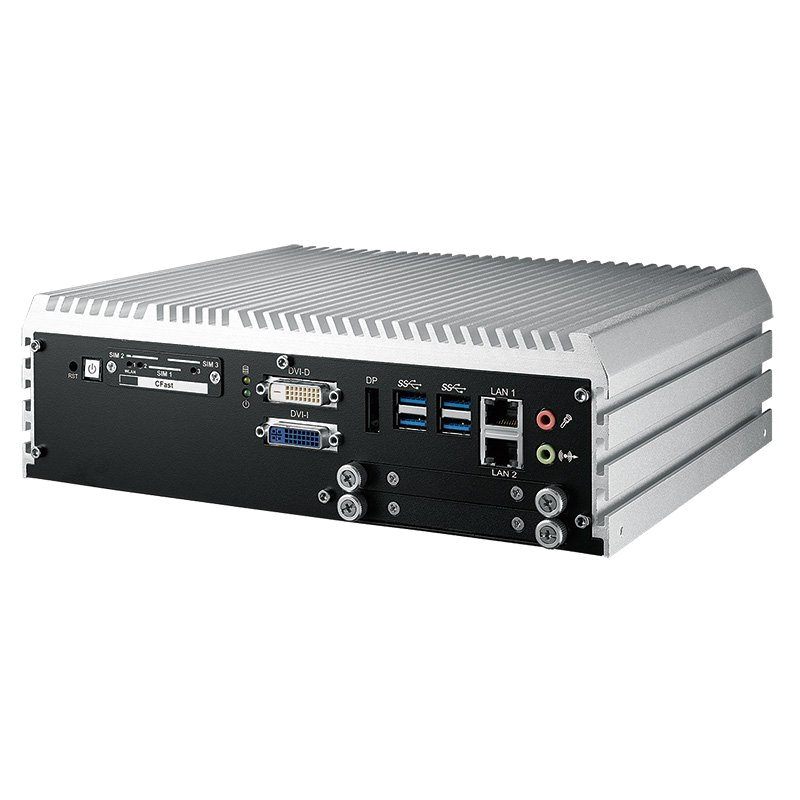

Fanless Box PCs

Intel® Core™ i7/i5/i3, Intel® C236, 2 DDR4 2133MHz up to 32GB, 2 LAN, 4 COM, 8 USB 3.0, 1 USB 2.0, 16 Isolated DIO, 3 Mini PCIe Socket, 1 PCIe x16 Slot, 1 M.2 Socket (Key ID : M)

General Features
  • Intel® Core™ i7-6700/i7-6700TE/i5-6500/i5-6500TE/i3-6100/i3-6100TE
  • Intel® C236
  • 2 DDR4 2133MHz up to 32GB
  • 2 LAN, 4 COM, 8 USB 3.0, 1 USB 2.0, 16 Isolated DIO, 3 Mini PCIe Socket, 1 PCIe x16 Slot, 1 M.2 Socket (Key ID : M)
Technical Features
Processor Intel® Core™ i7-6700/ i7-6700TE/ i5-6500/ i5-6500TE/i3-6100/ i3-6100TE Processor (Skylake-S)
Chipset Intel® C236
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial 4 COM RS-232/ 422/ 485
USB 8 USB 3.0 (External : 4 Front, 4 Rear)
1 USB 2.0 (Internal)
GPIO 16 GPIO (External)
LED Power, HDD, Wireless
SIM Card 3 SIM Card Socket (External)
Mini PCIe 3 Full-size Mini PCIe Socket for PCIe/ USB/ External SIM
Card/ mSATA
PCI/ PCIe 1 PCIe x16 Slot (Up to 160W Power Budget)
M.2 1 M.2 Socket (Key ID : M)
Processor Intel® HD Graphics 530
Display Memory Shared Memory, up to 1.7GB
Interface DVI-I : Up to 1920 x 1200 @ 60Hz
DVI-D : Up to 1920 x 1200 @ 60Hz
DisplayPort : Up to 4096 x 2304 @ 60Hz
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device 1 CFast Socket, Push-in/ Push-out Ejector
2 Front-access 2.5″ SSD/ HDD Tray
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Mini-DIN 4-pin
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Manegement Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Dimensions (W x L x H) 260mm x 215mm x 79mm (10.24” x 8.46” x 3.11”)
Weight 3.8 kg (8.38 lb)
Mounting Wallmount by mounting bracket
Din Rail Mount (Optional)
2U Rackmount (Optional)
Operating Temperature 35W TDP CPU (i7-6700TE, i5-6500TE, i3-6100TE) :
-40°C to 75°C (-40°F to 167°F)
65W TDP CPU (i7-6700, i5-6500, i3-6100) :
-40°C to 55°C (-40°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Certification CE, FCC, EN50155, EN50121-3-2

Contact us for more information about Expandable Systems ECS-9110
