3,5"

Prodotti SBC e Motherboard SBC Embedded
 | 3,5

3,5"

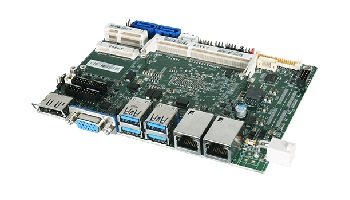

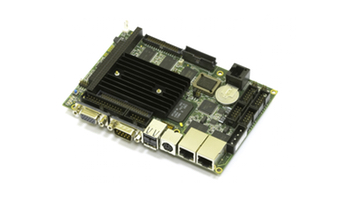

I Single Board Computer in formato 3.5", rispetto a formati meccanici più compatti, mettono a disposizione nativamente porte standard di I/O come uscite video ed USB, pur mantenendo dimensioni contenute (146 x 102 mm) che non alterano significativamente la capacità di integrazione della scheda anche in prodotti di dimensioni ridotte.

11th Gen i3/i5/i7 Intel® Core

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
EMBC-5000
2 6 - 2 - 2 4 - - - 9-55V

8/9th Gen i3/i5/i7 Intel® Core

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
CS551
2 2 - 4 1 1 - - 1 12V Non disponibile

8th Gen i3/i5/i7 Intel® Core

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
EMBC-3000
2 4 - 4 - - 4 - - 2 9-48V
SBC-350
2 2 - 6 - 3 4 - - - 12-36V
WL551
3 2 - 4 - 3 1 - - - 12V

Intel® Atom Apollo Lake

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
SBC-230/SBC-230M-WT
2 4 2 - - 4 - - 2 9-36V
SBC-240
2 4 - 2 2 4 - - - 12V
AL551
2 4 2 - 1 2 - - 1 12V Non disponibile

Intel® Atom Braswell

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
BW551
2 2 4 - - 4 - - 2 12V

Intel® Atom Bay Trail

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
BT551/BT553
2 5 1 - - 3 - - 1 -

Freescale i.MX6

Model LAN USB 2.0 USB 3.0 USB 3.1 USB 3.2 M.2 COM PCI PCIe Mini PCIe Power DM
SBC2100
1 3 - - - 4 - - 1 9-36V
