SBC 3,5

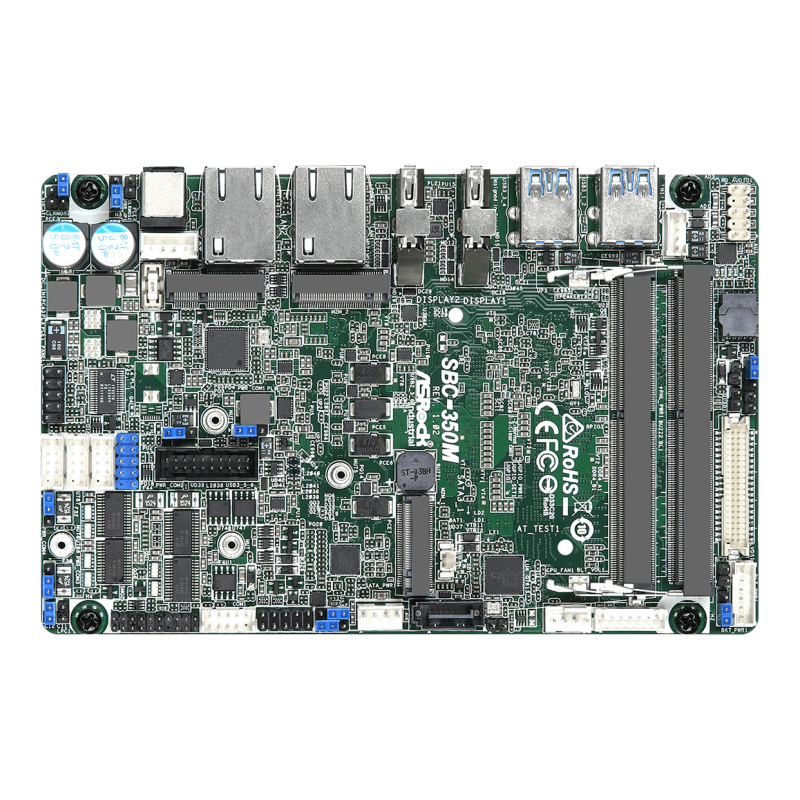

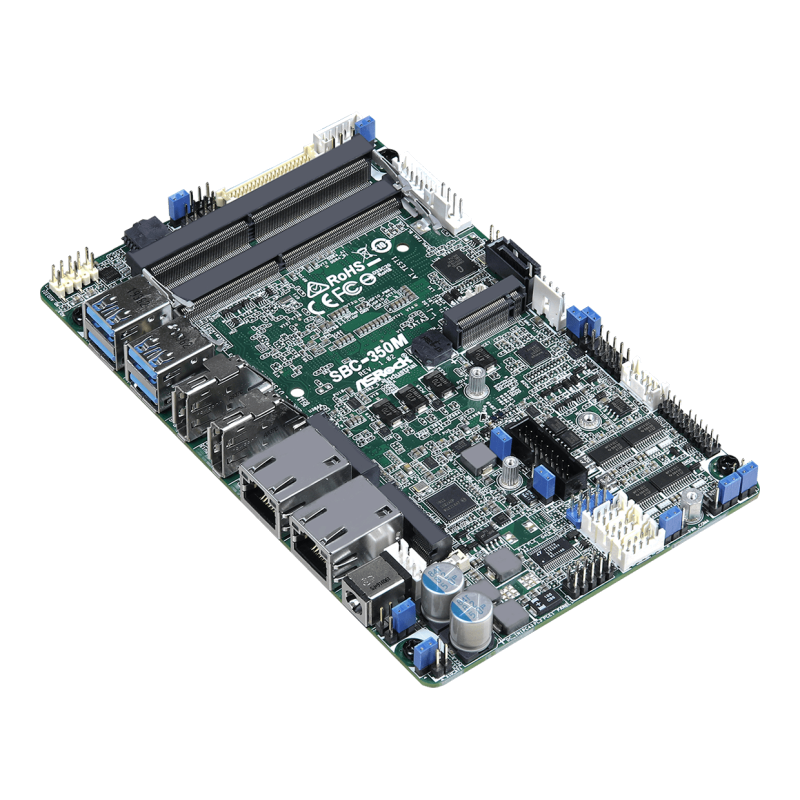

SBC-350

Solution provider for Embedded and Industrial PC
Caratteristiche generali

– Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
– Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
– 2x DisplayPort, 1 x LVDS
– 6xUSB 3.1, 2xUSB 2.0, 1xSATA3, 4x COM
– 2xM.2 Key M, 1xM.2 Key E
– 2xIntel LAN
– 12V~36V or 12V DC-IN
– 1xTPM 2.0 (Option)

Caratteristiche Tecniche
PROCESSOR SYSTEM
Dimension 3.5″SBC (6.3-in x 4.0-in)
CPU Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
– SBC-350P (i7-8665UE ,QC, 1.7GHz, 15 W)
– SBC-350M (i5-8365UE, QC, 1.6GHz ,15 W)
– SBC-350V(i3-8145UE ,DC, 2.2GHz, 15W )
Chipset SoC
EXPANSION SLOT
PCIe N/A
Mini-PCIe N/A
M.2 1 x Key M (2242/2280)with PCIex4 and SATA3 for SSD
1 x Key M (2242)with SATA3 for SSD
1 x Key E (2230)with PCIe x1, CNVI and USB 2.0 for Wireless
mSATA N/A
MEMORY
Technology Dual Channel DDR4 2400MHz
Max. 32GB
Socket 2 x SO-DIMM
GRAPHICS
VGA N/A
LVDS 1920 x 1200@60Hz
eDP N/A
HDMI N/A
DVI N/A
DisplayPort DisplayPort++ 1.2 with max resolution up to 4096 x 2304@60Hz
Multi Display Triple Display
Interface 10/100/1000 Mbps
Controller 1 x Intel® I219LM, 1 x Intel® I210

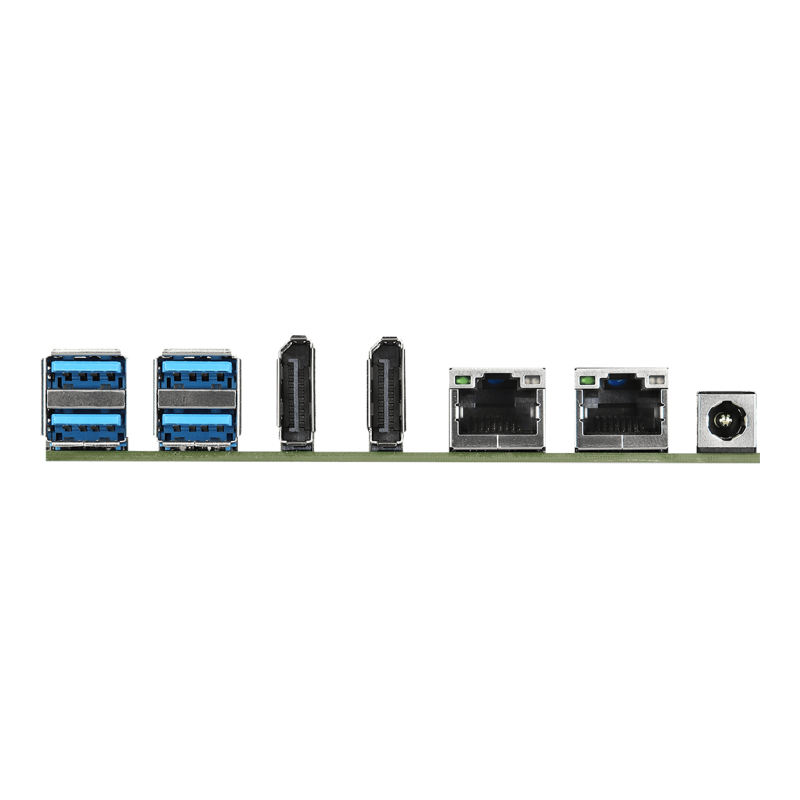

REAR I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 2
Ethernet 2
USB 4 x USB 3.1
Audio Jack N/A
Serial N/A
PS/2 N/A
INTERNAL CONNECTOR
USB 2 x USB 2.0, 2 x USB 3.1
LVDS 1
eDP 0
VGA 0
Serial 1 x COM (RS232/422/485), 3 x COM (RS232)
SATA 1 x SATA3 (6.0 Gb/s)
Parallel N/A
GPIO 4 x GPI, 4 x GPO
SATA PWR Output Con 1
Speaker Header 1
TPM 1 x TPM 2.0 onboard IC (Option)
WATCHDOG TIMER
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
POWER REQUIREMENTS
Input PWR 12V~36V or 12V DC-IN
Power On AT/ATX Supported
AT : Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
ENVIRONMENT
Operating Temperature 0ºC – 60ºC
Storage Temperature -40ºC – 85° C
