SBC 3,5

EMBC-3000

Solution provider for Embedded and Industrial PC
Caratteristiche generali

– 8th Generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake) supports up to 40% greater productivity than former generation solution
– Fanless -40°C to 85°C Operating Temperature
– DDR4 2400MHz memory, up to 32GB
– Multiple DisplayPort, DVI and dual channel 24-bit LVDS display interfaces support triple independent displays
– 4-port USB 3.1 Gen 2 supports up to 10Gbps data transfer
– 2 Independent GigE LAN, iAMT 12.0 supported
– SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
– 4 COM RS-232/422/485, 2 SATA III, 1 mSATA
– Supports full function SUMIT A, B expansion
– 9V to 48V DC wide range Power Input
– Ignition Power Control, TPM 2.0
– Easy to customize for low-profile system applications One-stop SUMIT Expansion Design and Manufacturing Services

Caratteristiche Tecniche
SYSTEM
Processor Quad Core Intel® Core™ i7/i5/i3 Processor (Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
OS Windows 10, Linux
GRAPHICS
Processor Intel® UHD Graphics 620
Interface Triple independent display :
– DVI-D : Up to 1920 x 1200 @60Hz
– DisplayPort : Up to 4096 x 2304 @60Hz
– LVDS : Dual channel 24-bit, up to 1920 x 1200
ETHERNET
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
I/O INTERFACE

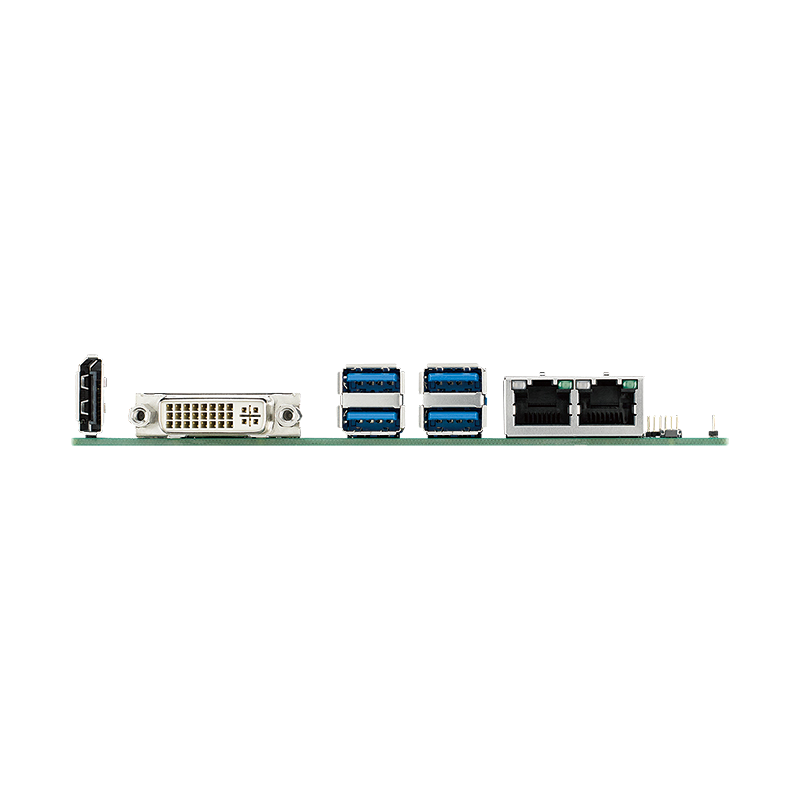

Front I/O – 1 DVI-D Connector
– 1 DisplayPort Connector
– 4 USB 3.1 Connector
– 2 RJ45 Connector
– 1 Mic-in
– 1 Line-out
– 1 Power Button
– 1 Reset Button
– 1 HDD LED
– 1 Power LED

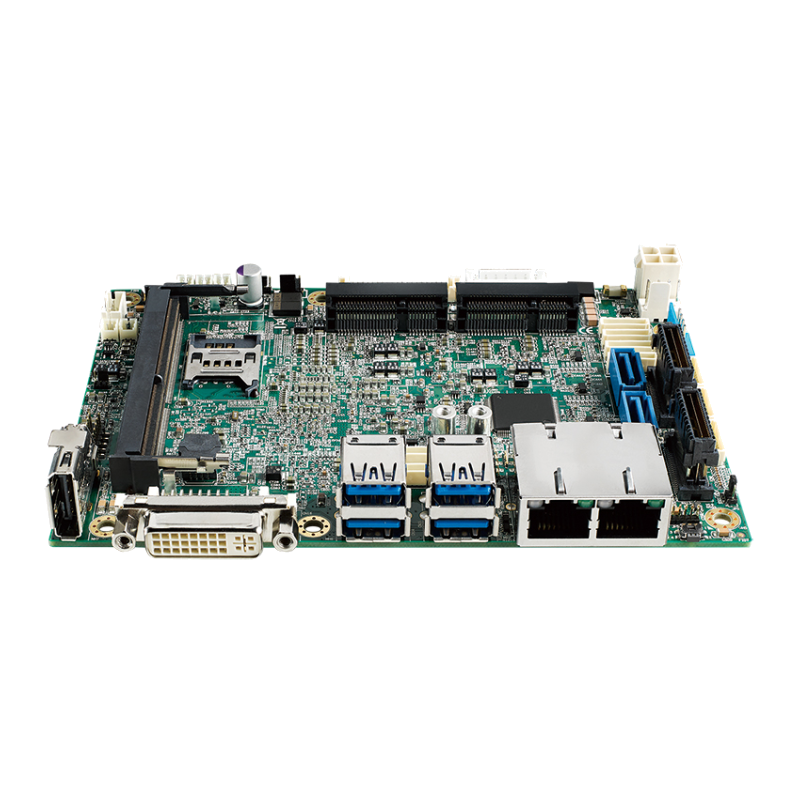

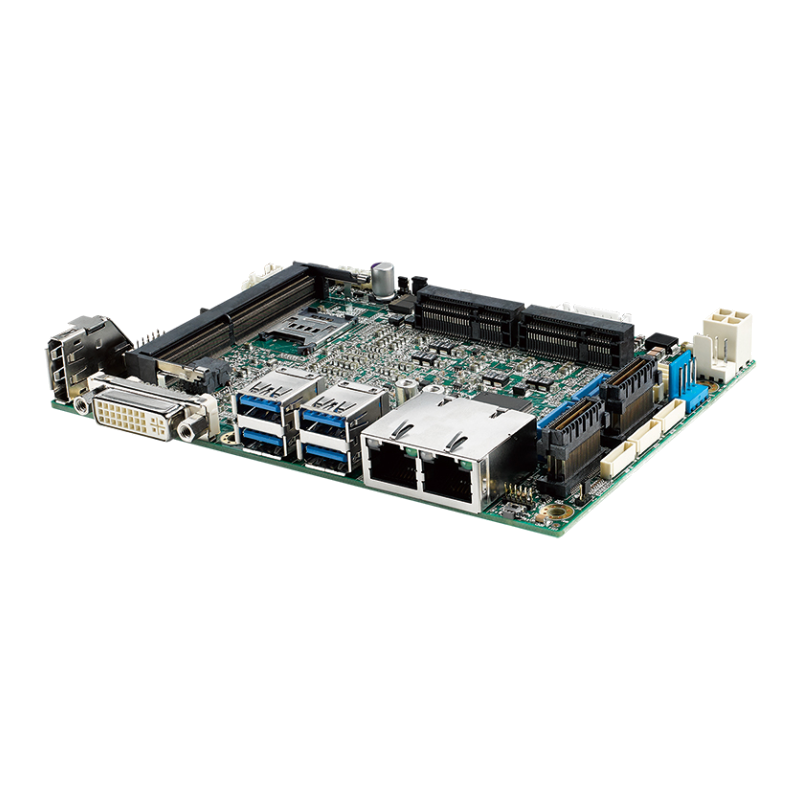

Internal I/O – 1 ATX 4-pin Power Connector
– 1 SUMIT A Connector (Optional)
– 1 SUMIT B Connector (Optional)
– 4 COM RS-232/422/485 Connector
– 2 Mini PCIe Connector
– 1 SIM Card Socket
– 1 DDR4 SO-DIMM Socket
– 1 LVDS Connector
– 1 LVDS Backlight Connector
– 2 SATA Data Connector
– 1 SATA Power Connector
– 1 GPIO Header
– 1 Fan Connector
– 2 USB 2.0 Wafer with 4 ports
– 1 Power On/Off Header
STORAGE
SATA 2 SATA III (6Gbps)
mSATA 1 SATA II (Mini PCIe Type, 3Gbps)
EXPANSION
SUMIT – 1 SUMIT A Connector
– 1 SUMIT B Connector
Mini PCIe 2 Mini PCIe Socket :
– 1 Mini PCIe for PCIe/USB/SIM Card
– 1 Mini PCIe for PCIe/USB/Optional mSATA
POWER
Power Input 9V to 48V DC-in
Power Interface ATX Power Connector
Ignition Control 16 Model (Internal)
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats
MECHANICAL
Dimensions 146mm x 102mm (5.75″ x 4.02″)
ENVIRONMENT
Operating Temp. -40°C to 85°C (-40°F to 185°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, Non-condensing
Relative Humidity 95% at 85°C
EMC CE, FCC

Contattaci per maggiori informazioni su 3,5 EMBC-3000
