SBC 3,5

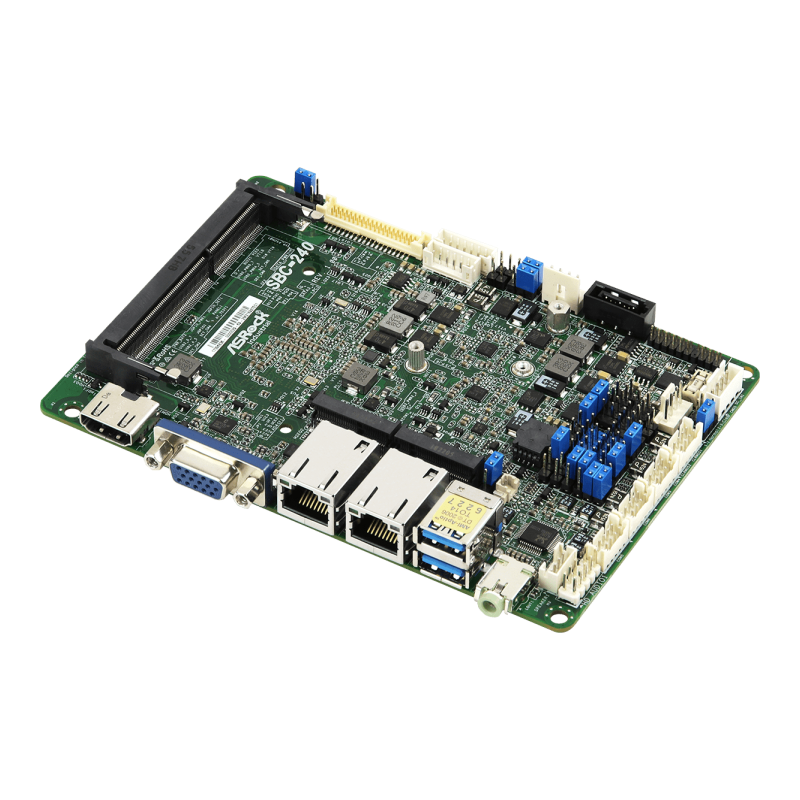

SBC-240

Solution provider for Embedded and Industrial PC
Caratteristiche generali
  • BGA1296 for Intel® Apollo Lake SoC
  • SBC-240L (N3350)
  • SBC-240J (J3455)
  • Supports Single Channel DDR3L SO-DIMM 1867, up to 8GB
  • 1 x VGA, 1 x HDMI, 1 x LVDS
  • 2 x USB 3.1, 4 x USB 2.0, 1 x SATA3, 4 x COM
  • 1 x M.2 Key M, 1 x M.2 Key E
  • 2 x Realtek LAN
  • 1 x TPM Header
  • 12V DC-in
Caratteristiche Tecniche
PROCESSOR SYSTEM
Dimensions 3.5″ SBC (5.8-in x 4.0-in)
CPU SBC-240L (N3350, DC, 1.1GHz, 6W)
SBC-240J (J3455, QC, 15GHz, 10W)
Chipset SoC
EXPENSION SLOT
PCIe N/A
Mini-PCIe N/A
M.2 1 x M.2 (Key M, 2242/2260) with PCIe x1 and SATA3
1 x M.2 (Key E, 2230) with PCIe x1 and USB2.0 for Wireless
mSATA N/A
MEMORY
Technology Single Channel DDR3L 1867MHz
Max 8GB
Socket 1 x SO-DIMM
GRAPHICS
Controller Intel® Gen9 Graphics 4K Codec Decode& Encode
VGA Supports max resolution up to 1920 x 1200
LVDS Supports max resolution up to 1920 x 1200@60Hz
eDP N/A
HDMI Supports max resolution up to 3840x 2160@30Hz
DVI N/A
DisplayPort N/A
Multi Display Triple Display
ETHERNET
Interface 10/100/1000 Mbps
Controller 2 x RT8111G

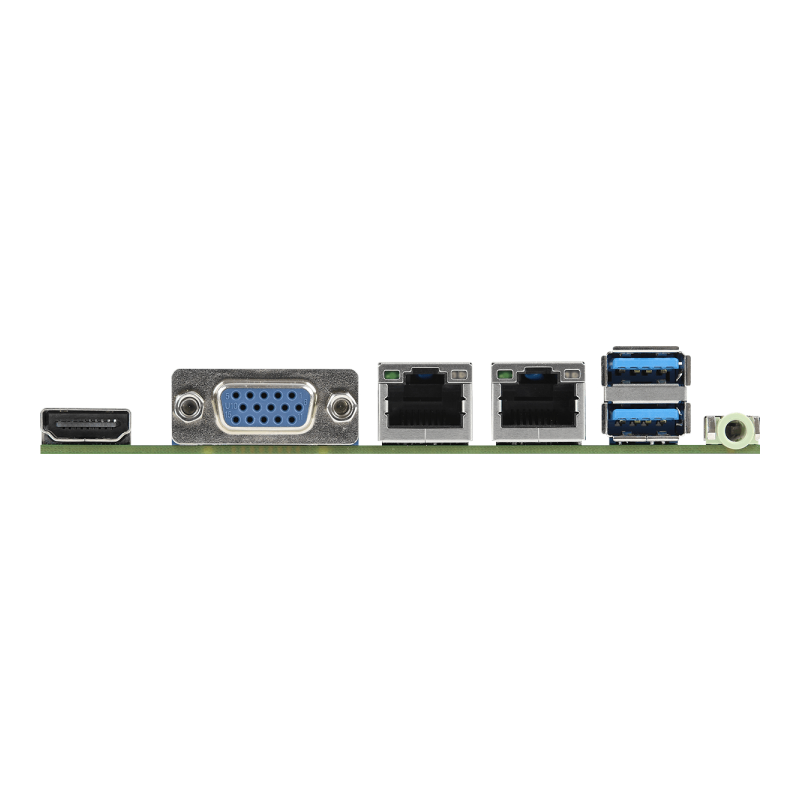

REAR I/O
VGA 1
DVI N/A
HDMI 1
DisplayPort N/A
Ethernet 2
USB 2 x USB 3.1
Audio 1 (Line-out)
Serial N/A
PS/2 N/A
INTERNAL CONNECTOR
USB 4 x USB2.0
LVDS 1
eDP N/A
VGA N/A
Serial 3 x COM (RS-232), 1 x COM (RS-232/422/485)
SATA 1 x SATA3 (6.0Gb/s)
Parallel N/A
GPIO 4 x GPI + 4 x GPO
SATA PWR Output Con 1
Speaker Header 1
TPM 1 x Header
WATCHDOG TIMER
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
POWER REQUIREMENTS
Input PWR 12V DC-in
Power On AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
ENVIRONMENT
Operating Temperature 0ºC – 60ºC
Storage Temperature -40ºC – 85° C
