SBC Q7

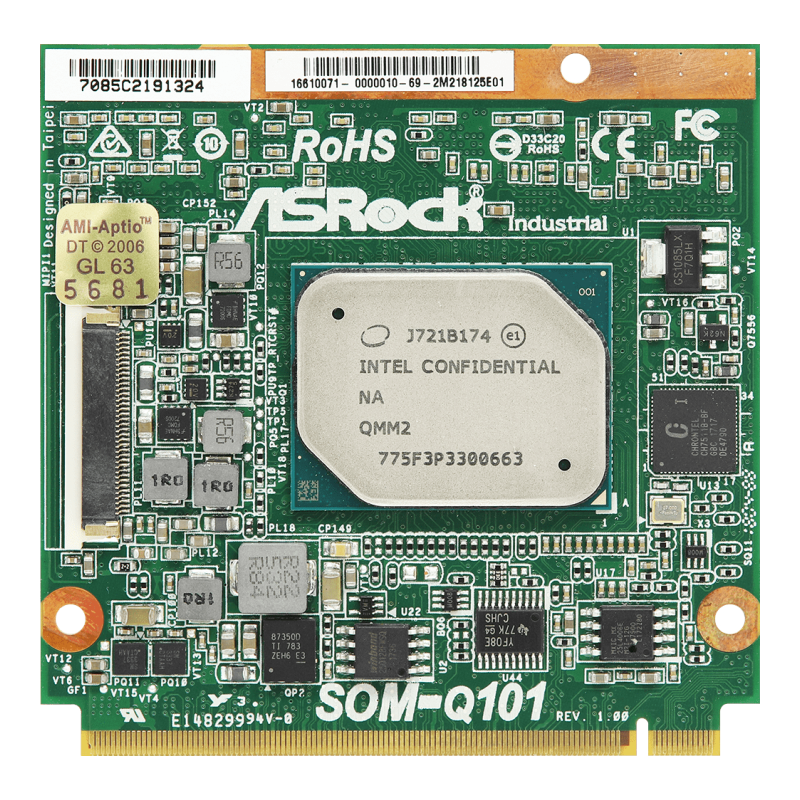

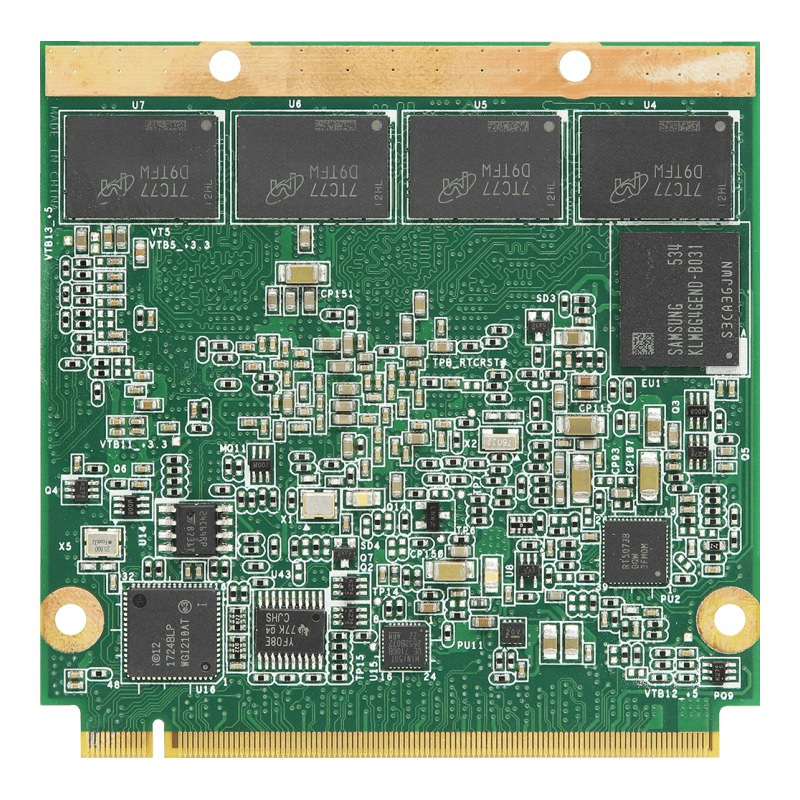

SOM-Q101

Solution provider for Embedded and Industrial PC
Caratteristiche generali

-Intel® Apollo Lake – I
-Supports LPDDR4 2400MHz, Single / Dual / Quad Channel, up to 8GB
-1 x DDI channels, 1 x eDP channel, 1 x LVDS channel (BOM option)
-2 xUSB 3.0 SS, 8 x USB 2.0, 2 x SATA3, 2 x Com(RS-232 only)
-4 x PCIe x1 ( 1 for Giga Lan)
-1 x Intel LAN I210-IT

Caratteristiche Tecniche
PROCESSOR SYSTEM
Dimensions Qseven (2.8-in x 2.8-in)
CPU Intel ® Apollo Lake – I
Chipset N/A
EXPANSION SLOT
PCIe 4 x PCIe x1 Lane
Mini-PCIe N/A
M.2 N/A
mSATA N/A
MEMORY
Technology Single / Dual / Quad Channel LPDDR4 2400
Max 8GB
Socket N/A
GRAPHICS
Controller IntelGen9 GraphicsDX 11/12, OGL4.3/4.4, Support 2 x DDI, 1 x eDP, 1 x LVDS (BOM option)
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort N/A
Multi Display Dual Display
ETHERNET
Interface 10/100/1000 Mbps
Controller 1 x Intel LAN I210IT
ENVINROMENT
Operating Temperature -20°C to 75°C
Storage Temperature -40ºC – 85° C
REAR I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort N/A
Ethernet N/A
USB N/A
Audio Jack N/A
Serial N/A
PS/2 N/A
INTERNAL CONNECTOR
USB 2 x USB 3.0/ 8 x USB2.0
LVDS N/A
eDP N/A
VGA N/A
Serial 2(RX/TX only)
SATA 2 x SATA3 (6.0 Gb/s)
Parallel N/A
GPIO 4 x GPI + 4 x GPO
SATA PWR Output Con N/A
Speaker Header N/A
TPM TPM 2.0 on board IC ( optional )
Onboard SSD EMMC 32GB ( optional )
Others LPC, SMBus, I2C, SPI, HD Audio
Super I/O N/A
WATCHDOG TIMER
Interval 0 ~ 255 sec
POWER REQUIREMENTS
Input PWR N/A
Power On N/A
