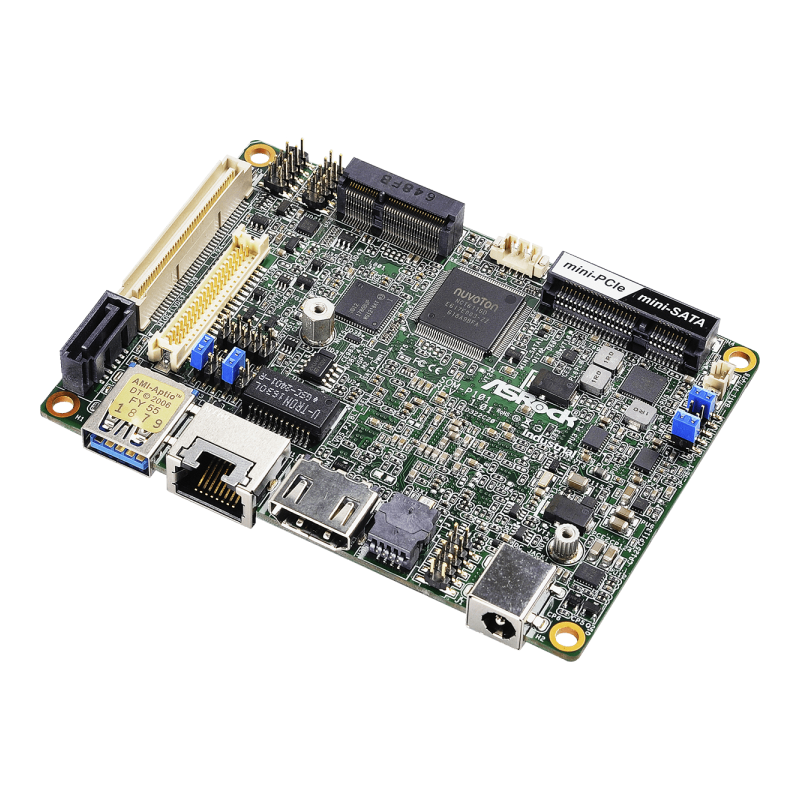

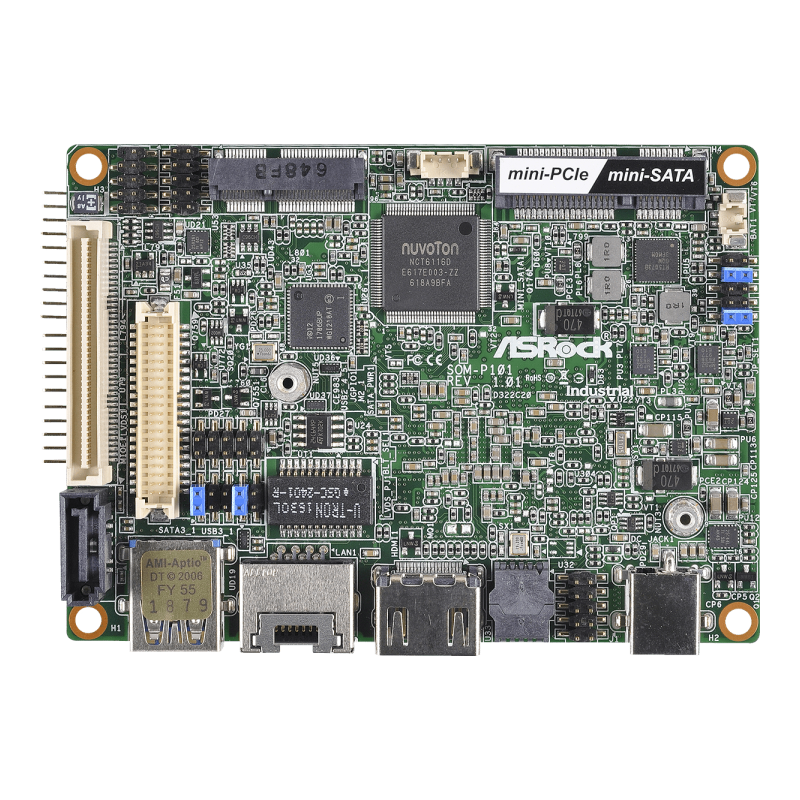

SBC Pico-ITX

SOM-P102

Solution provider for Embedded and Industrial PC
Caratteristiche generali
  • BGA1296 for Intel® Apollo Lake SoC
  • SOM-P101D (N4200)
  • SOM-P101L (N3350)
  • Intel® HD Graphics 505
  • Supports Single Channel DDR3L 1333/1600/1867 MHz, 1 x SO-DIMM, up to 8GB system memory
  • 1 x HDMI
  • 1 x USB 3.0 compatible with USB 2.0 , 1 x SATA3
  • 1 x MIOe , 1 x Mini PCIe and mSATA combo
  • 1 x M.2(Key E)
  • Gigabit LAN : 1 x Intel® LAN
  • 12V DC-in
Caratteristiche Tecniche
PROCESSOR SYSTEM
Dimensions PICO-ITX (3.9-in x 2.8-in)
CPU -SOM-P101D (N4200, QC, 1.10 GHz, 6W)
-SOM-P101L (N3350, DC, 1.10 GHz, 6W)
Chipset SoC
EXPANSION SLOT
Mloe 1
mSATA/Mini PCIe 1x full size with SATA3 and USB 2.0
M.2 1 x M.2 (Key E, 2230) fwith PCIe x1 and WiFi
MEMORY
Technology Single Channel DDR3L 1867 MHz
Max. 8GB
Socket 1 x SO-DIMM
GRAPHICS
Controller Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4
VGA N/A
LVDS Supports max resolution up to 1920 x 1200@60Hz
eDP N/A
HDMI Supports max resolution up to 4096 x 2160@30Hz
DVI N/A
DisplayPort N/A
Multi Display Dual Display
ETHERNET
Interface 10/100/1000 Mbps
Controller 1 x Intel I210IT
ENVIRONMENT
Operating Temperature 0ºC – 60ºC
Storage Temperature -40ºC – 85° C

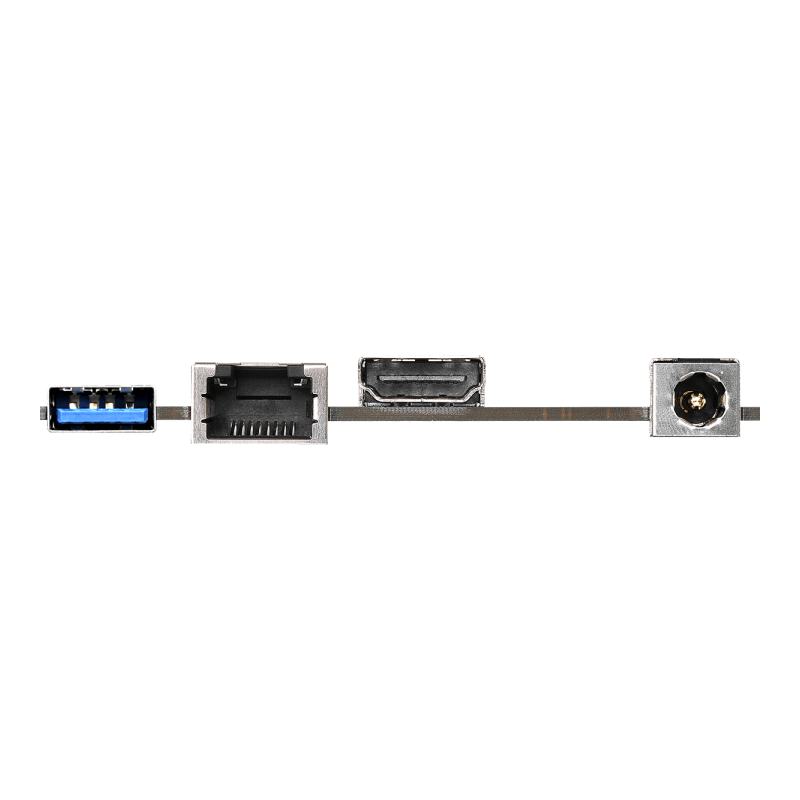

REAR I/O
VGA N/A
DVI N/A
HDMI 1
DisplayPort N/A
Ethernet 1
USB 1 x USB 3.1 compatible with USB 2.0
Audio Jack N/A
Serial N/A
PS/2 N/A
INTERNAL CONNECTOR
USB 2 x USB 2.0
LVDS 1
eDP N/A
VGA N/A
Serial 1 x COM (RS-232/422/485), 1 x COM (RS232)
SATA 1
Parallel 1
GPIO 4GPI + 4GPO
SATA PWR Output Con 1
Speaker Header 1
TPM 1 x IC onboard
WATCHDOG TIMER
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
POWER REQUIREMENTS
Input PWR 12V DC-in
Power On AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
