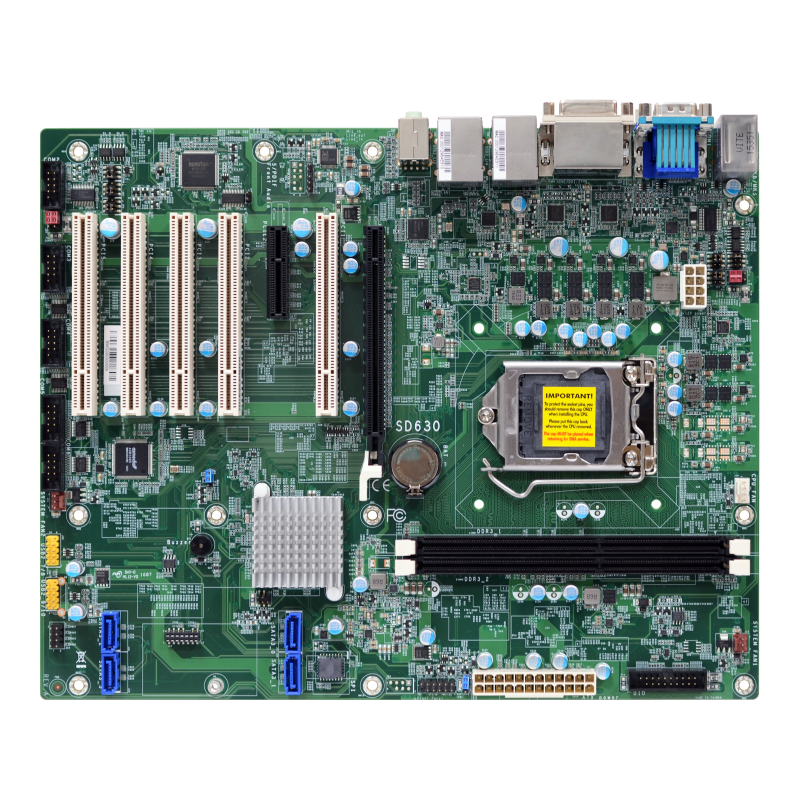

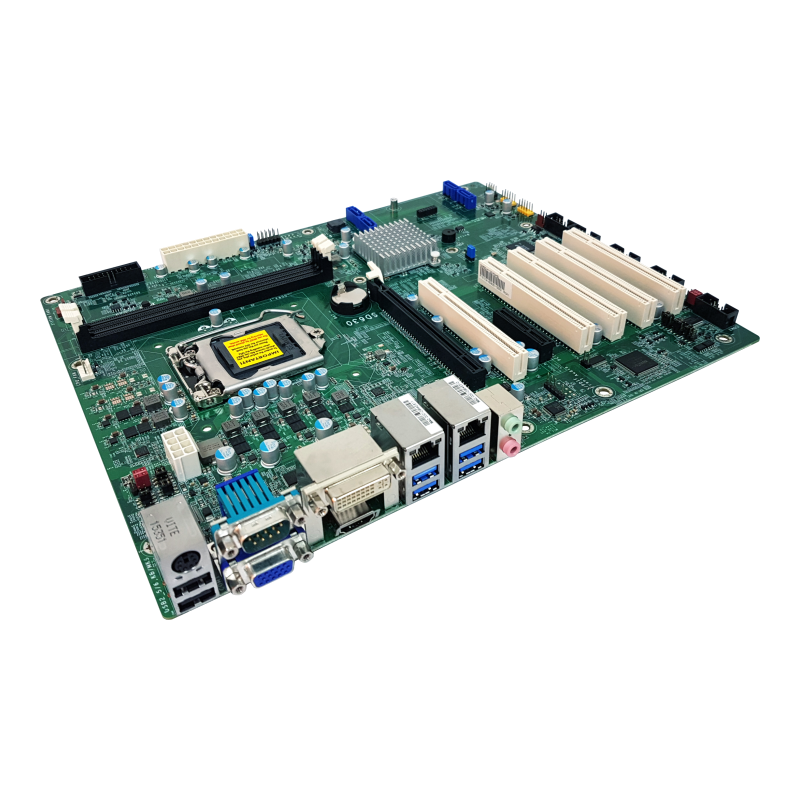

SD630-H110

SBC INDUSTRIALI

6th Generation Intel® CoreTM Processors, LGA 1151 Socket, Intel® H110 Chipset, Two 240-pin DIMM up to 16GB Dual Channel DDR3L 1600MHz, 1 PCIe x16, 1 PCIe x4, 5 PCI, 2 Gigabit LAN, 4xUSB 2.0, 6xUSB 3.0, 6 COM.



Caratteristiche generali

– 6th Generation Intel® CoreTM Processors, LGA 1151 Socket
– Intel® H110 Chipset
– Two 240-pin DIMM up to 16GB Dual Channel DDR3L 1600MHz
– Expansion: 1 PCIe x16; 1 PCIe x4; 5 PCI.
– 2 Gigabit LAN, 4xUSB 2.0, 6xUSB 3.0, 6 COM.

Caratteristiche Tecniche
SYSTEM
Processor 6th Generation Intel® CoreTM Processors, LGA 1151 Socket
Intel® CoreTM i7-6700 Processor, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® CoreTM i7-6700TE Processor, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500 Processor, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® CoreTM i5-6500TE Processor, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100 Processor, Dual Core, 4M Cache, 65W
Intel® CoreTM i3-6100TE Processor, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® Processor G4400, Dual Core, 3M Cache, 3.3GHz, 65W
Intel® Pentium® Processor G4400TE, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W
Chipset Intel® H110 Chipset
Memory Two 240-pin DIMM up to 16GB Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 128Mbit
GRAPHICS
Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA VGA: resolution up to 1920×1200 @ 60Hz
1 x DVI-I (DVI-D signal) DVI-I: resolution up to 1920×1200 @ 60Hz
1 x HDMI HDMI: resolution up to 4096×2160 @ 24Hz
Dual Displays VGA + DVI-I (DVI-D signal) DVI-I (DVI-D signal) + HDMI
VGA + HDMI
EXPANSION
Interface 1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
5 x PCI
AUDIO
Audio Codec Realtek ALC888S-VD2-GR
ETHERNET
Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps

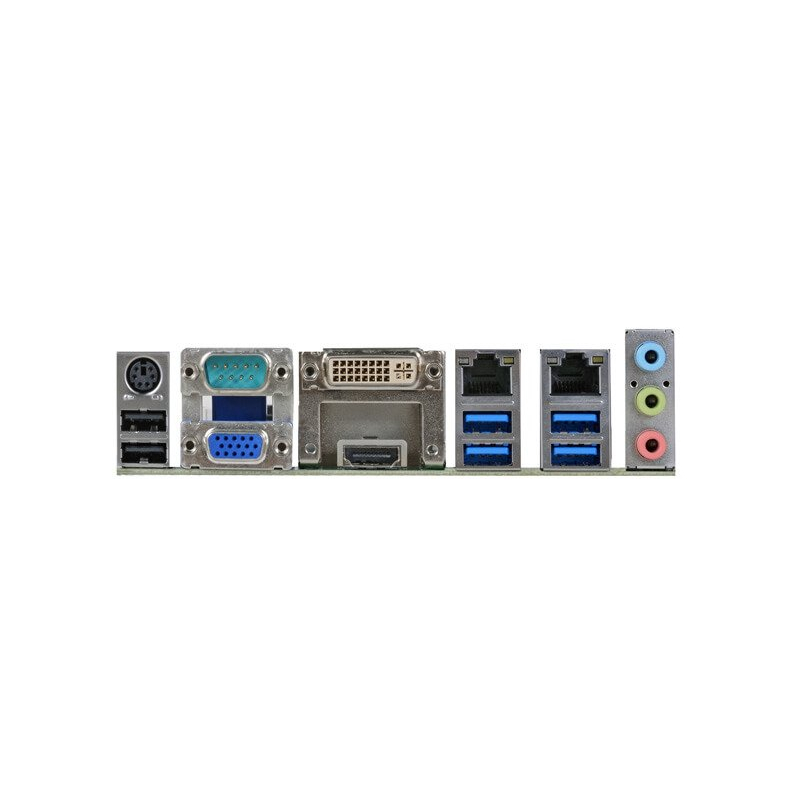

REAR I/O Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.0
2 x USB 2.0
Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI
Audio 1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
INTERNAL I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 4 x USB 2.0 (2.54mm pitch) or
2 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request)
Audio 1 x Audio (Line-out/Mic-in) (available upon request)
1 x S/PDIF
SATA 4 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255
SECURITY
TPM Available Upon Request
POWER
Type ATX
Connector 8-pin ATX 12V power 24-pin ATX power
Consumption Typical: i7 65W: 12V @ 2.39A (28.64Watt)
Max.: i7 65W: 12V @ 5.71A (68.48Watt)
RTC Battery CR2032 Coin Cell
OS SUPPORT Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
ENVIRONMENT Temperature Operating: 0 to 60°C Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF 398,776 hrs @ 25°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
MECHANICAL
Dimensions ATX Form Factor 305mm (12″) x 244mm (9.6″)
Height PCB: 1.6mm Top Side: 31.47 mm Bottom Side: 4.40 mm
CERTIFICATIONS
CE, FCC Class B, RoHS
