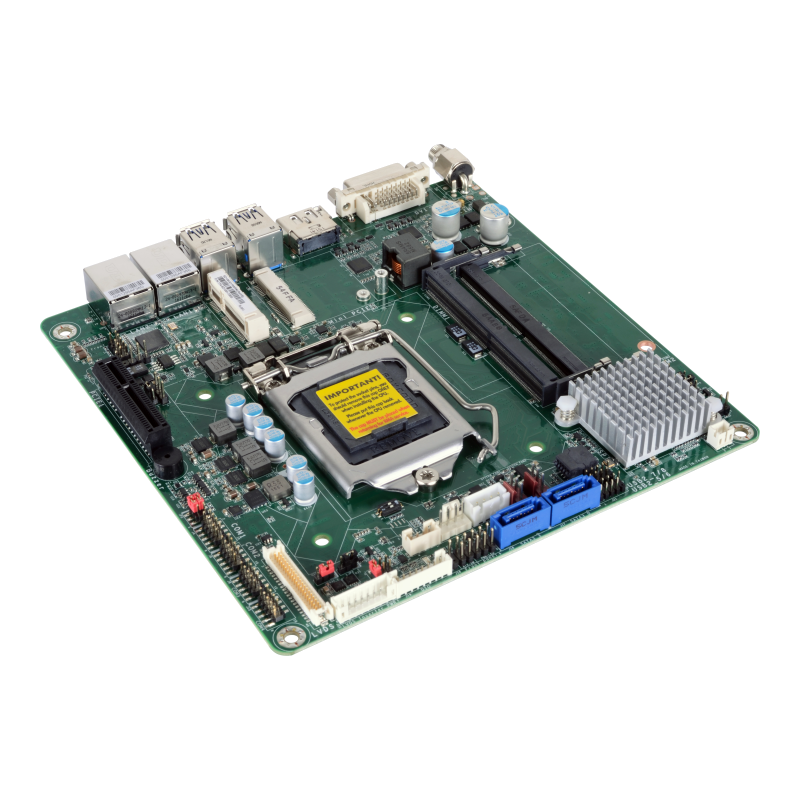

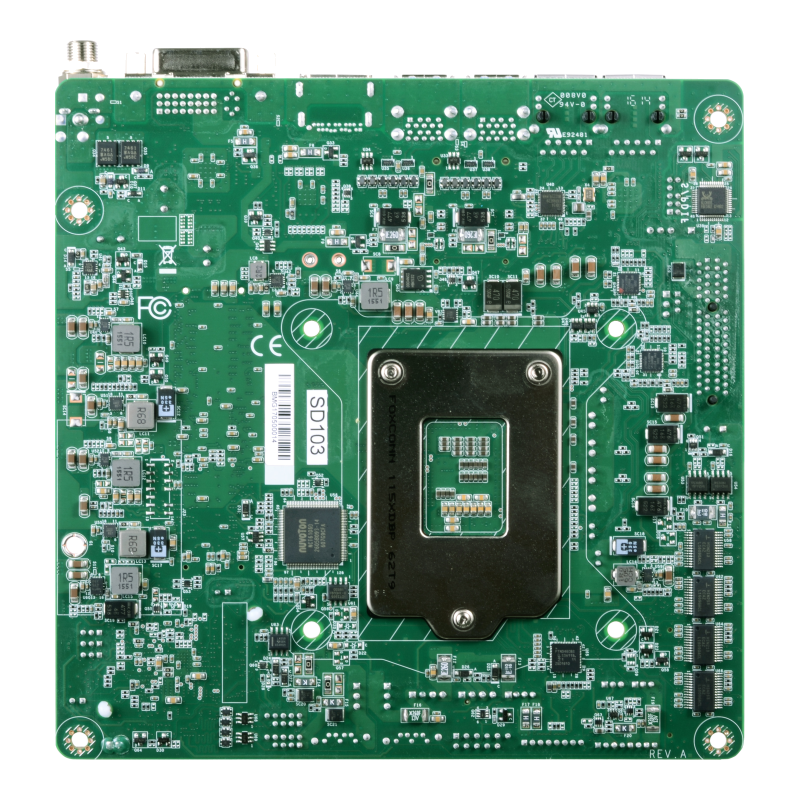

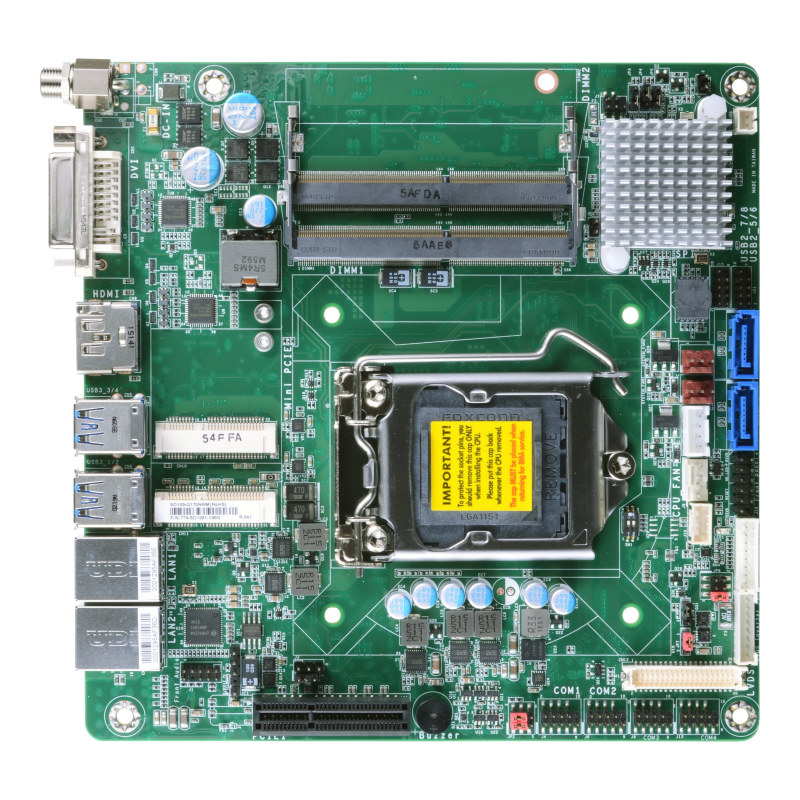

SBC Mini-ITX


Solution provider for Embedded and Industrial PC



6th Gen Intel® Core™, Intel® Q170, 2 DDR4 SODIMM up to 32GB, 2 LAN, 4 COM, 4 USB 3.0, 4 USB 2.0, 1 PCIe x4, 2 Mini PCIe

Caratteristiche generali
  • 6th Gen Intel® Core™
  • Intel® Q170
  • 2 DDR4 SODIMM up to 32GB
  • 2 LAN, 4 COM, 4 USB 3.0, 4 USB 2.0, 1 PCIe x4, 2 Mini PCIe
  • 15~36V DC-in
Caratteristiche Tecniche
SYSTEM Processor 6th Generation Intel® CoreTM Processors, LGA 1151 Socket
Intel® CoreTM i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® CoreTM i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® CoreTM i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® CoreTM i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
Chipset Intel® Q170
Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz
BIOS Insyde SPI 128Mbit
Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x LVDS
1 x DVI (DVI-D signal)
1 x HDMI/DP++ (DP++ available upon request)
LVDS: dual channel, resolution up to 1920×1200 @ 60Hz
DVI: resolution up to 2560×1600 @ 60Hz
HDMI: resolution up to 2560×1600 @ 60Hz or 4096×2160 @ 24Hz
DP: resolution up to 4096×2304 @ 60Hz
Triple Displays LVDS + DVI (DVI-D signal)+ HDMI
LVDS + DVI (DVI-D signal)+ DP++
Interface 1 x PCIe x4 (Gen 3)
1 x Full-size Mini PCIe (USB/PCIe/SATA, SATA by default)
1 x Half-size Mini PCIe (USB/PCIe/SATA, SATA by default)
Audio Codec Realtek ALC888S-VD2-GR
Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.0
Display 1 x DVI (DVI-D signal)
1 x HDMI/DP++ (DP++ available upon request)
Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.00mm pitch)
3 x RS-232 (2.00mm pitch)
USB 4 x USB 2.0 (2.00mm pitch)
Display 1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
AUDIO 1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA 2 x SATA 3.0 (up to 6Gb/s),RAID 0/1/5
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
Type Wide Range 15~36V
Connector DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
Dimensions Mini-ITX Form Factor, 170mm (6.7″) x 170mm (6.7″)
Height PCB: TBD
Top Side: TBD, Bottom Side: TBD

Contattaci per maggiori informazioni su Mini-ITX SD103-Q170
