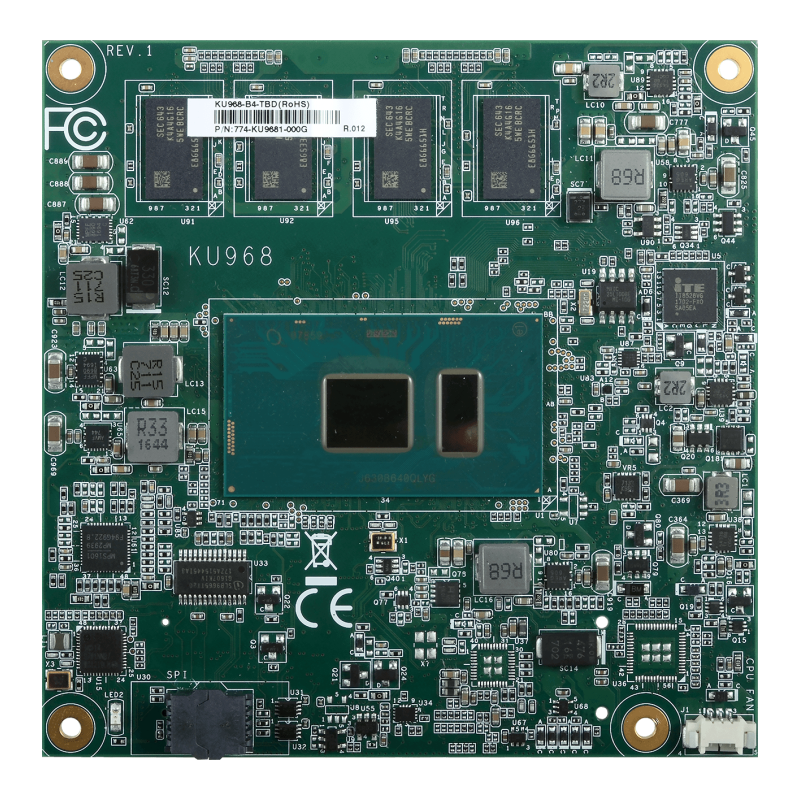

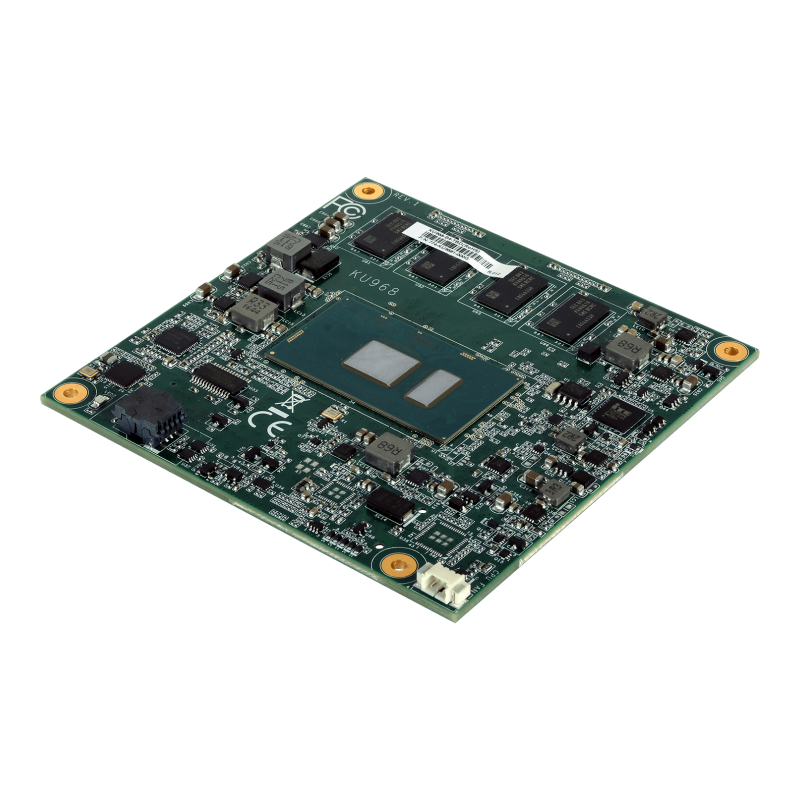

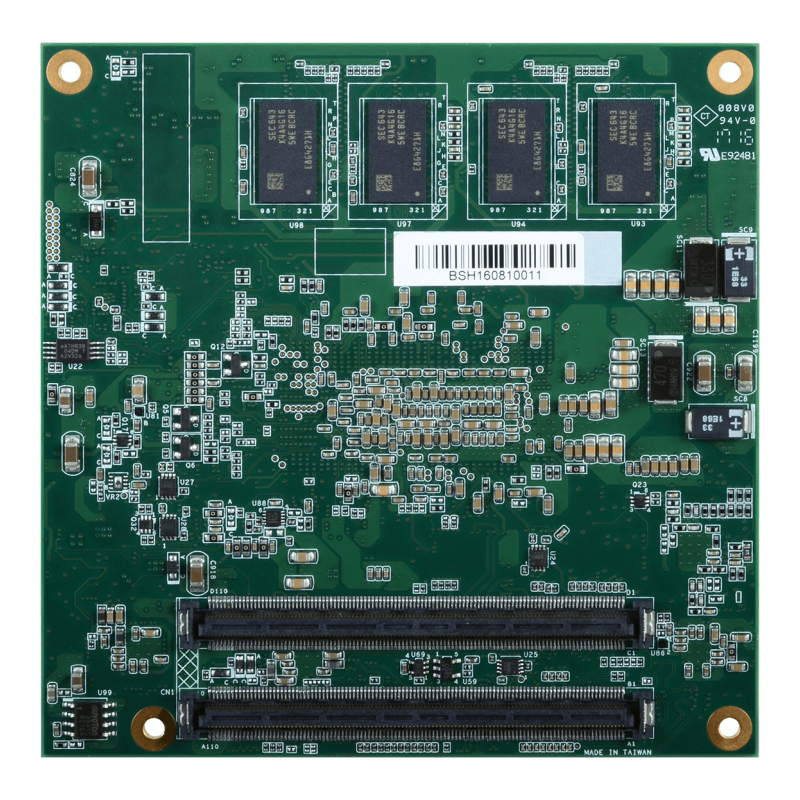

KU968

COMPUTER ON MODULE

Tags: Kaby Lake

- 7th Gen Intel® Core™ , 4GB/8GB DDR4 Memory Down, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 COM, 8 PCIe x1



Caratteristiche generali

– 7th Gen Intel® Core™
– 4GB/8GB DDR4 Memory Down
– 1 LAN
– 4 USB 3.0
– 8 USB 2.0
– 2 COM
– 8 PCIe x1

Caratteristiche Tecniche
SYSTEM
Processor Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 64Mbit
GRAPHICS
Controller Intel® HD Graphics
Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display 1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA: resolution up to 1920×1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60Hz
eDP: resolution up to 2560×1440 @ 60Hz
HDMI: resolution up to 3840×2160 @ 30Hz or 2560×1600 @ 60Hz
DP: resolution up to 3840×2160 @ 30Hz or 2560×1600 @ 60Hz
Triple Display VGA + LVDS + DDI DDI + eDP + DDI (available upon request)
EXPANSION
Interface 3 x PCIe x1 (Gen 2)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
AUDIO
Interface HD Audio
ETHERNET
Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
I/O
USB 4 x USB 3.0
8 x USB 2.0
SATA 2 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM Available Upon Request
POWER
Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
Consumption Typical: N3710: 12V @ 0.28A (3.41Watt
Max.: N3710: 12V @ 0.61A (7.35Watt)
OS SUPPORT
Windows 8.1 64-bit
Windows 7 (/WES7) 32/64-bit
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
ENVINROMENT
Temperature Operating: 0 to 60°C; -40 to 85°C (with heat spreader)

Storage: -40 to 85°C



Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH
MTBF 746,818 hrs @ 25°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
MECHANICAL
Dimensions COM Express® Compact 95mm (3.74″) x 95mm (3.74″)
Compliance PICMG COM Express® R2.1, Type 6

Contattaci per maggiori informazioni su COM Express Compact KU968
