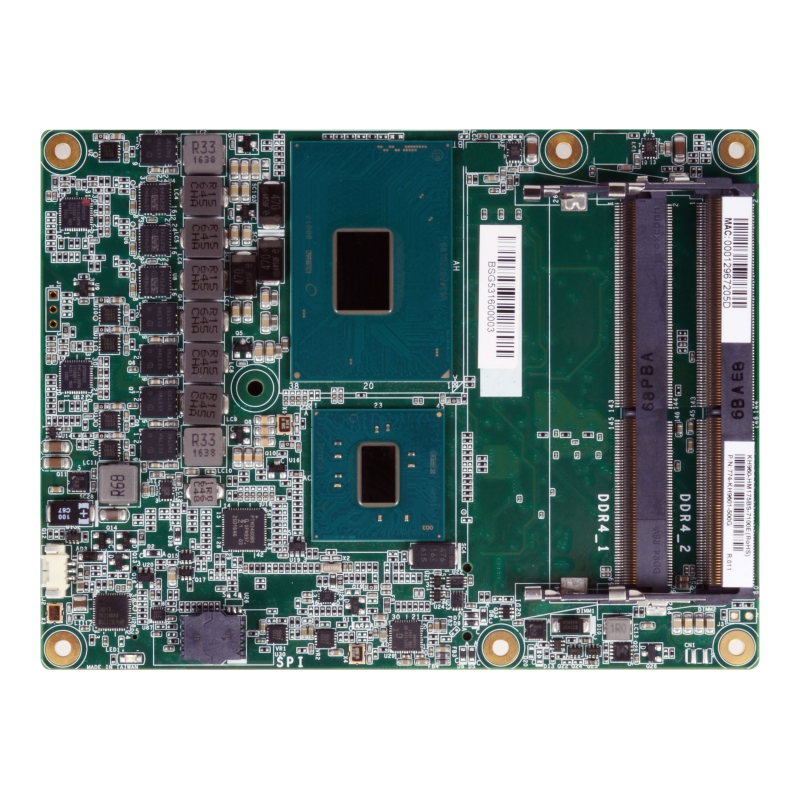

SBC COM Express Basic

KH960-CM238

Solution provider for Embedded and Industrial PC

KH960-CM238

COMPUTER ON MODULE

Tags: Kaby Lake

Processor 7th Gen Intel® Core™, Chipset Intel® CM238, Memory 2 DDR4 SODIMM up to 32GB, Expansion: 1 PCIe x16, 2 PCIe x8, 8 PCIe x1, 1 LPC, 1 SMBus, 2 COM, 1 I²C, 4 USB 3.0, 8 USB 2.0, 8-bit DIO, 1 LAN



Caratteristiche generali

– Processor 7th Gen Intel® Core™
– Chipset Intel® CM238
– Memory 2 DDR4 SODIMM up to 32GB
– Expansion: 1 PCIe x16, 2 PCIe x8, 8 PCIe x1, 1 LPC, 1 SMBus, 2 COM, 1 I²C,
– 4 USB 3.0, 8 USB 2.0
– 8-bit DIO
– 1 LAN

Caratteristiche Tecniche
Processor 7th Generation Intel® CoreTM Processors, BGA 1440
Intel® Xeon® E3-1505M v6 Processor, Quad Core, 8M Cache, 3.0GHz (4.0GHz), 45W
Intel® Xeon® E3-1505L v6 Processor, Quad Core, 8M Cache, 2.2GHz (3.0GHz), 25W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
Chipset Intel® CM238 Chipset
Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2400MHz
BIOS Insyde SPI 128Mbit
GRAPHICS
Controller Intel® HD Graphics
Feature OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display 1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 2560×1600 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60Hz
HDMI: resolution up to 4096×2160 @ 30Hz 24bpp
DVI: resolution up to 1920×1200 @ 60Hz
DP++/eDP: resolution up to 4096×2304 @ 60Hz
Triple Displays VGA + LVDS + DDI or VGA + DDI1 + DDI2
eDP + 2 DDI (available upon request)
EXPANSION
Interface 1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
AUDIO
Interface HD Audio
ETHERNET
Controller 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
USB 4 x USB 3.0
8 x USB 2.0
SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM Available Upon Request
POWER
Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
Consumption TBD
OS SUPPORT Windows: Windows 10 IoT Enterprise 64-bit LINUX: Yocto Project v2.2
ENVIRONMENT
Temperature Operating: 0 to 60°C / -40 to 85°C (with heat spreader)
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL
Dimensions COM Express® Basic 95mm (3.74″) x 125mm (4.9″)
Compliance PICMG COM Express® R2.1, Type 6

Contattaci per maggiori informazioni su COM Express Basic KH960-CM238
