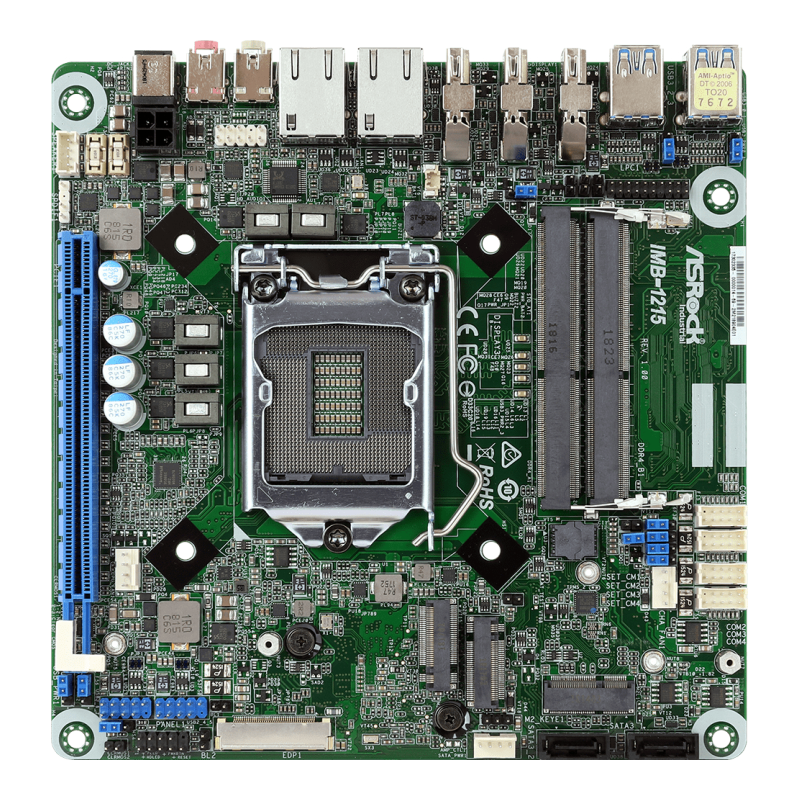

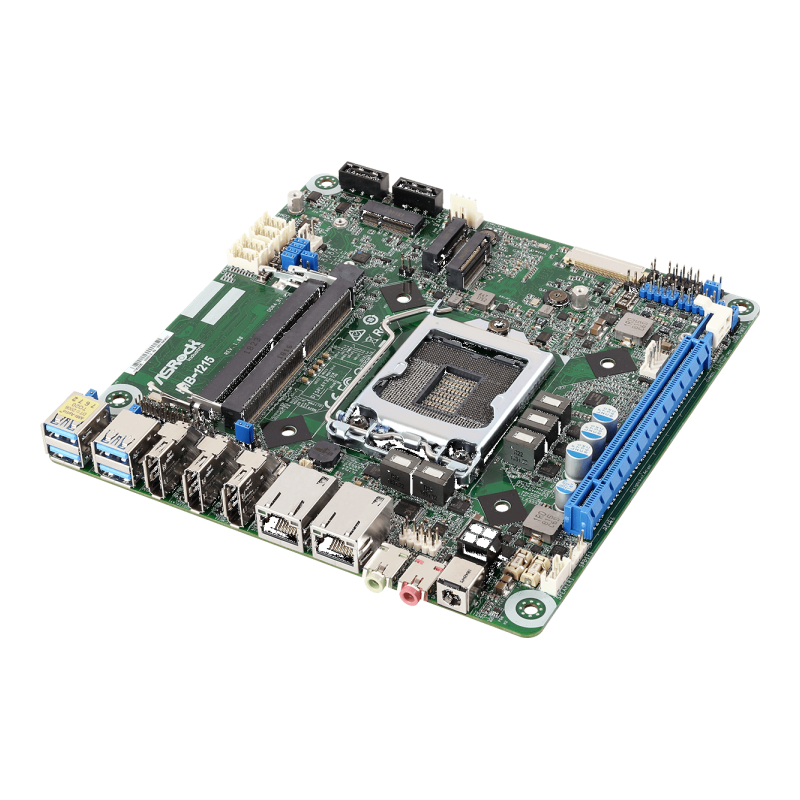

SBC Mini-ITX

IMB-1215

Solution provider for Embedded and Industrial PC
Caratteristiche generali

-Socket LGA 1151 for Intel Core i7/i5/i3/Celeron
-Supports Dual Channel DDR4 SO DIMM 2400/2666, up to 32GB
-3 x Displayport, 1 x eDP
-4 xUSB 3.1, 4 xUSB 2.0, 2 x SATA3, 4 x COM
-1 x PCIe x16, 1 x M.2 Key E , 2 x M.2 Key M
-1 x TPM
-19V DC-in (DC Jack/4-pin ATX PWR Con) (Option: +19V~28V)
-Supports RAID function

Caratteristiche Tecniche
PROCESSOR SYSTEM
Dimensions Mini-ITX (6.7-in x 6.7-in
CPU Socket LGA 1151 for Intel Core i7/i5/i3/Celeron (Supports up to 65W)
Chipset Intel® Q370 (Bottom Side)
EXPANSION SLOT
PCIe 1 xPCIe x16 (Support riser card)
mini-PCIe N/A
M.2 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
1x M.2 (Key M, 2242/ 2280) with PCIe x4 and SATA3 for SSD
1x M.2 (Key M, 2242/2260) with PCIe x1 for SSD
MEMORY
Technology Dual Channel DDR4 2400/ 2666 MHz
Max 32 GB
Socket 2 x SO-DIMM
GRAPHICS
VGA N/A
DVI N/A
LVDS N/A
eDP Max resolution up to 4096×2304@60Hz
HDMI N/A
DisplayPort Max resolution up to 4096×2304@60Hz
Multi Display Triple Display
ETHERNET
Interface 10/100/1000 Mbps
Controller 1 x Intel I219LM, 1 x Realtek RTL8111H

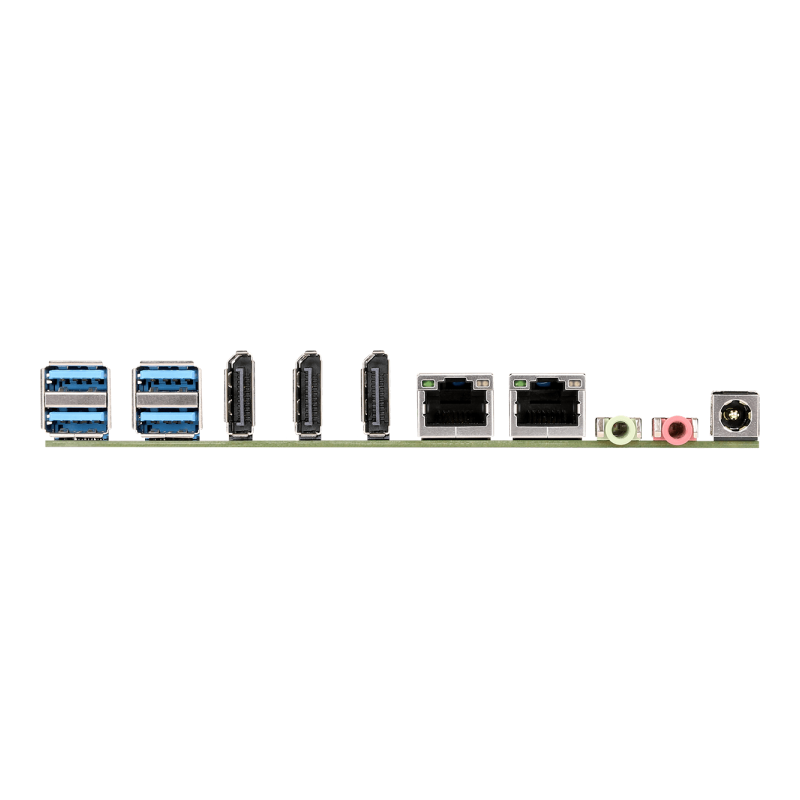

REAR I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 3 x DP1.2++
Ethernet 2
USB 4 x USB3.1
Serial N/A
Audio Jack 2 (Mic-in. Line-out)
PS/2 N/A
INTERNAL CONNECTOR
USB 4 x USB2.0
LVDS N/A
eDP 1
VGA N/A
Serial 1 x COM(RS232/422/485), 3 x COM(RS-232)
SATA 2 x SATA3 (6.0Gb/s)
GPIO N/A
SATA PWR Output Con 1
Speaker Header 1
TPM 1 x Onboard IC
WATCHDOG TIMER
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
POWER REQUIREMENTS
Input PWR 19V DC-in (DC Jack/ 4-pin ATX PWR Con) (Option: +19V~28V)
Power On AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power input ready
ENVINROMENT
Operating Temperature 0ºC – 60ºC
Storage Temperature -40ºC – 85° C
