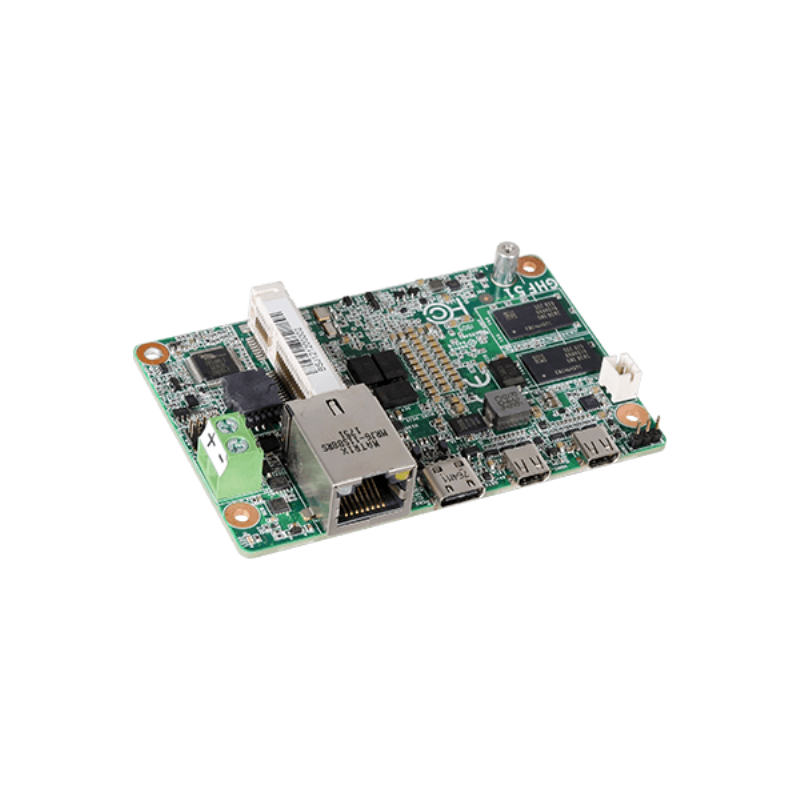

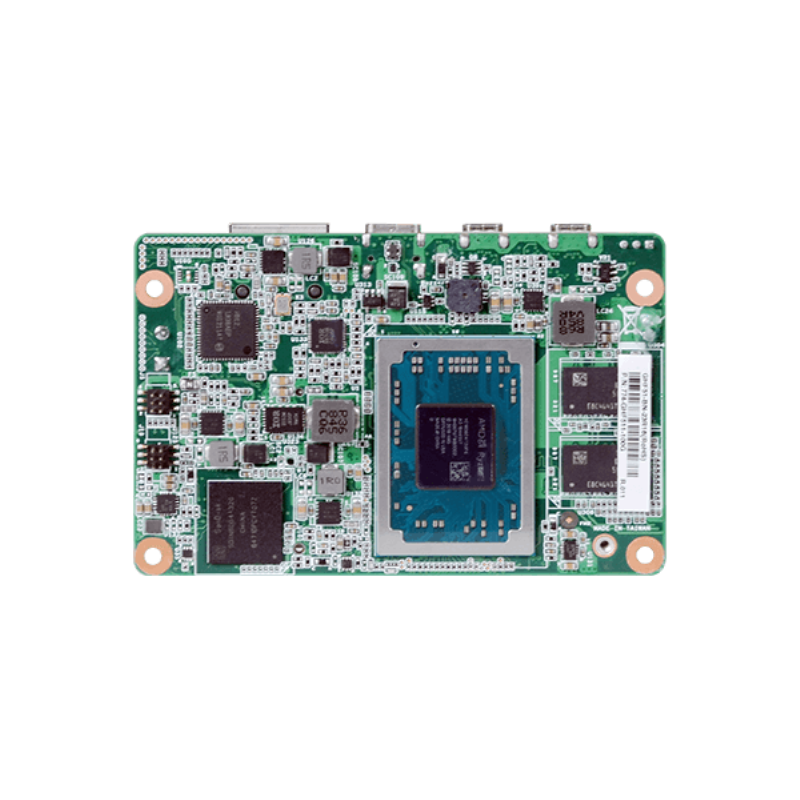

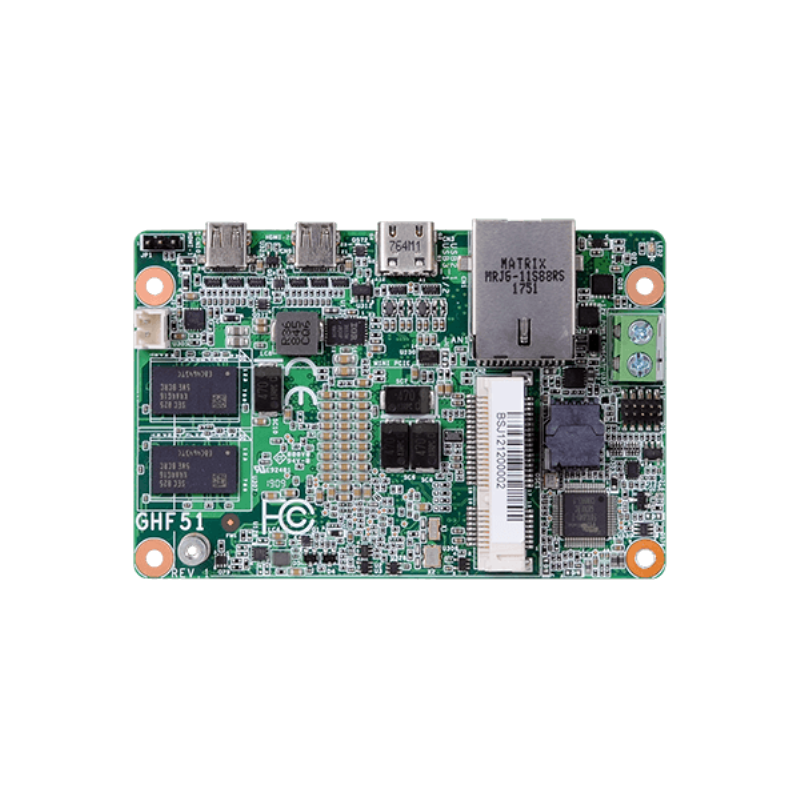

Download Datasheet GHF51
Per richieste riguardo driver, documentazione e application note contatta il supporto tecnico,
Richiedi informazioni
Caratteristiche Tecniche
CPU AMD® Ryzen™ Embedded R1606G AMD® Ryzen™ Embedded R1505G, 12W AMD® Ryzen™ Embedded R1305G, AMD® Ryzen™ Embedded R1102G
RAM DDR4 Memory Down up to 4GB/8GB Single Channel DDR4 2400MHz
LAN 1 x Intel® I211AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)
I/O 1 x 8-bit DIO
Storage 16/32/64GB Emmc
Expansion 1 x Full-size Mini PCIe (PCIe Gen2/USB 2.0, opt: USB 3.1 Gen2/USB 2.0)
Operative range 0 to 60°C/ -20 to 70°C (opt.)
Power Single 12V +/-5% DC
