Caratteristiche generali

– Dual channel DDR4 2400/3200MHz SODIMM up to 32GB
– Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI
– Supports three independent displays
– DP++ resolution supports up to 4096×2304 @ 60Hz
– Multiple expansion: 1 PCIe x8, 7 PCIe x1
– Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0

Caratteristiche Tecniche
SYSTEM
Processor AMD® Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 up to 2400/3200MHz
BIOS Insyde SPI 64Mbit
GRAPHICS
Controller AMD® Radeon™ Vega Graphics
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA/DDI (DDI available upon request) / VGA: resolution up to 1920×1200 @ 60Hz
1 x LVDS/eDP (eDP available upon request) / LVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60Hz
2 x DDI (HDMI/DVI/DP++) / eDP: resolution up to 3840×2160 @ 60 Hz
HDMI: resolution up to 2560×1600 @ 60Hz or 4096×2160 @
24Hz
DVI: resolution up to 1920×1200 @ 60Hz
DP++: resolution up to 4096×2304 @ 60Hz
VGA + LVDS + DDI or VGA + DDI 1 + DDI 2 / Edp + 2 DDI (available upon request)
EXPANSION
Interface 1 x PCIe x8 (Gen 3)
7 x PCIe x1 or 2 x PCIe x2 or 1 x PCIe x4
1 x LPC
1 x I2C
1 x SPI
1 x SMBus
2 x UART (TX/RX)
AUDIO
Interface HD Audio
ETHERNET
Controller 1 x Intel® I210AT with iAMT12.0 PCIe (10/100/1000Mbps)
I/O
USB 4 x USB 3.1
8 x USB 2.0
SATA 1 or 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1
DIO 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM TPM1.2/2.0 (Available Upon Request)
POWER
Type 12V, 5VSB, VCC_RTC (ATX mode) / 12V, VCC_RTC (AT mode)
Consumption TBD
OS SUPPORT
OS Windows: Windows 10 IoT Enterprise 64-bit Ubuntu 18.04
ENVIRONMENT
Temperature Operating: 0 to 60°C / Storage: -40 to 85°C
-40 to 85°C (with heat spreader)
Humidity Operating: 5 to 90% RH
MTBF TBD
MECHANICAL
Dimensions COM Express® Basic / 95mm (3.74″) x 125mm (4.9″)
Compliance PICMG COM Express® R3.0, Type 6

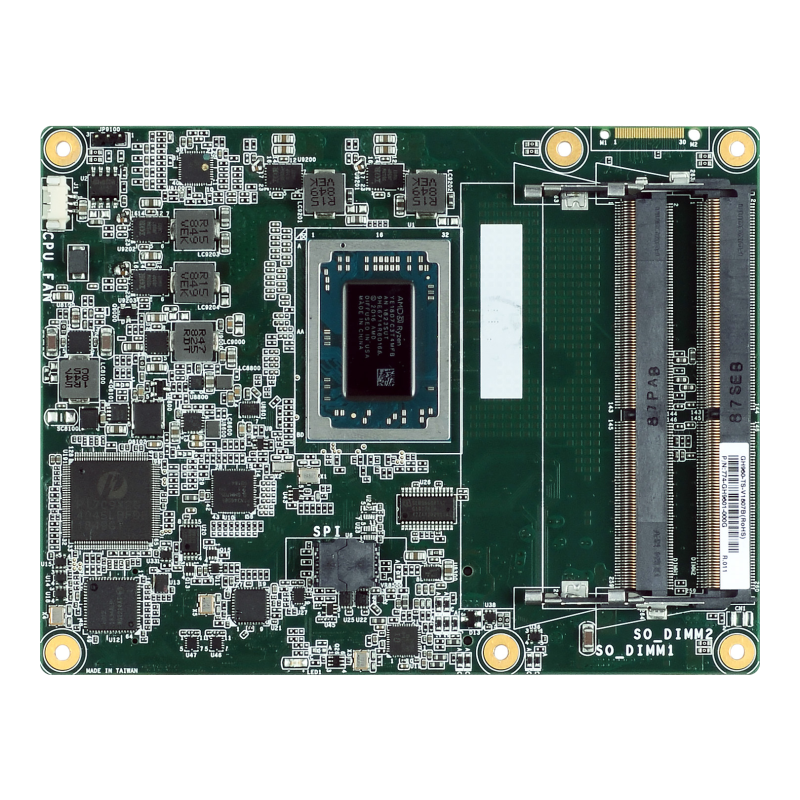

Contattaci per maggiori informazioni su COM Express Basic GH960
