SBC Server grade

EP2C621D16-4LP

Solution provider for Embedded and Industrial PC

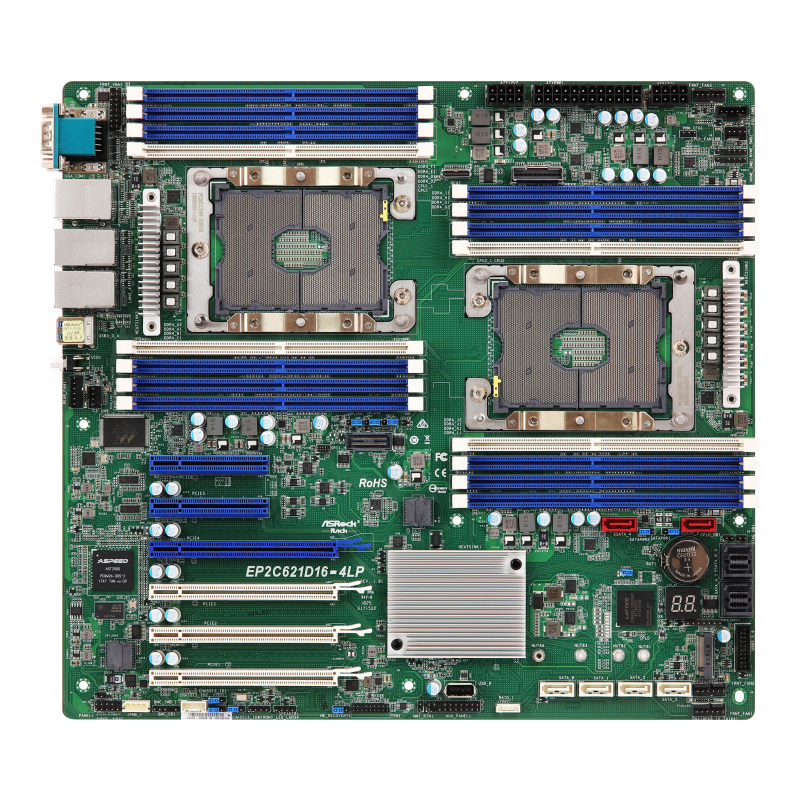

Caratteristiche generali
  • EEB 12”x13”
  • Dual socket Xeon Scalable Processor Family
  • Supports DDR4 2666/2400 R and LRDIMM, 16 x DIMM slots
  • Supports 14 x SATA3 6.0 Gb/s by INTEL C621(including 2x SATA DOM ports and 2x SATA switch w/1xM.2 NVME ports)
  • Supports 3x PCIe3.0x 16, 3x PCIe3.0x 16
Caratteristiche Tecniche
MB PHISICAL STATUS
Form Factor EEB
Dimensions 12” x 13” (30.5 cm x 33.0 cm)
PROCESSOR SYSTEM
CPU Intel® Xeon® Scalable Processors
Socket Dual Socket LGA-3647
Chipset Intel C621
SYSTEM MEMORY
Capacity 16 DIMM slots
Type Quad Channel memory technology
Support DDR4 2666/2400 RDIMM and LRDIMM
DIMM Size Per DIMM RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Voltage 1.2V
EXPANSION SLOT
PCIe 3.0 x 16 3 slots
PCIe 3.0 x 8 3 slots
M.2 NVMe: 1 x M.2 slot
STORAGE
SATA Controller Intel C621 : 14 x SATA3 (including 2x SATA DOM ports and 2x SATA which switch w/1xM.2 ports)
OCuLink for U.2 3 (Slimeline x8 from CPU1, OCulink x4 from CPU1)
ETHERNET
Interface Gigabit LAN 10/100/1000 Mb/s
LAN Controller 4 x RJ45 GLAN by Marvell 88E1543
1 x RJ45 Dedicated IPMI LAN port
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
LAN1 Supports NCSI
MANAGMENT
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
NMI
GRAPHICS
Controller ASPEED AST2500
VRAM DDR4 16Mb

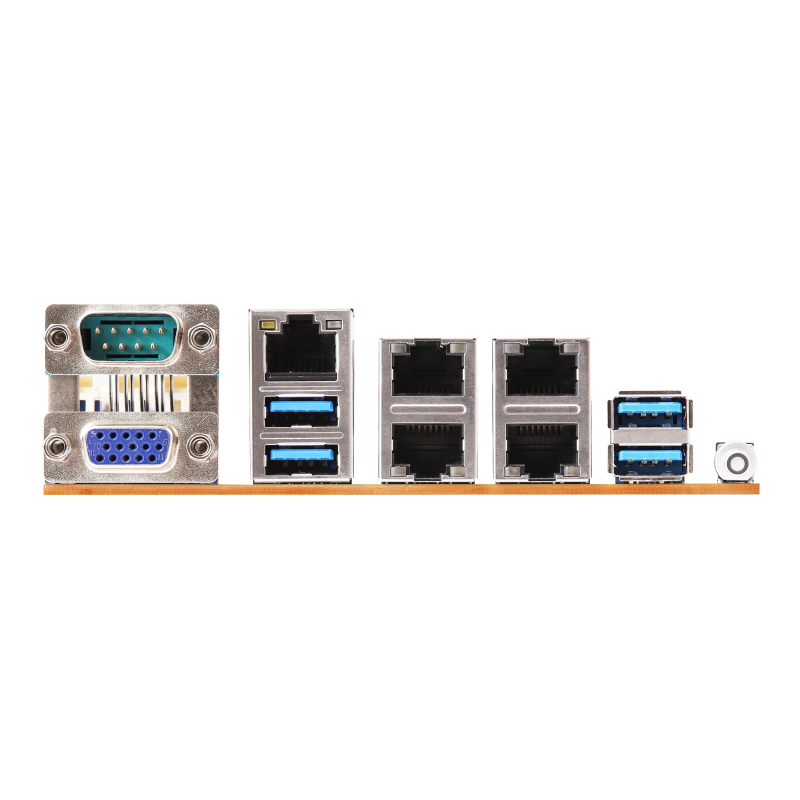

REAR PANEL I/O
VGA Port 1 x D-Sub
USB 3.1 Gen1 Port 4
Lan Port 4+1(IPMI)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port 1 x COM port
INTERNAL CONNECTOR
SATA DOM 2 (SSATA)
M.2 1(M key 2230/224/22260/2280, supports PCIe(x4)/SATA)
Auxiliary Panel Header 1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header 1
IPMB Header 1
VGA Header 1
Buzzer 1
Fan Header 2x CPU Fan (4-pin), 4x system Fan (6-pin)
ATX Power 1 (24-pin) + 2 (8-pin)
USB 3.1 (Gen1) Header 1 ( support 2 USB 3.0)
Type A USB 2.0 Port 1
SYSTEM BIOS
BIOS Type 128Mb AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8 Support
ASRock Rack Instant Flash
HARDWARE MONITOR
Temperature CPU Temperature Sensing
System Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
SUPPORT OS
Microsoft® Windows® (Server OS)
– Server 2012 R2 (64 bit)
– Server 2016 (64 bit)
Microsoft® Windows® (Client OS)
– Windows® 10 (64 bit)
Linux
– RedHat Enterprise Linux Server 6.8 (64 bit) / 7.4 (64 bit)
– CentOS 6.8 (64 bit) / 7.4 (64 bit)
– SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)
– Ubuntu 16.04 (64 bit) / 15.10 (64 bit)
– FreeBSD 11.2 (64 bit)
Virtual
VMWare® ESXi 6.5 u1
Win hyper-V Server 2012 R2
ENVIROMENT
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Contattaci per maggiori informazioni su Server grade EP2C621D16-4LP
