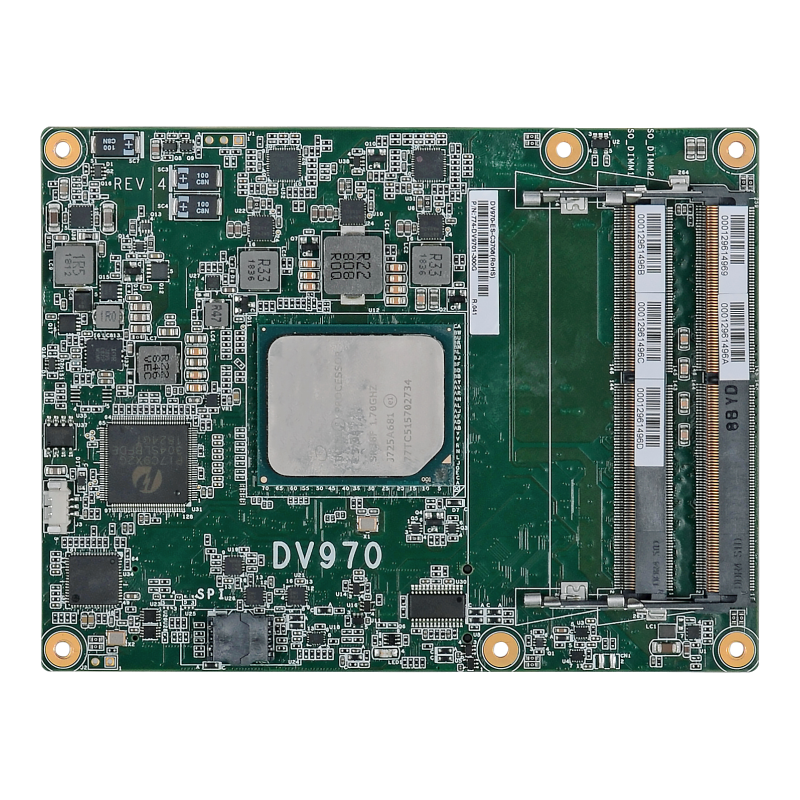

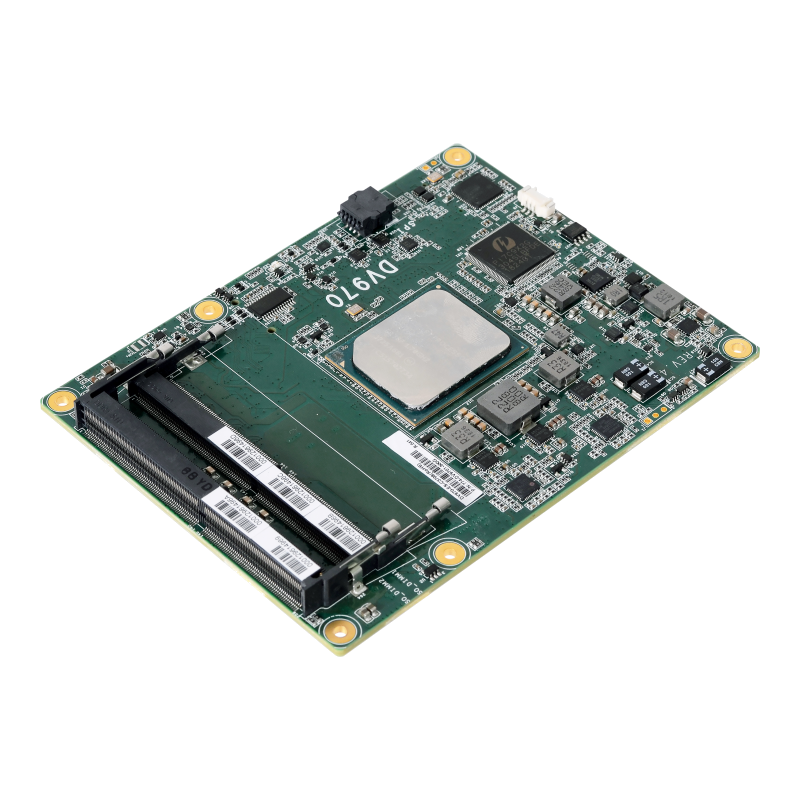

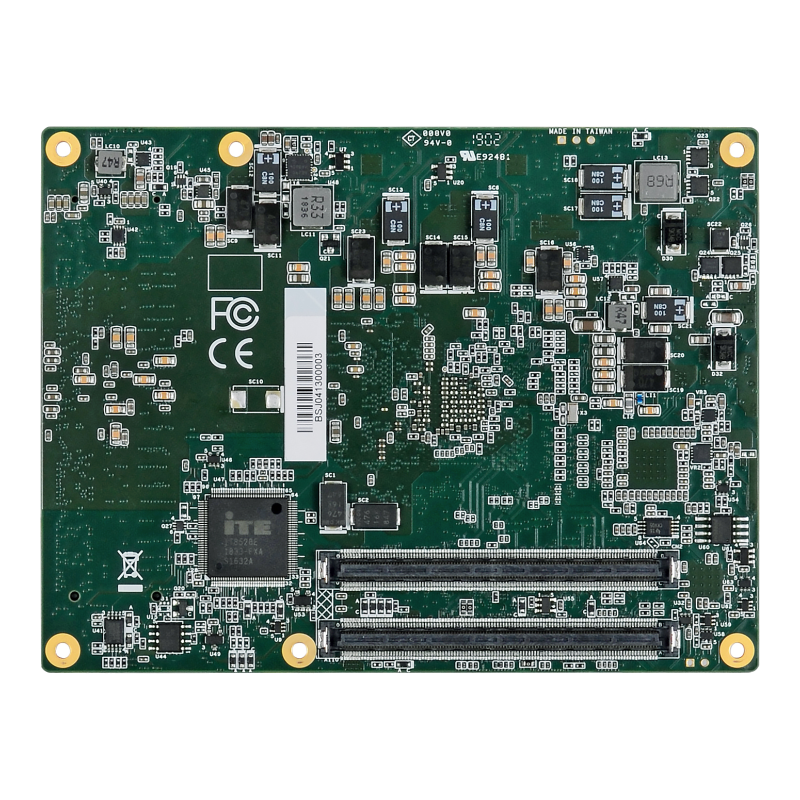

DV970

COMPUTER ON MODULE

Tags: 12Vdc

Intel Atom® Processor C3000 Series, Memory 2 DDR4 SODIMM up to 32GB, Expansion 2 PCIe x8, 1 LPC, 1 SMBus, 2 COM, 1 I2C, 2 USB 3.0 4 USB 2.0, 1 LAN



Caratteristiche generali

– Intel Atom® Processor C3000 Series
– Memory 2 DDR4 SODIMM up to 32GB
– Expansion: 2 PCIe x8; 1 LPC; 1 SMBus; 2 COM; 1 I2C
– 2 USB 3.0 4 USB 2.0; 1 LAN

Caratteristiche Tecniche
Processor Intel Atom® Processor C3000 Series, BGA
Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2400MHz
BIOS Insyde SPI 128Mbit
EXPANSION Default:
B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B2: 1 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
Option 1:
B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 2 x PCIe x2 or 2 x Piea x1 (Gen 3)
B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
Option 2:
B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B2: 1 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
Option 3:
B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
ETHERNET
Controller 4 x 10Gbase-KR
Support 10GBASE-KR FEC
Support Intel® X557-AT/AT2/AT4 10 GbE PHY
Support Inphi CS4227 (2 port)/CS4223 (4 port)
(Bandwidth maximum of 4 ports is 20GB)
1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
I/O
USB 2 x USB 3.0
4 x USB 2.0
SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO 1 x 8-bit DIO
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM Available Upon Request
POWER
Type 12V, 5VSB, VCC_RTC (ATX mode) – 12V, VCC_RTC (AT mode )
Consumption TBD
OS SUPPORT Windows Server 2012
Windows Server 2016
Yocto Project v1.8/v2.0
Temperature Operating: 0 to 60°C
-40 to 85°C (with heat spreader)
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL
Dimensions COM Express® Basic 95mm (3.74″) x 125mm (4.9″)
Compliance PICMG COM Express® R3.0, Type 7

Contattaci per maggiori informazioni su COM Express Basic DV970
