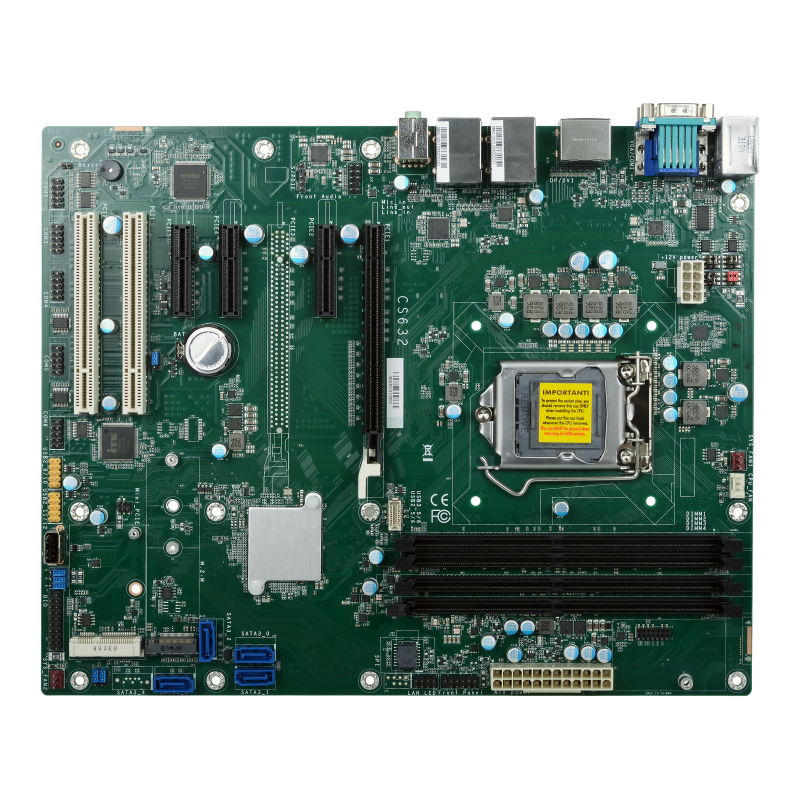

SBC ATX

CS632-C246

Solution provider for Embedded and Industrial PC
Caratteristiche generali

– 2 DDR4 2666MHz SODIMM up to 32GB
– Three independent displays:
LVDS + HDMI + DP++
– DP++ resolution supports up to 4096×2304 @ 60Hz
– Multiple Expansions:
1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1
M.2 2230 E Key
– Storage: 2 SATA 3.0
– Rich I/O:
– Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.

Caratteristiche Tecniche
SYSTEM
Processor 8th Generation Intel® Xeon/Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
Chipset Intel® C246 Chipset/Q370
Memory Four 288-pin DIMM up to 64GB – Dual Channel DDR4 2400/2666MHz (ECC/non ECC)
BIOS SPI 128Mbit
GRAPHICS
Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA – VGA: resolution up to 1920×1200 @ 60Hz
2 x DP++ – DP++: resolution up to 4096×2160 @ 60Hz
Triple Displays VGA + DP++ + DP++
EXPANSION
Interface 1 x PCIe x16 (Gen 3) (x8/x8 signals as opt., MOQ required)
3 x PCIe x4 (Gen 3)
2 x PCI
1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0)
1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support)
AUDIO
Audio Codec Realtek ALC887 (ALC888 as opt.)
ETHERNET
Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)

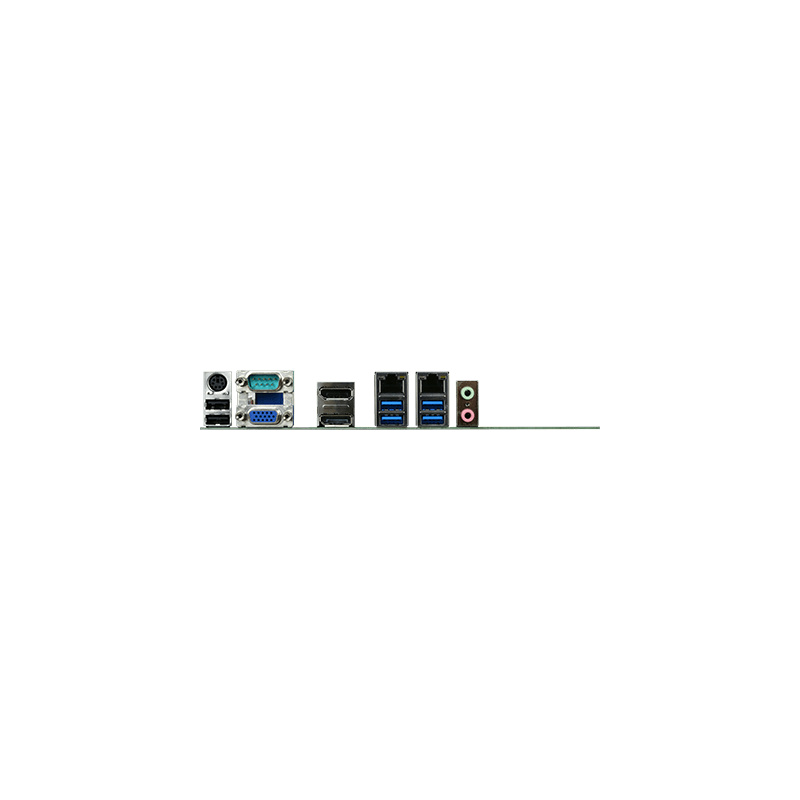

REAR I/O
Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.1 Gen1 – 2 x USB 2.0
Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA – 2 x DP++
Audio 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Serial 5 x RS-232 (2.54mm pitch)
USB 2 x USB 3.1 Gen 2 (2.00mm pitch) 5 x USB 2.0 (2.54mm pitch) (4 x Pin Header, 1 x USB 2.0 vertical Type A)
Audio 1 x S/PDIF, 1 Front Audio Header
SATA 4 x SATA 3.0 RAID 0/1/5/10
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM Infi neon TPM1.2/2.0 (opt., MOQ required)
POWER
Type ATX
Connector 8-pin ATX 12V power 24-pin ATX power
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT
Microsoft Windows 10 IoT Enterprise 64-bit
Linux Linux: Ubuntu 18.04
ENVIRONMENT
Temperature Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery
Humidity Operating: 5 to 90% – RH Storage: 5 to 90% RH
MTBF TBD
MECHANICAL
Dimensions ATX Form Factor – 305mm (12″) x 244mm (9.6″)
Height PCB: TBD – Top Side: TBD – Bottom Side: TBD

Contattaci per maggiori informazioni su ATX CS632-C246
