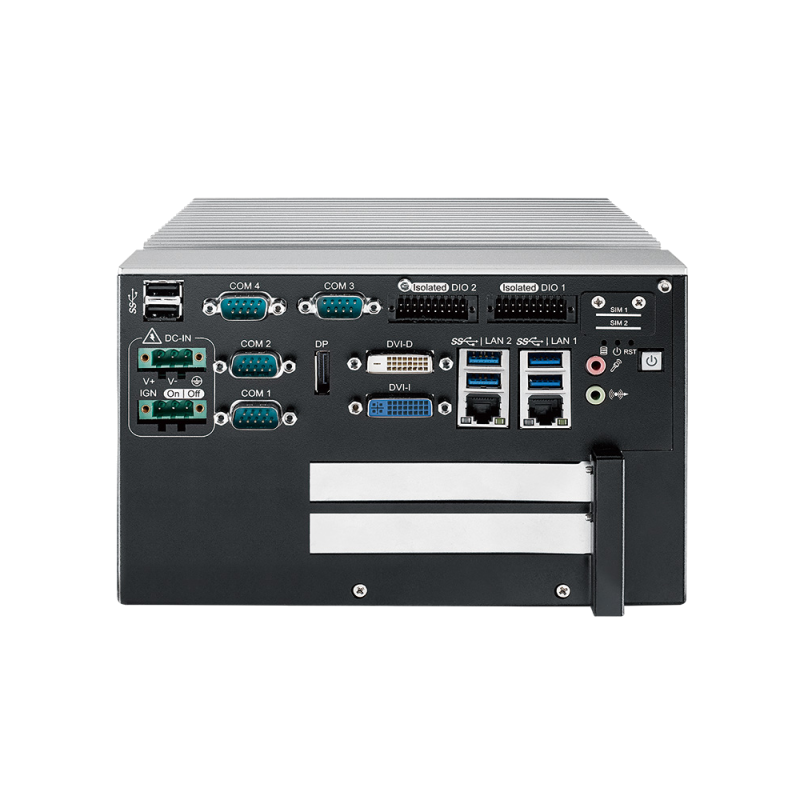

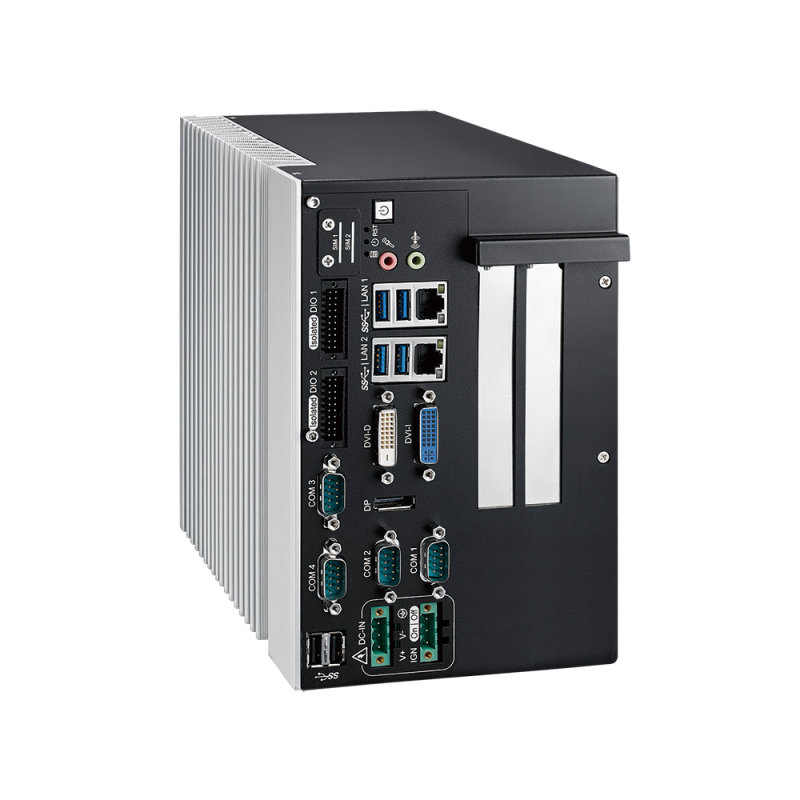

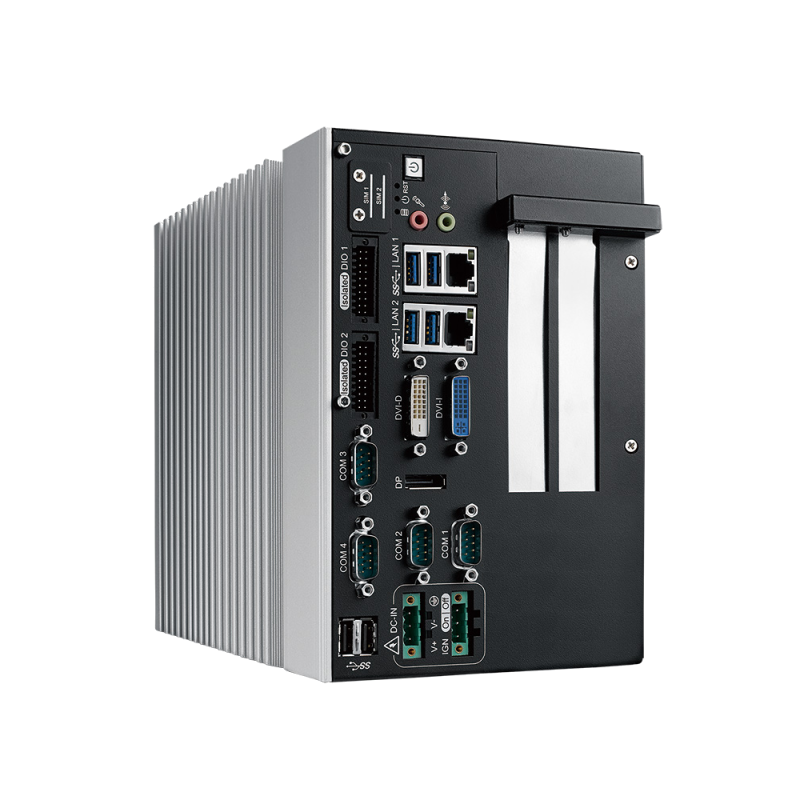

RCS-9211

Box PC Fanless

Intel® Core™ i7/i5/i3, Intel® Q170, 2 DDR4 2133MHz up to 32GB, 2 LAN, 4 COM, 7 USB 3.0, 2 USB 2.0, 32 Isolated DIO, 3 Mini PCIe Socket, 1 PCIe x16 Slot, 1 PCI Slot



Caratteristiche generali

– Intel® Core™ i7-6700/i7-6700TE/i5-6500/i5-6500TE/i3-6100/i3-6100TE
– Intel® Q170
– 2 DDR4 2133MHz up to 32GB
– 2 LAN, 4 COM, 7 USB 3.0, 2 USB 2.0, 32 Isolated DIO, 3 Mini PCIe Socket, 1 PCIe x16 Slot, 1 PCI Slot

Caratteristiche Tecniche
System
Processor Intel® Core™ i7-6700/ i7-6700TE/ i5-6500/ i5-6500TE/i3-6100/ i3-6100TE Processor (Skylake-S)
Chipset Intel® Q170
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133 MHz SO-DIMM, up to 32GB
I/O Interface
Serial 4 COM RS-232/ 422/ 485
USB 7 USB 3.0 (6 External, 1 Internal)
2 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe 3 Mini PCIe Socket :
2 Full-size for PCIe/ USB/ External SIM Card
1 Full-size for PCIe/ USB/ Internal SIM Card/ mSATA
PCIe 1 PCIe x16 Slot
PCI 1 PCI Slot
Graphics
Processor Intel® HD Graphics 530
Interface DVI-I : Up to 1920 x 1200 @ 60Hz
DVI-D : Up to 1920 x 1200 @ 60Hz
DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 CFast Socket (Internal)
2 2.5″ SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (W x L x H) 137mm x 250mm x 210mm (5.40” x 9.86” x 8.27”)
Weight 3.1 kg (6.8 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature with 35W TDP CPU (i7-6700TE, i5-6500TE,
i3-6100TE) : -25°C to 75°C (-13°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Certification CE, FCC, EN50155, EN50121-3-2
