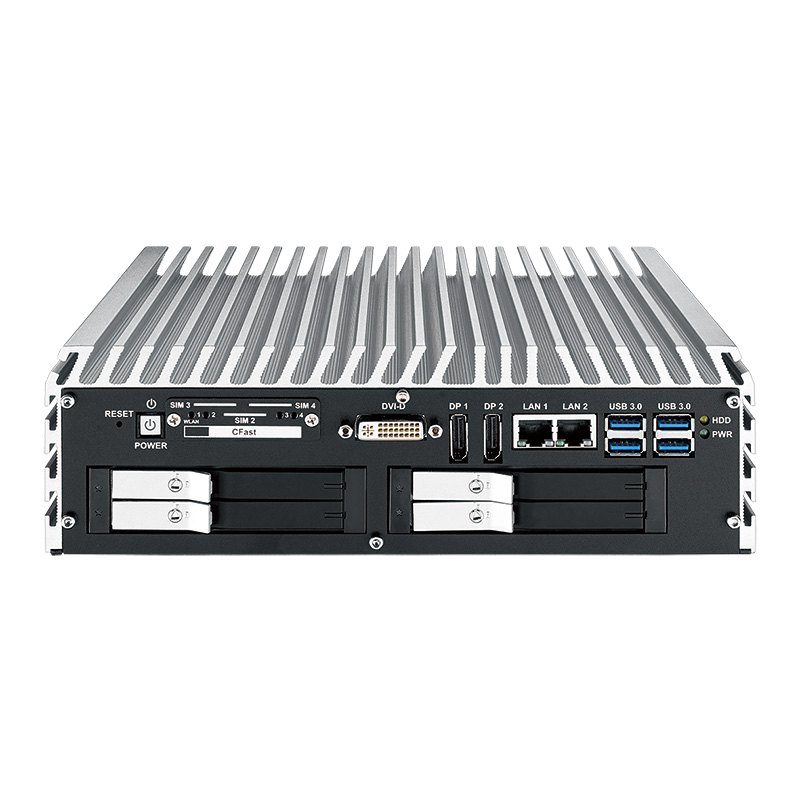

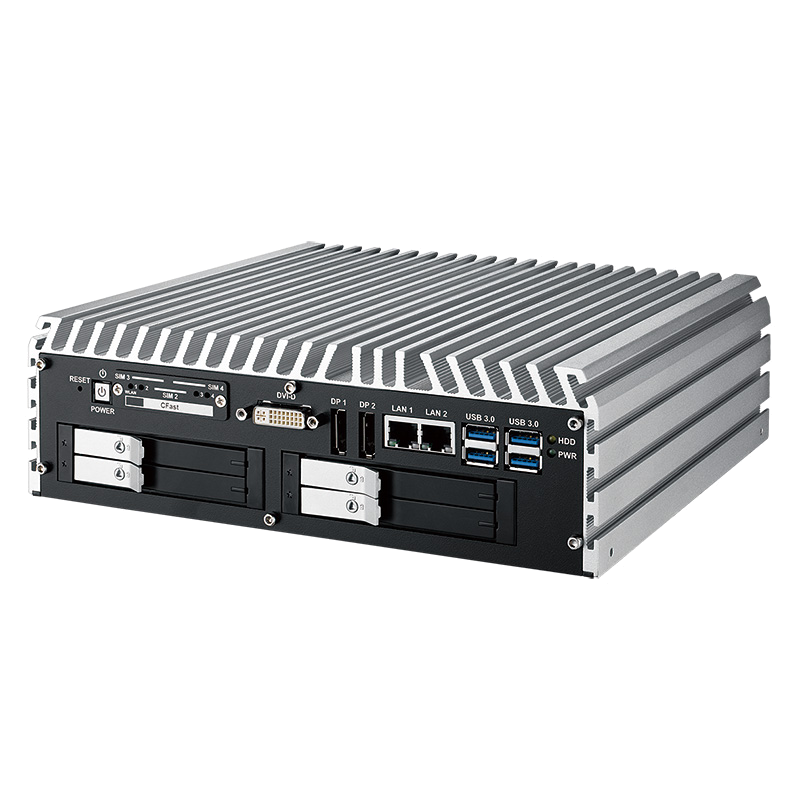

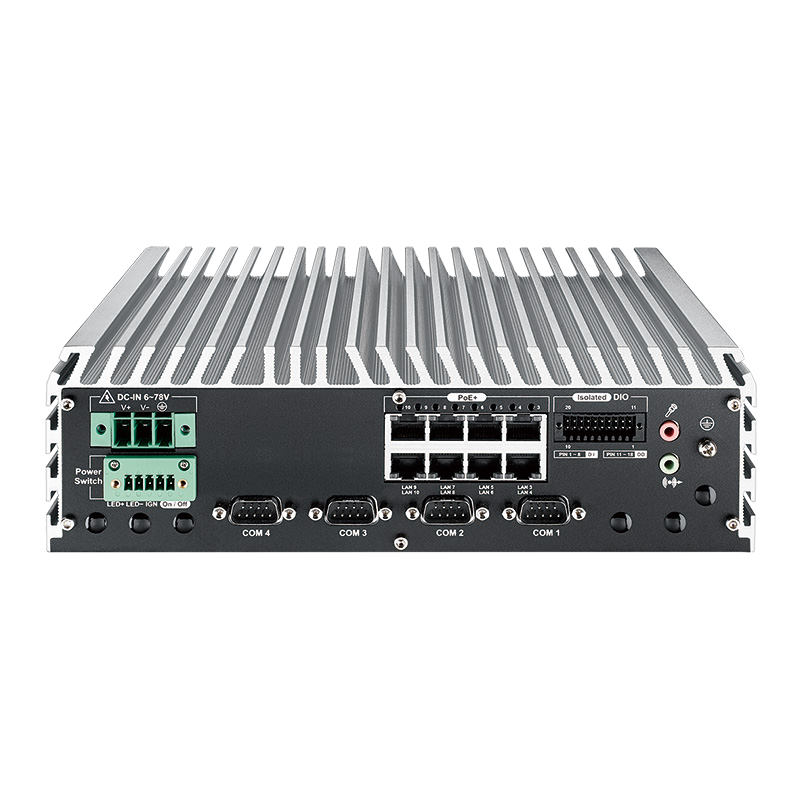

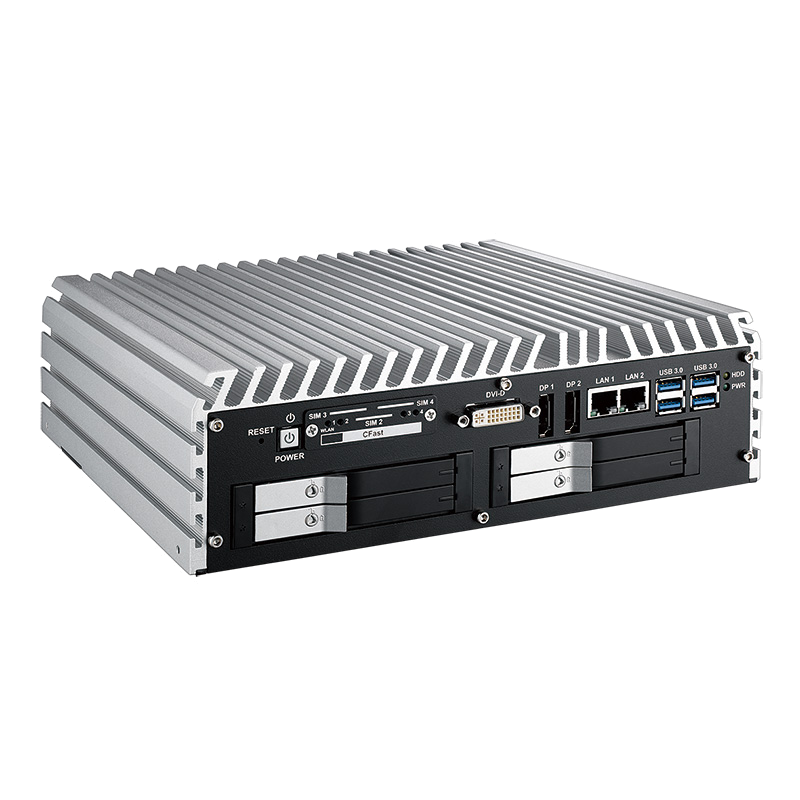

IVH-9008-PoER
Box PC Fanless
Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3, Intel® CM236, 2 DDR4 2133MHz SO-DIMM, up to 32GB, 10 LAN, 4 x COM, 5 x USB, 4 Mini PCIe
Caratteristiche generali
– Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3
– Intel® CM236
– 2 DDR4 2133MHz SO-DIMM, up to 32GB
– 10 LAN, 4 COM, 4 USB 3.0, 1 USB 2.0, 4 Mini PCIe
Caratteristiche Tecniche
| System | |
| Processor | Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 Processor (Skylake-H) |
| Chipset | Intel® CM236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2133MHz SO-DIMM, up to 32GB |
| I/O Interface | |
| Serial | 4 COM RS-232/ 422/ 485 |
| USB | 4 USB 3.0 (External) |
| 1 USB 2.0 (Internal) | |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| GPIO | 16 GPIO |
| LED | Power, HDD, Wireless, PoE |
| SIM Card | 4 SIM Card Socket (3 External, 1 Internal) |
| Expansion | |
| Mini PCIe | 1 Mini PCIe Socket for PCIe/ USB/ Internal SIM Card/Optional mSATA |
| 3 Mini PCIe Socket for PCIe/ USB/ External SIM Card | |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor | Intel® HD Graphics P530/ 530 |
| Display Memory | Shared Memory, up to 1.7GB |
| Interface | DVI-D : Up to 1920 x 1200 @ 60Hz |
| DisplayPort 1 : Up to 4096 x 2304 @ 60Hz | |
| DisplayPort 2 : Up to 4096 x 2304 @ 60Hz | |
| Storage | |
| SATA | 6 SATA III (6Gbps) |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| StorageDevice | 1 CFast Socket, Push-in/ Push-out Ejector |
| 4 Front-access 2.5″SSD/ HDD Tray | |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219 Gigabit LAN supports iAMT |
| LAN 2 | Intel® I210 Gigabit LAN |
| PoE | |
| LAN 3 to 10 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Power | |
| Power Input | 6V to 78V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode |
| Remote Switch | 5-pin Terminal Block : On, Off, IGN, LED+, LED |
| Surge Protection | Up to 200V/1ms Transient Power |
| UPS | Supported (Optional) |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW | Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| GPS | Onboard GPS Module (Optional) |
| Software Support | |
| OS | Windows 10, Windows 8, Windows 7, Linux |
| Mechanical | |
| Dimensions (W x L x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 4.2 kg (9.26 lb) |
| Mounting | Wallmount by mounting bracket |
| 2U Rackmount (Optional) | |
| Environment | |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| Shock | IEC 60068-2-27 |
| SSD : 50G @ wallmount, Half-sine, 11ms | |
| Vibration | IEC 60068-2-64 |
| SSD : 5Grms, 5Hz to 500Hz, 3 Axis | |
| EMC | CE, FCC, EN 50155, EN 50121-3-2 |
Ordering Informations
| IVH-9008-PoER505M | IVH-9000, Quad Core Intel® Xeon® E3-1505M v5 In-Vehicle Fanless Embedded System, 10 GbE LAN with 8 PoE+, 4 Front-access SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO |
| IVH-9008-PoER820Q | IVH-9000, Quad Core Intel® Core™ i7-6820EQ In-Vehicle Fanless Embedded System, 10 GbE LAN with 8 PoE+, 4 Front-access SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO |
| IVH-9008-PoER440Q | IVH-9000, Quad Core Intel® Core™ i5-6440EQ In-Vehicle Fanless Embedded System, 10 GbE LAN with 8 PoE+,4 Front-access SSD Tray, 4 COM, 4 USB 3.0, 4 SIM, Isolated DIO, 16 GPIO |
