SBC ATX

CS630-Q370

Solution provider for Embedded and Industrial PC

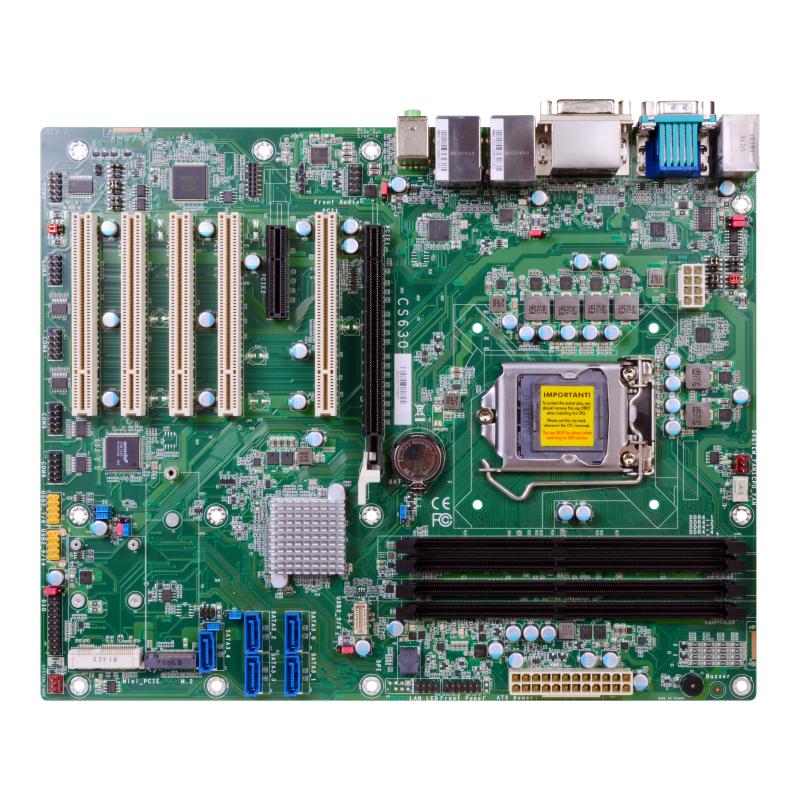

CS630-Q370

SBC INDUSTRIALI

8th Generation Intel® CoreTM Processors, LGA 1151 Socket
Intel® Q370 Chipset
Four 288-pin DIMM up to 64GB Dual Channel DDR4 2400/2666MHz
1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 3), 5 PCI, 1 x mPCIe
1 M.2 M key (support Optane Memory)
2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0



Caratteristiche generali

-8th Generation Intel® CoreTM Processors, LGA 1151 Socket
-Intel® Q370 Chipset
-Four 288-pin DIMM up to 64GB Dual Channel DDR4 2400/2666MHz
-1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 3), 5 PCI, 1 x mPCIe
-1 M.2 M key (support Optane Memory)
-2 Intel GbE, 6 COM, 4 USB 3.1 Gen1, 2 USB 3.1 Gen2, 6 USB 2.0
-LPC EXT-RS232/485 module extends additional 4 COM ports

Caratteristiche Tecniche
Processor 8th Generation Intel® CoreTM Processors, LGA 1151 Socket
Chipset Intel® Q370 Chipset
Memory Four 288-pin DIMM up to 64GB Dual Channel DDR4 2400/2666MHz
BIOS Insyde SPI 256Mbit
Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA VGA: resolution up to 1920×1200 @ 60Hz
1 x DVI-I (DVI-D signal) DVI-D: resolution up to 1920×1200 @ 60Hz
1 x DP++ DP++: resolution up to 4096×2160 @ 24Hz
Dual Displays VGA + DVI-I (DVI-D signal) + DP++
Interface 1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
5 x PCI
1 x mPCIe (support mSATA)
1 x M.2 M key (PCIe x4) (support Optane Memory)
Audio Codec Realtek ALC888
Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM Lan Phy with iAMT (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

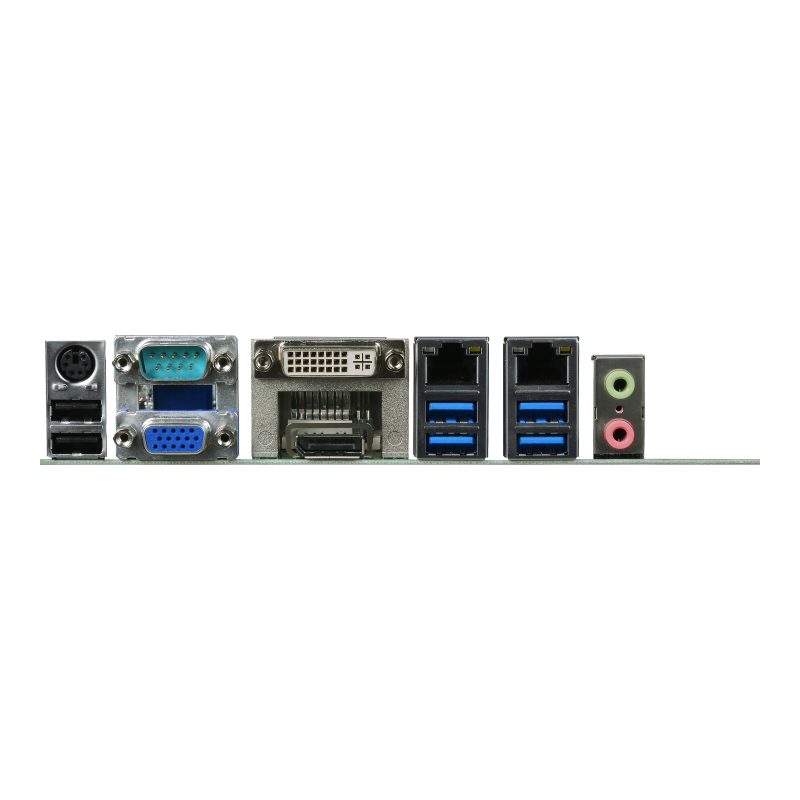

Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.1 (Gen1)
2 x USB 2.0
Serial 1 RS-232/422/485 (RS-232 w/power) (DB-9)
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio 1 x Line-out, 1 x Mic-in, 1 x Line-in (available upon request)
Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 2 x USB 3.1 Gen2 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch)
Audio 1 x S/PDIF
1 x Front Audio Header
SATA 5 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
TPM Infineon TPM2.0/1.2 (optional)
Type ATX
Connector 8-pin ATX 12V power 24-pin ATX power
Consumption TBD
RTC Battery CR2032 Coin Cell
Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 18.04.
Temperature Operating: 0 to 60°C Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF TBD
Dimensions ATX Form Factor 305mm (12″”) x 244mm (9.6″”)
Height PCB: TBD Top Side: TBD Bottom Side: TBD

Contattaci per maggiori informazioni su ATX CS630-Q370
