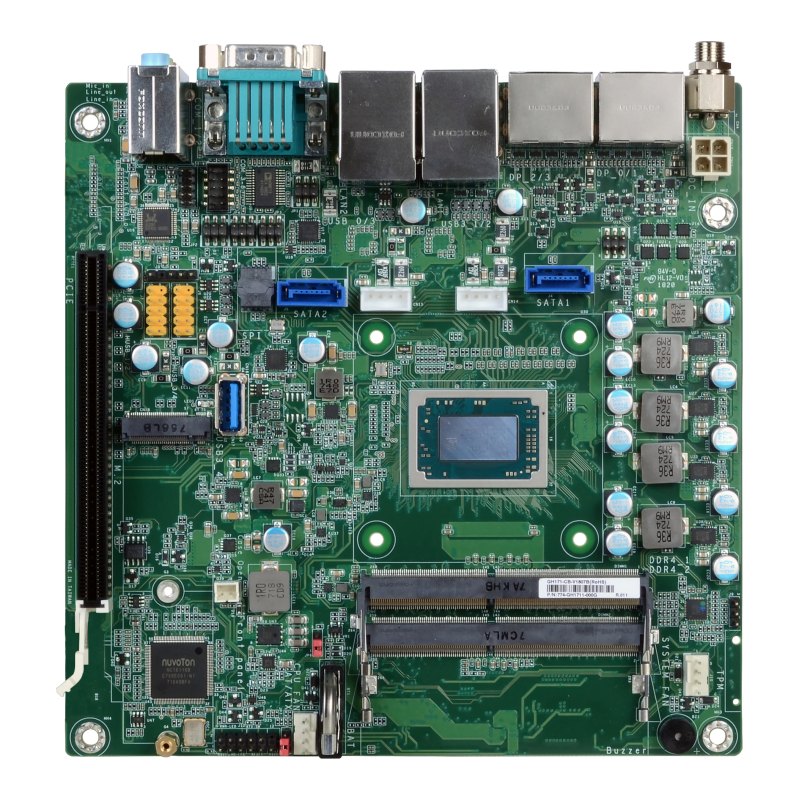

SBC Mini-ITX

GH171

Solution provider for Embedded and Industrial PC
Caratteristiche generali

-2 DDR4 ECC SODIMM up to 32GB
-Four independent displays:
-DP++
-DP++ resolution up to 4096×2160 @ 60Hz
-Expansion: 1 PCIe x16, 1 M.2 M Key
-Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0

Caratteristiche Tecniche
SYSTEM
Processor AMD® Ryzen Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen Embedded R1000 series
Memory Two 260-pin SODIMM up to 32GB (ECC Compatible)
Dual Channel DDR4 up to 3200MHz
BIOS AMI BIOS
GRAPHICS
Controller AMD® Radeon Vega Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 4 x DP++
DP++: resolution up to 4096×2160 @ 60Hz
EXPANSION
Interface 1 x PCIe x16 (x8 signal), (x4 signal with R1000)
1 x M.2 M Key (2280 PCIe x4), (x2 signal with R1000)
Audio
Audio Codec Realtek Audio Codec with 5.1 Channel Support
ETHERNET
Controller 2 x Realtek Ethernet LAN Controller
REAR I/O

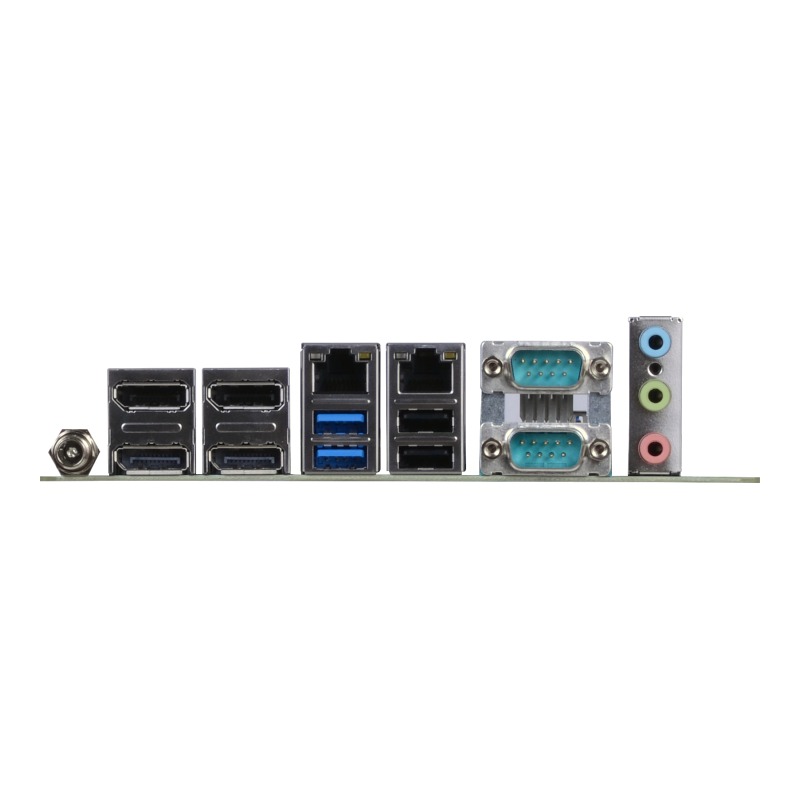

Ethernet 2 x GbE (RJ-45)
Serial 1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB 2 x USB 3.0
2 x USB 2.0
Display 4 x DP++ (V1000)
3 x DP++ (R1000)
Audio 1 x Mic-in
1 x Line-in
1 x Line-out
INTERNAL I/O
Serial 4 x RS-232 (2.0mm pitch) (TX/RX signal only)
USB 4 x USB 2.0 (2.54mm pitch)
1 x Vertical Type A USB 3.0 (V1000), 1 x Vertical Type A USB 2.0 (R1000)
Audio 1 x S/PDIF
1 x Audio (Mic-in/Line-out)
SATA 2 x SATA 3.0 (up to 6GB/s) with 7-pin VCC support
2 x SATA Power for 2.5″/3.5″ HDD/SSD
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM TPM1.2/2.0
POWER
Type Single 12V DC
Connector Vertical Type Connector (4-pin)
DC-in Jack or Right Angle Connector (4-pin) (optional)
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT
OS Support Windows 10
Ubuntu 18.04LTS
ENVIRONMENT
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF TBD
MECHANICAL FEATURES
Dimensions Mini-ITX Form Factor
170mm (6.7″) x 170mm (6.7″)
PACKING LIST
Packing list 1 GH171 motherboard
1 I/O shield

Contattaci per maggiori informazioni su Mini-ITX GH171
