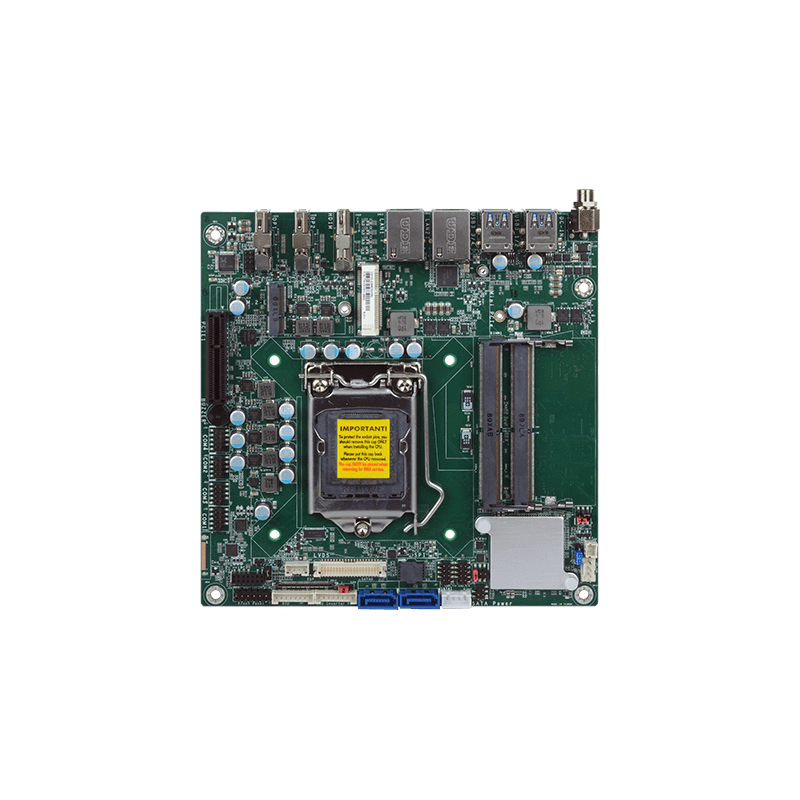

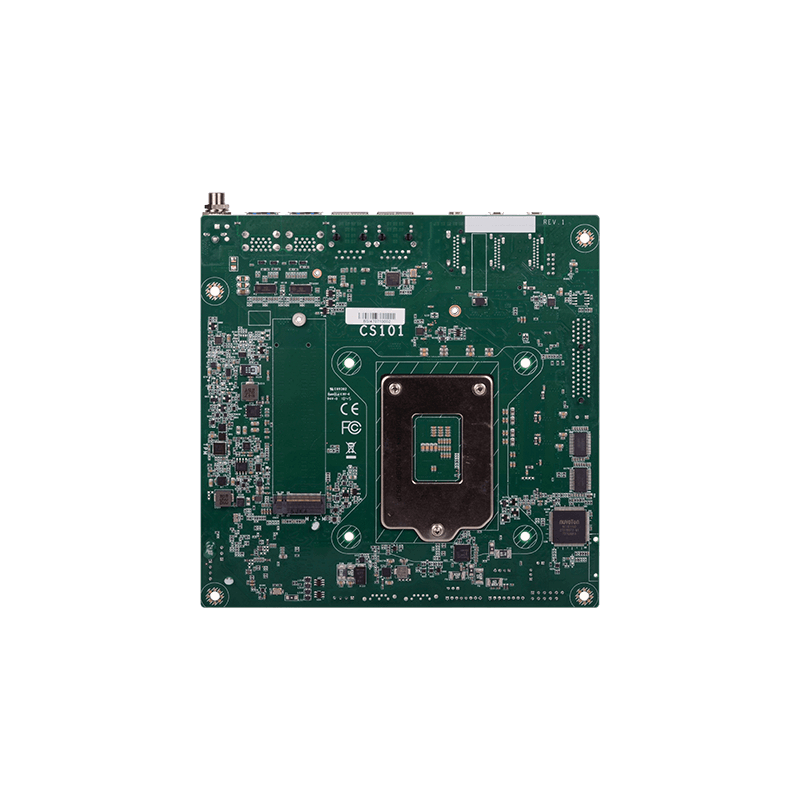

SBC Mini-ITX

CS101-Q370

Solution provider for Embedded and Industrial PC
Caratteristiche generali

-2 DDR4 2666MHz SODIMM up to 32GB
-Three independent displays:
LVDS + HDMI + DP++
-DP++ resolution supports up to 4096×2304 @ 60Hz
-Multiple Expansions:
1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1
M.2 2230 E Key
-Storage: 2 SATA 3.0
-Rich I/O:
2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0

Caratteristiche Tecniche
SYSTEM
Processor 8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W
Intel® Xeon E-2176G Processor
Intel® Core™ i7-8700 Processor
Intel® Core™ i5-8500 Processor
Intel® Core™ i3-8100 Processor
Intel® Pentium G5400 Processor
Intel® Celeron G4900 Processor
Chipset Intel® Q370/C246 Chipset
Memory Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz (C246 support ECC)
BIOS AMI SPI 128Mbit
GRAPHICS
Controller Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
Feature OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920×1200 @ 60Hz
eDP: resolution up to 4096×2304 @ 60Hz
HDMI: resolution up to 4096×2160 @ 60Hz
DP1.2: resolution up to 4096×2304 @ 60Hz
Triple Displays N/A
Dual Displays/ Triple Displays DP+HDMI+LVDS/eDP
DP+DP+HDMI
DP+DP+LVDS/eDP
EXPANSION
Interface 1 x PCIe x4 (Gen 3)
1 x Full-size Mini PCIe (colay mSATA)
1 x M.2 2280 M Key for storage (PCIe)
1 x M.2 2230 E Key for BT/Wifi (USB/PCIe)
AUDIO
Audio Codec Realtek ALC888S-VD2-GR
ETHERNET
Controller 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)

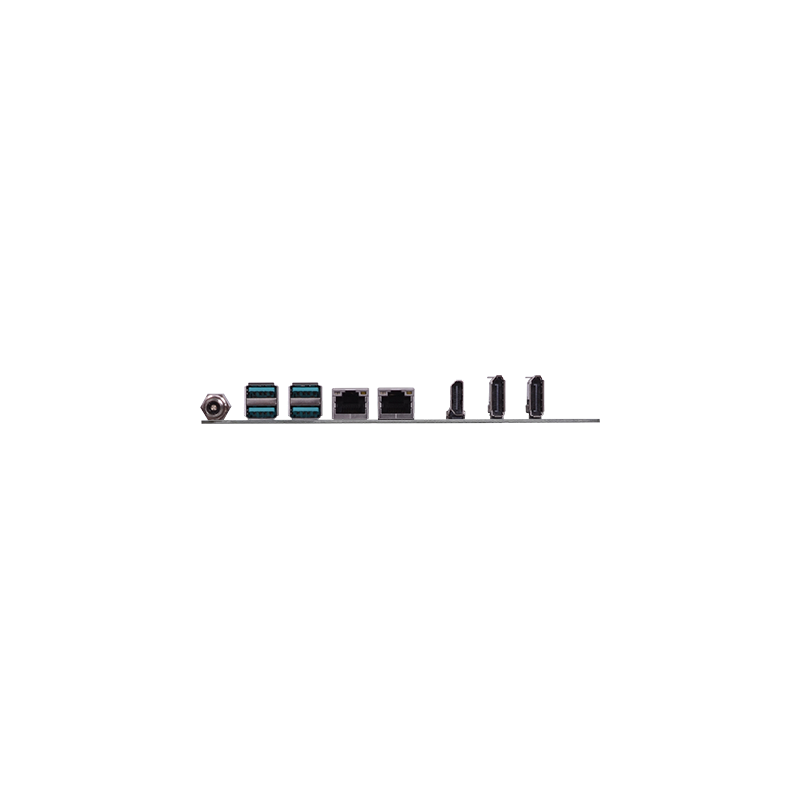

REAR I/O
Ethernet 2 x GbE (RJ-45)
Serial N/A
USB 4 x USB 3.1 Gen2 Type A Connector
PS/2 N/A
Display 1 x HDMI
2 x DP++
Audio N/A
INTERNAL I/O
Serial 2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (RS-232 w/ power)(2.0mm pitch)
USB 4 x USB 2.0
Display 1 x LVDS Connector
1 x eDP (available upon request)
Audio 1 x Front Audio
SATA 2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO 1 x 8-bit DIO
LPC N/A
SMBus 1 x SMBus
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM fTPM 2.0, dTPM 2.0 (opt.)
POWER
Type 12V DC-in
Connector DC jack colay 4 pins power connector (opt.)
Consumption TBD
RTC Battery CR2032 Coin Cell
OS Support
OS Support N/A
Microsoft Windows 10 IoT Enterprise 64-bit
Linux Linux: Ubuntu 18.04
ENVINROMENT
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL
Dimensions Mini-ITX Form Factor
170mm (6.7″) x 170mm (6.7″)
Height PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
PCB: 1.6mm Top Side: 20mm, Bottom Side: 3mm

Contattaci per maggiori informazioni su Mini-ITX CS101-Q370
