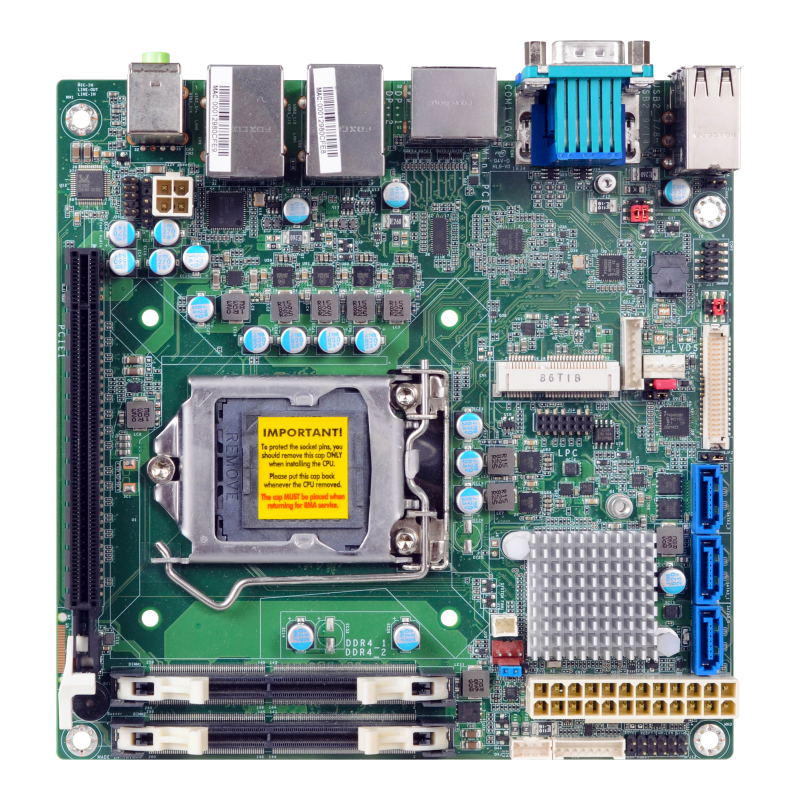

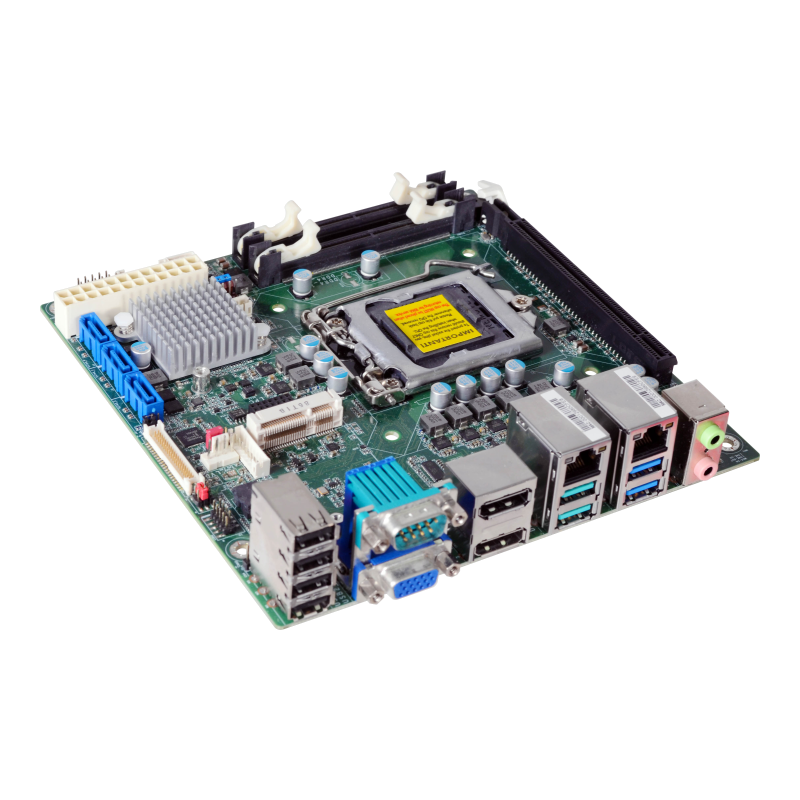

SBC Mini-ITX

CS100-C246

Solution provider for Embedded and Industrial PC
Caratteristiche generali

-8th Gen Intel® Core™ with Intel® C246
-2 DDR4 SODIMM up to 32GB
-Three independent displays: LVDS + VGA + DP++
-Multiple Expansions: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe
-Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0
-15-Year CPU Life Cycle Support

Caratteristiche Tecniche
SYSTEM
Processor 8th Generation Intel® Core Processors, LGA 1151 Socket, TDP up to 80W
Intel® Xeon E-2176G Processor
Intel® Core i7-8700 Processor
Intel® Core i5-8500 Processor
Intel® Core i3-8100 Processor
Intel® Pentium G5400 Processor
Intel® Celeron G4900 Processor
Chipset Intel® Q370/C246/H310 Chipset
Memory Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400/2666MHz
BIOS AMI SPI 128Mbit
GRAPHICS
Controller Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
Feature OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1 x LVDS
1 x VGA
2 x DP++ LVDS: resolution up to 1920×1200 @ 60Hz
VGA: resolution up to 1920×1200 @ 60Hz
DP: resolution up to 4096×2304 @ 60Hz
Triple Displays LVDS + VGA + DP++
EXPANSION
Interface
Q370/C246 1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (& mSATA)
H310 1 x PCIe x16 (Gen 3)
1 x mSATA
AUDIO
Audio Codec Realtek ALC888S-VD2-GR
Ethernet
Controller Q370: 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)
H310/C246: 1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)

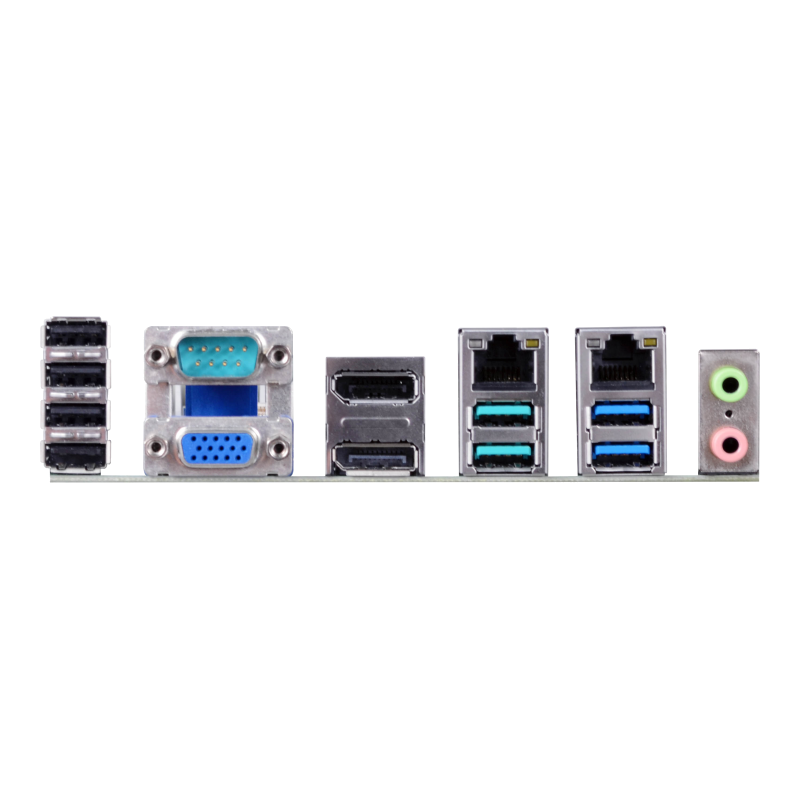

REAR I/O
Ethernet 2 x GbE (RJ-45)
Serial 1 x RS-232 (DB-9)
USB
Q370/C246 2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
4 x USB 2.0
H310 4 x USB 3.1 Gen1
4 x USB 2.0
Display 1 x VGA
2 x DP++
Audio 1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
INTERNAL I/O
Serial 1 x RS-232 (RS-232 w/ power)(2.0mm pitch)
Display 1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio 1 x S/PDIF
SATA 3 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5
DIO 1 x 8-bit DIO
LPC 1 x LPC (support LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM dTPM 2.0 (optional)
POWER
Type ATX
Connector 4-pin ATX 12V power
24-pin ATX power
Consumption TBD
Battery CR2032 Coin Cell
OS SUPPORT
OS Support Windows 10 IoT Enterprise 64-bit
Linux: Ubuntu 18.04
ENVIRONMENT
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL FEATURES
Dimensions Mini-ITX Form Factor
170mm (6.7″) x 170mm (6.7″)
Height PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
STANDARDS AND CERTIFICATIONS
Certifications CE, FCC Class B, RoHS
PACKING LIST
Packing List 1 CS100 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports)
1 Serial ATA data with power cable (Length: 300mm)
1 DVD
