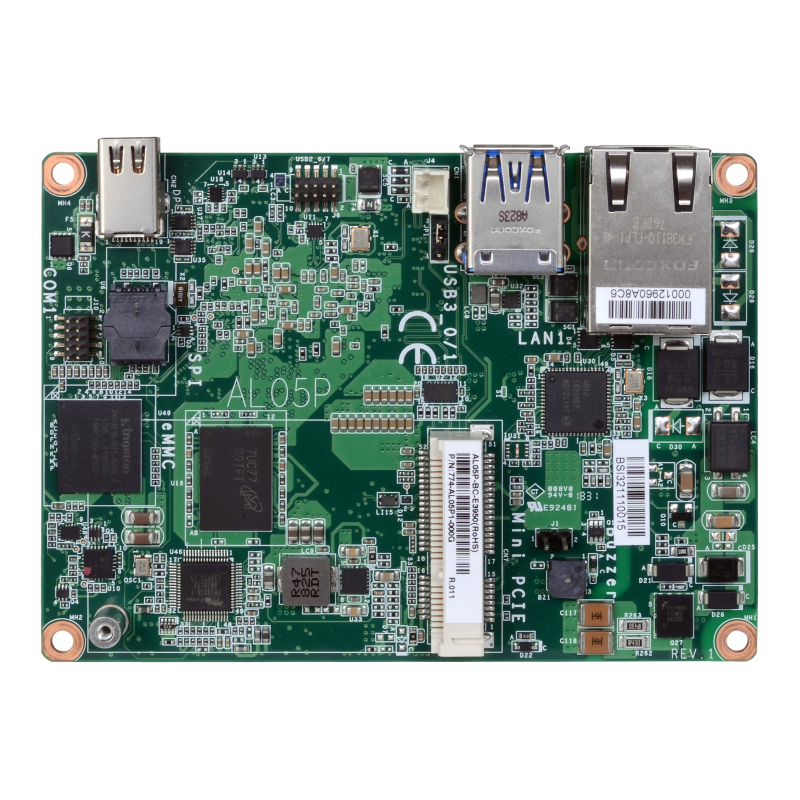

SBC Pico-ITX

AL05P

Solution provider for Embedded and Industrial PC
Caratteristiche generali
  • Intel® Atom™/Pentium®/Celeron® Processor E3900
  • Support LPDDR4 memory down up to 4GB
  • Rich I/O: 1 LAN, 1 COM, 2 USB 3.0, 2 USB 2.0
  • Expansion and Storage: 1 Mini PCIe, 1 SMBus, 1 eMMC
  • PoE single board solution support PoE PD 48VDC
Caratteristiche Tecniche
SYSTEM
Processor Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory SDRAM Memory Down up to 4GB – Single Channel DDR4 2400MHz
BIOS Insyde SPI 128Mbit (supports UEFI boot only)
GRAPHICS
Controller Intel® HD Graphics
Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display 1 x Mini DP++ – Mini DP++: resolution up to 4096×2160 @ 60Hz
EXPANSION
Interface 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
Storage
Storage 1 x 16GB/32GB/64GB eMMC
ETHERNET
Controller 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)
REAR I/O
Ethernet 1 x GbE (RJ-45)
USB 2 x USB 3.1 Gen1
Display 1 x Mini DP++
INTERNAL I/O
Serial 1 x RS-232/422/485 (1.27mm pitch)
USB 2 x USB 2.0 (1.27mm pitch)
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM fTPM 2.0
POWER
Type 48VDC PoE
Connector PoE LAN
RTC Battery CR2032 Coin Cell
OS SUPPORT (UEFI Only)
Microsoft Windows 10 IoT Enterprise 64-bit
Linux Linux: Ubuntu 16.04
ENVIRONMENT
Temperature Operating: 0 to 60°C, -20 to 70°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% – RH Storage: 5 to 90% RH
MECHANICAL
Dimensions 2.5″ Pico-ITX Form Factor – 100mm (3.94″) x 72mm (2.83″)
Height PCB: 1.6mm – Top Side: 15mm

Contattaci per maggiori informazioni su Pico-ITX AL05P
