Caratteristiche Tecniche
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
|---|---|
| Chipset | – |
| RAM | SO-DIMM, Support DDR3L 1333/1600/1866 MHz, Max. up to 8GB |
| LAN | 2 x RJ45, 10/100/1000 Mbps |

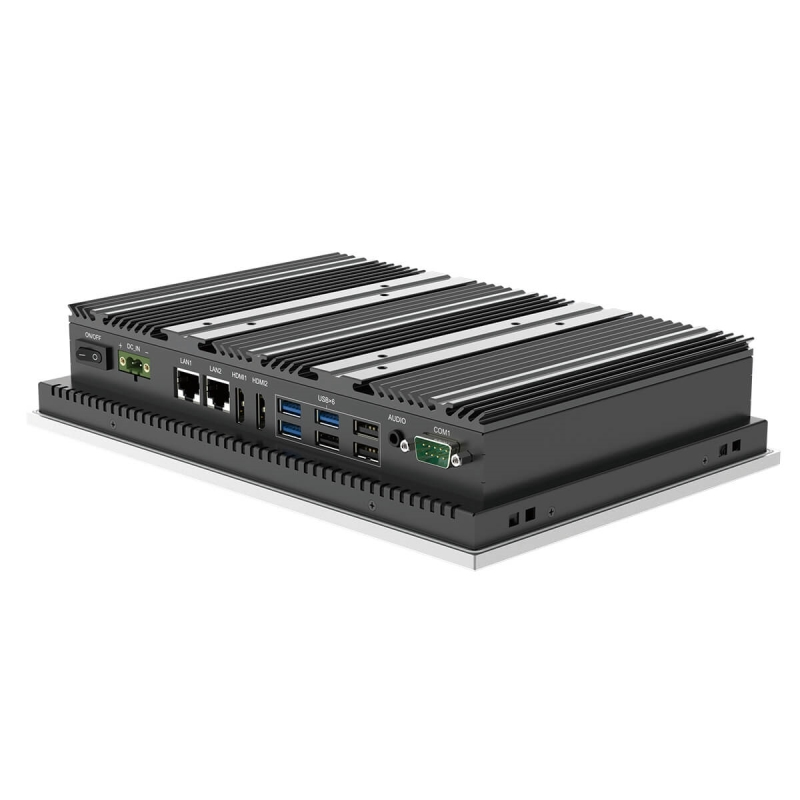

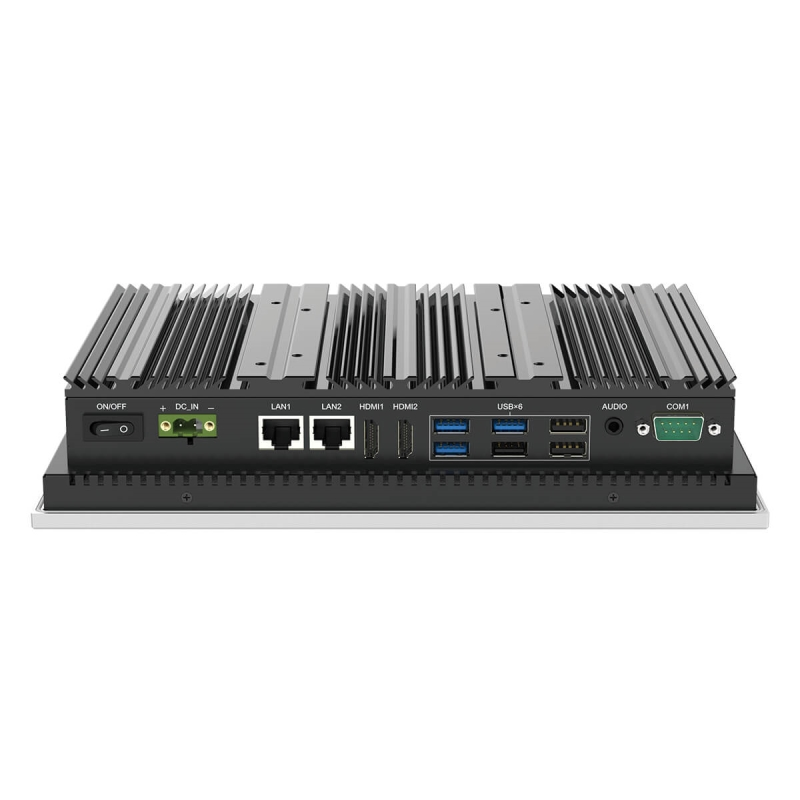

| I/O | 3 x USB3.0, 3 x USB2.0, 1 x RS232 (Optional RS485), 2 x HDMI |
| Storage | 1 x M.2 2242 Key-B (SATA) SSD |
| Expansion | 1 x M.2 Key-B 3042/3052 slot, 1 x M.2 2230 Key-E slot |
| Display Size and Form Factor | 216.96 x 135.6 |
| Resolution | 1280 x 800 px |
| Brightness | 350 nits |
| Touch | PCAP |
| Mechanicals | IP65 Front Panel,VESA Mount, Panel Mount |
| Operating Temperature | -20°C to 70°C |
| Power | DC 12V (Optional DC 9~36V) |
| Notes | CE/ROHS/FCC Class A |
