Caratteristiche Tecniche
| CPU |
Onboard 8th Gen Intel Core i3-8145UE Processor (2C/4T,2.2GHz) Intel Core i5-8365UE Processor (4C/8T,1.6GHz) |
|---|---|
| Chipset | Intel SoC |
| RAM | 1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
| LAN | 2 x GbE LAN RJ-45 |

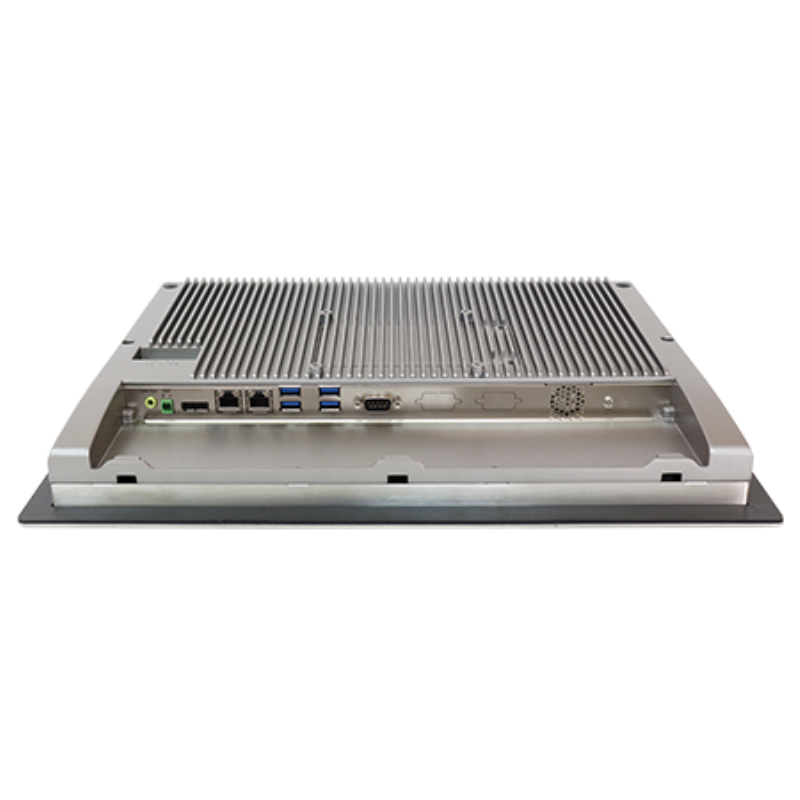

| I/O | 4 x USB 3.0 type A; 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1); 1 x RS-232(Tx,Rx)/422/485(COM2) by Y Cable; 1 x DP |
| Storage | 1 x M.2 M-Key slot (Support PCIe/SATA3; 2242/2280, Default 2242) |
| Expansion | 1 x Mini-PCIe slot (full size), 1 x Nano SIM Card Holder |

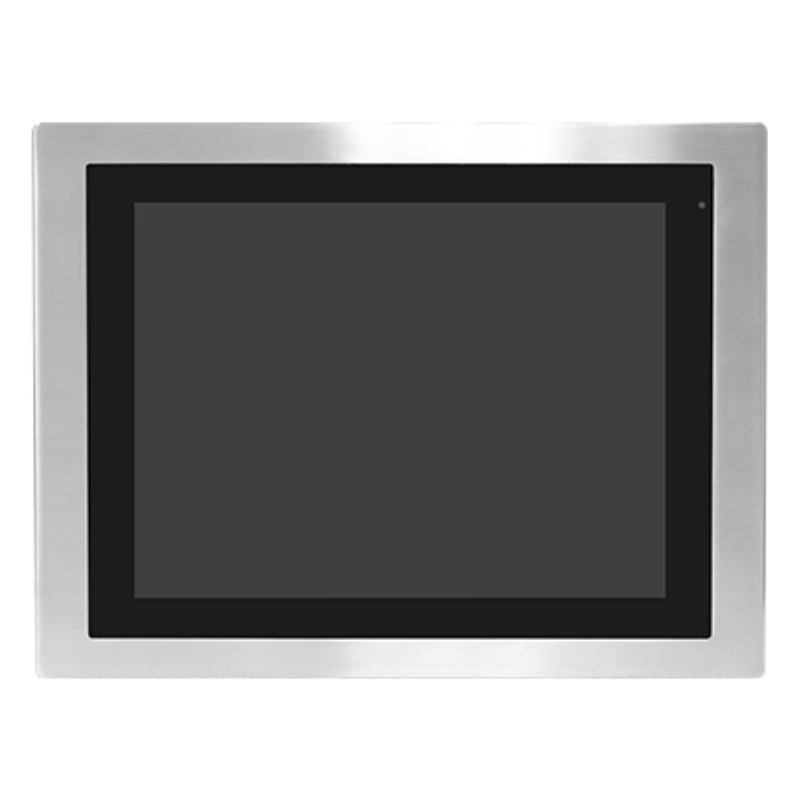

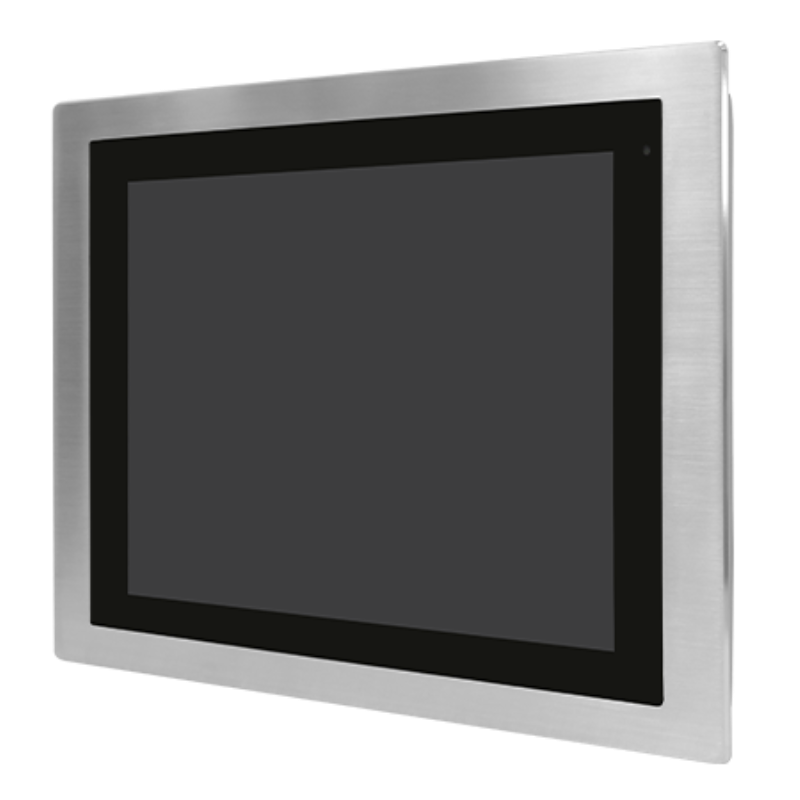

| Display Size and Form Factor | 15″ TFT-LCD |
| Resolution | 1024 x 768 px |
| Brightness | 300 cd/m2 |
| Touch |
Projected Capacitive Touch (for BP model) Resistive Touch (for BR model |
| Mechanicals | SUS304 Stainless Steel Front Bezel (default); SUS316L Stainless Steel Front Bezel (for option); Aluminum Die-casting Back Cover; Panel Mount, VESA Mount 100 x 100; IP66/IP69K Compliant Front Bezel |
| Operating Temperature | 0°÷50˚C/ -20°÷60°C (option) |
| Power | DC 9÷36V |
| Notes | CE/FCC Class A / EN 1672-2 Compliant for P Model (optional) |
