Caratteristiche Tecniche
| CPU | Intel Tiger Lake i3-1115G4E dual core 2.20Ghz burst to 3.90Ghz or i5-1145G7E quad core 1.50Ghz burst to 4.10Ghz |
|---|---|
| Chipset | – |
| RAM | 2 x SO-DIMM up to 64GB DDR4 3200MHz |
| LAN | 1 x 1GbE; 1 x 2.5GbE LAN RJ-45 |

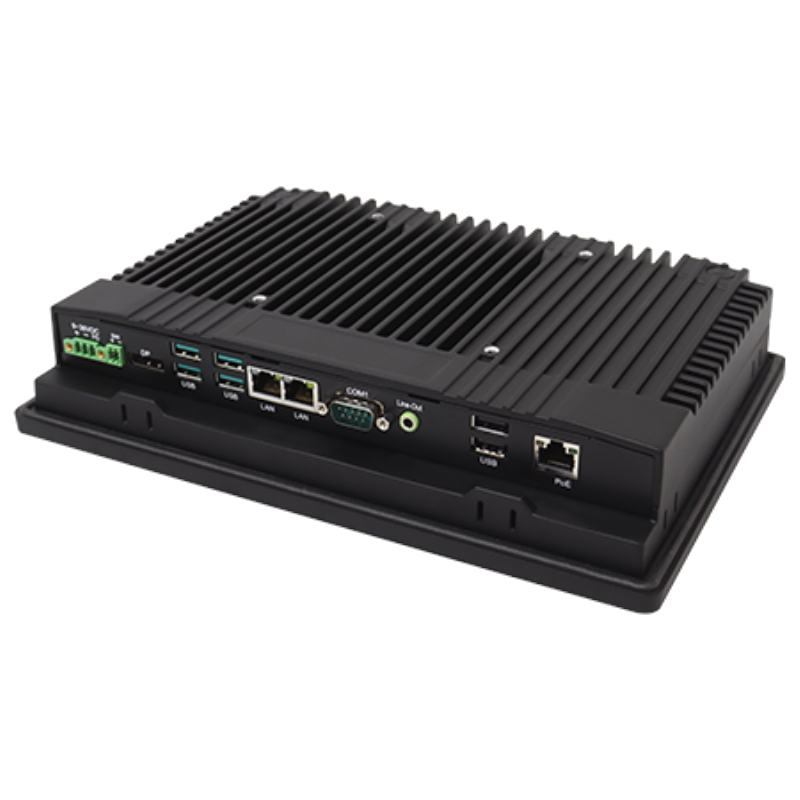

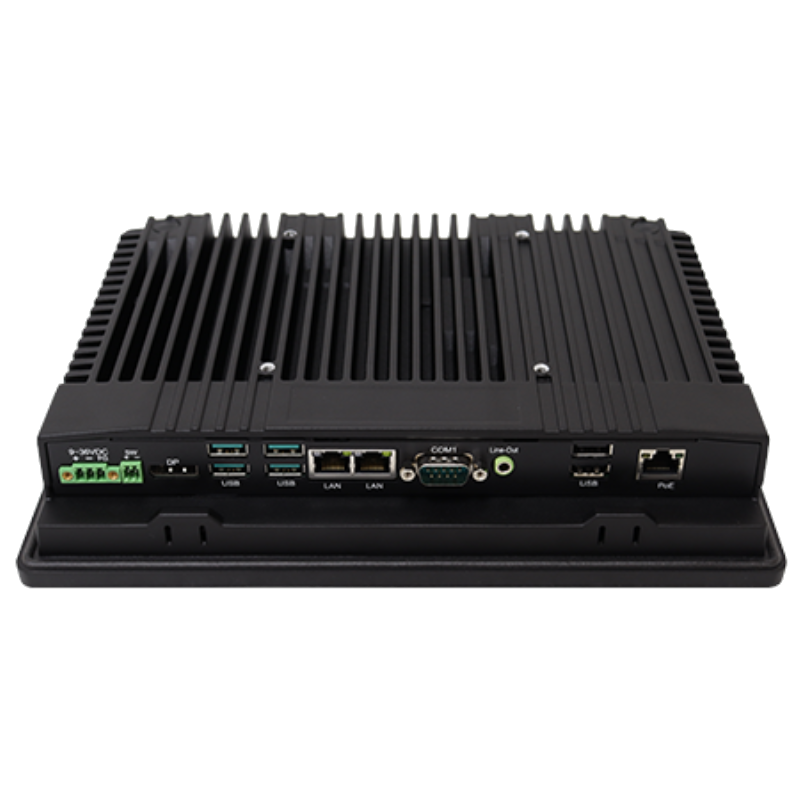

| I/O | 4 x USB 3.0 type A; 1 x DB9 including: 1 x RS-232 (COM1) or 1 x RS 232/422/485 (COM2) |
| Storage | 1 x M.2 M-Key 2280 (Support PCIe/SATA3) |
| Expansion | 1 x Mini-PCIe slot (full size); 1 x M.2 E key for Wifi/BT Module; 1 x Nano SIM slot |

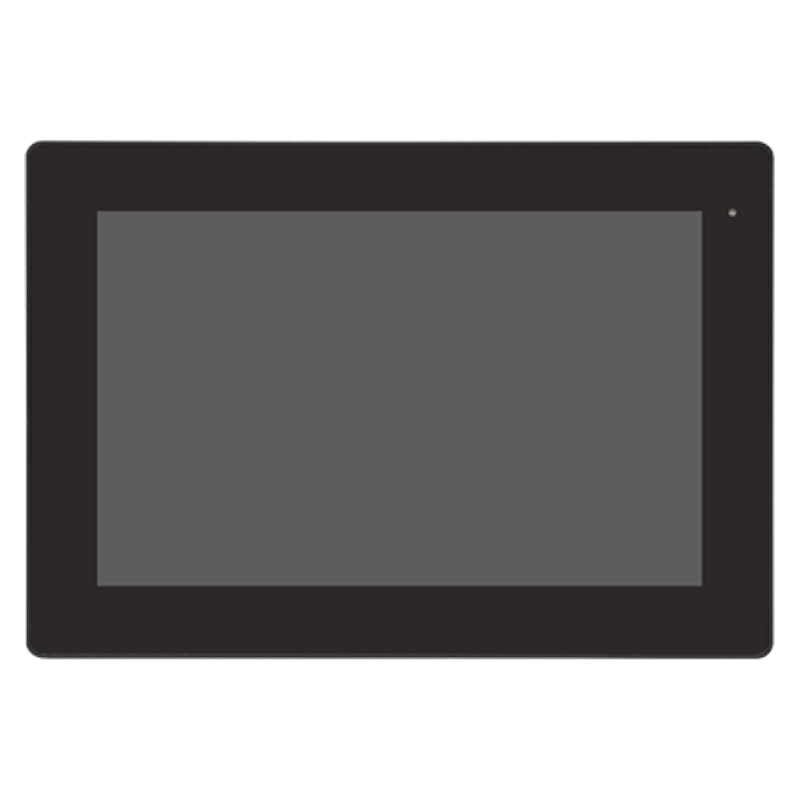

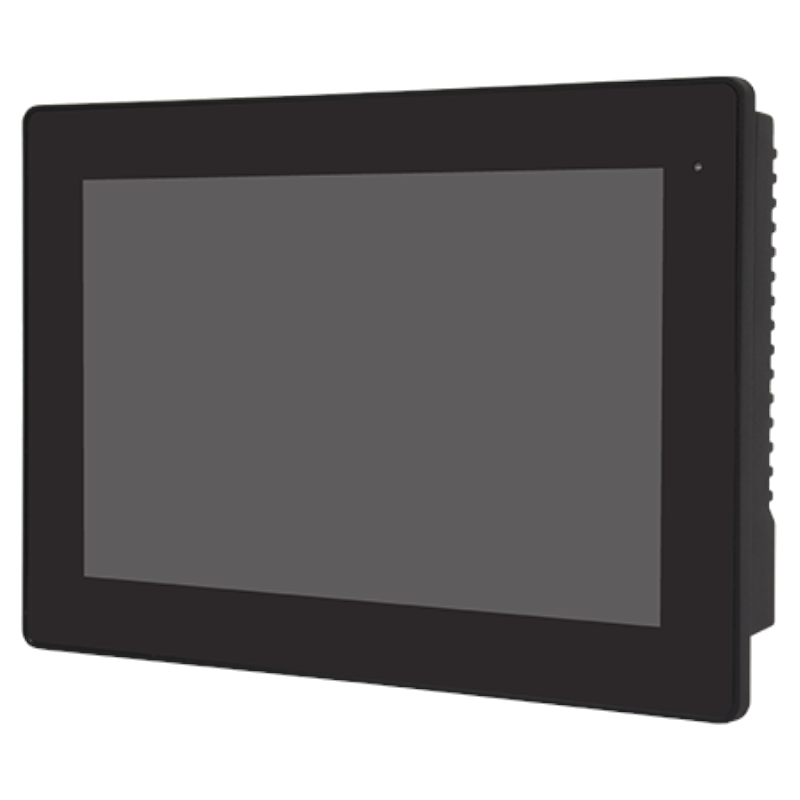

| Display Size and Form Factor | 10.1″, TFT-LCD |
| Resolution | 1280 x 800 px |
| Brightness | 350 cd/m2 |
| Touch | PCAP |
| Mechanicals | IP66 Compliant Front Bezel; VESA 100 x 100; Panel Mount |
| Operating Temperature | 0°C ÷ 50°C / -20°C ÷ 60°C (option) |
| Power | DC 9 ÷ 36V |
| Notes | CE/FCC Class A |
